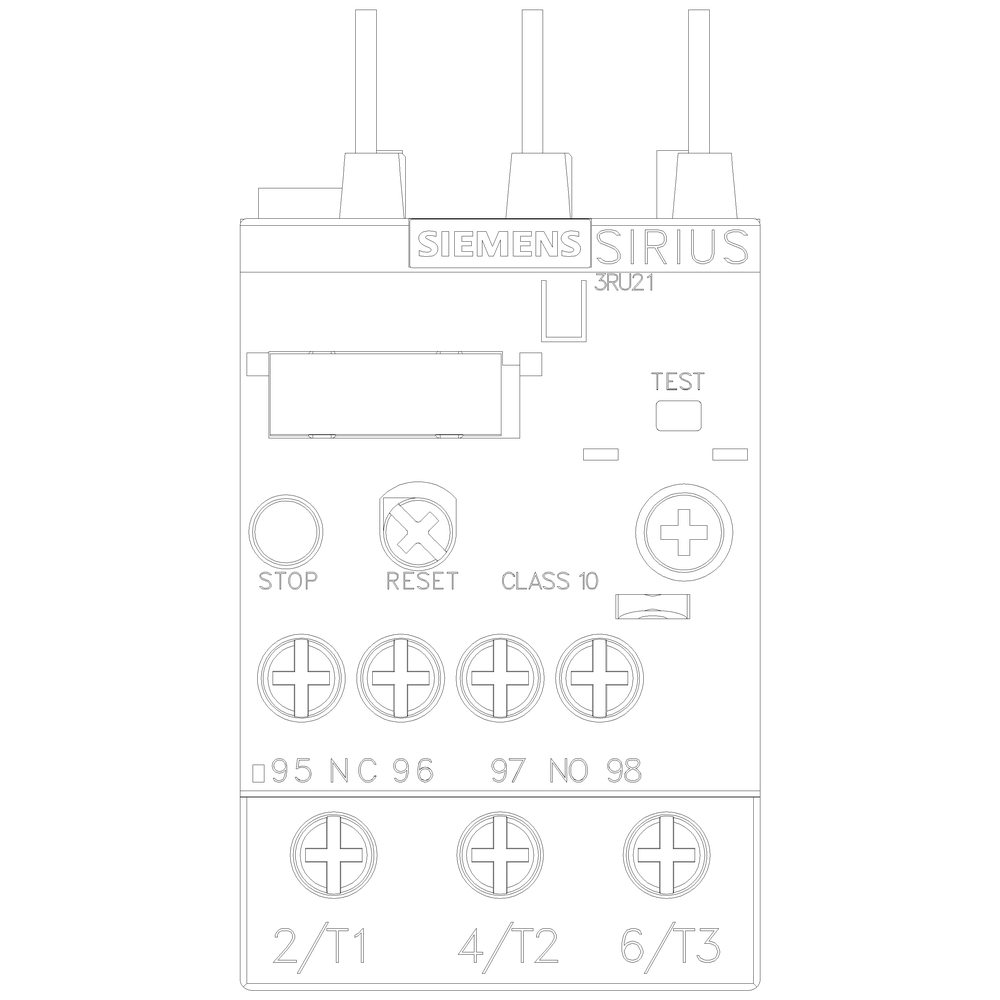

Siemens 3RU21264PB0 Thermal Overload Relay 690 VAC 30 to 36 Amp 3-Pole 1NO 1NC

Product Description

The SIEMENS 3RU21264PB0 is a thermal overload relay designed for motor protection. This Sirius series relay provides inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. Suitable for three-phase and single-phase AC & DC motors, it features screw terminals for main and auxiliary circuits.

• Protects against overload and phase failure
• Features screw terminals for secure connection
• Suitable for three-phase and single-phase AC & DC motors

Product Highlights

The SIEMENS 3RU21264PB0 thermal overload relay provides reliable motor protection with flexible and cost-effective design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21264PB0
• Country of Origin: Germany

Technical Specifications

• Type: 3RU2 thermal overload relay
• Brand: Siemens
• Class: Class 10
• Width: 2.300 in
• Height: 4.7 Inch
• Length: 4.2 Inch
• Amperage: 30-36 Amp
• Sub Brand: Sirius
• Applications: Protection of three phase and single phase AC & DC motors
• Terminal Type: Screw
• Contact Rating: B600,R300
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Country of Origin: Germany
• Temperature Rating: -20 to 70 degrees C
• Contact Configuration: 1NC 1NO
• Operating Temperature: -20 degrees C
