Product Description

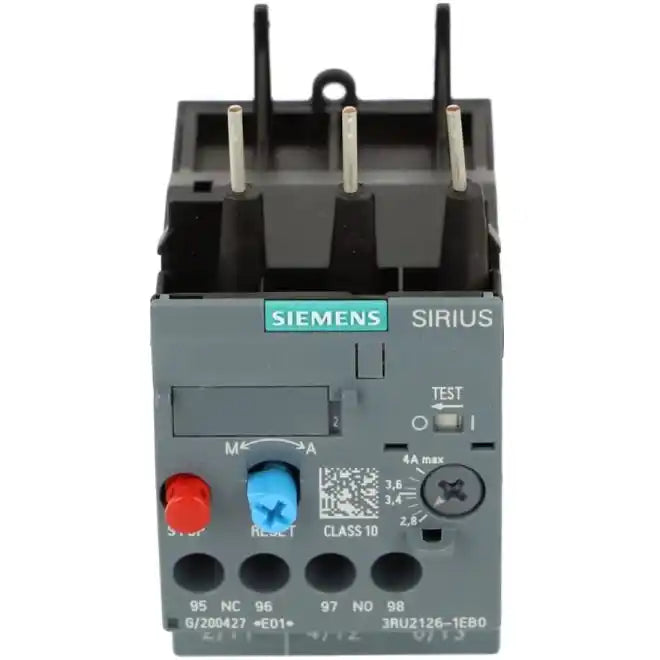

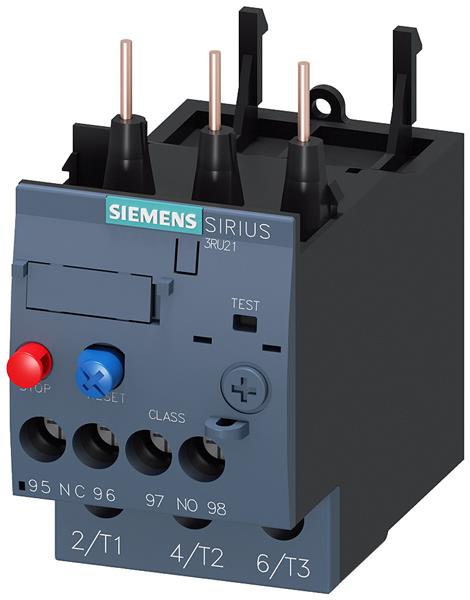

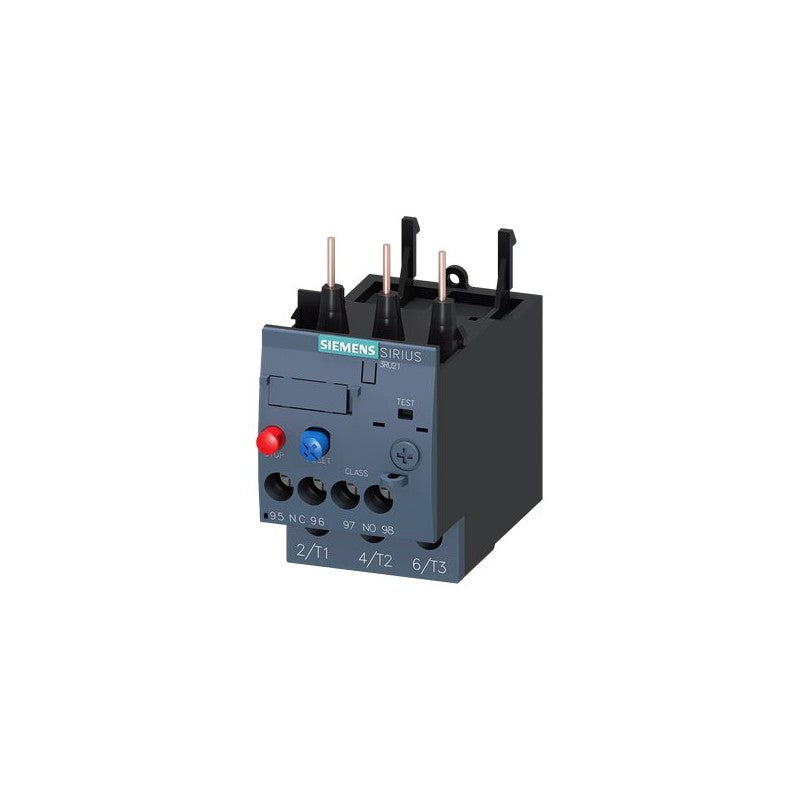

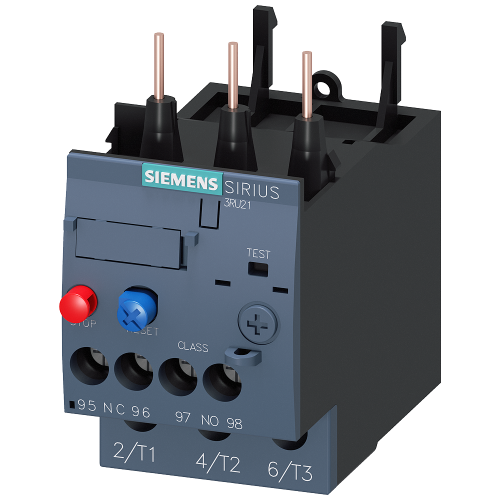

The SIEMENS 3RU2126-1EB0 thermal overload relay is designed to provide current-dependent protection for loads with normal starting against impermissibly high temperature rises due to overload or phase failure. This rise heats up the bimetal strips inside the device which then bend and as a result trigger the auxiliary contacts. The relay is reset manually or automatically after a recovery time has elapsed.
- Suitable for operation with frequency converters.
- Contact arrangement: 1 N/C + 1 N/O
- Manual and Auto Reset
Product Highlights
The SIEMENS thermal overload relay provides current-dependent protection for loads with normal starting against impermissibly high temperature rises due to overload or phase failure.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 3RU21261EB0
-
Country of Origin: DE
Technical Specifications
-
Brand: SIEMENS
-
Manufacturer Part Number: 3RU2126-1EB0
-
Manufacturer Alternate Number: 3RU21261EB0
-
Rated Voltage: 690V
-
Contact Arrangement: 1 N/C + 1 N/O
-
Rated Current: 4A
-
Number of Poles: 3
-
Size: Frame S0
-
Mounting Type: Contactor
-
Electrical Connection: Screw Terminals
-
Operating Temperature: -40 C - +70 C
-
IP Rating: IP20
-
Type: Thermal
-
Application: Protection of three phase and single phase AC & DC motors
-
Electricity Type: AC
-
Main Circuit Rating Current: 100 A
-
Frequency: 50 Hz
-
Phase: 3
-
Mounting: direct mounting any
-
Model Number: 3RU21261EB0
-
Amps Range: 2.8-4A
-
Auxiliary Contacts Included: 1NO/1NC
-
Compatible Contactor Series: SIRIUS Series
-
Compatible Contactors: Frame Size S0
-
Features: Manual And Auto Reset
-
Frame Size: S0
-
Includes Mounting Hardware: Not Applicable
-
Includes Thermal Units: Yes
-
Maximum Overload Relay Current Setting: 4A
-
Maximum Voltage Rating: 690V AC
-
Min. Overload Relay Amps Setting: 2.8A
-
Overload Protection Type: Thermal
-
Phase Loss Sensitivity: No
-
Relay Mounting Style: Direct To Contactor
-
Relay Style: IEC
-
Reset Type: Auto, Manual
-
Sensing Method: Thermal
-
Separate Mounting: Additional Items Needed, Yes
-
Terminal Connection Type: Screw Terminals
-
Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
-
Trip Class: Class 10
-
Wire Termination Type: Screw
