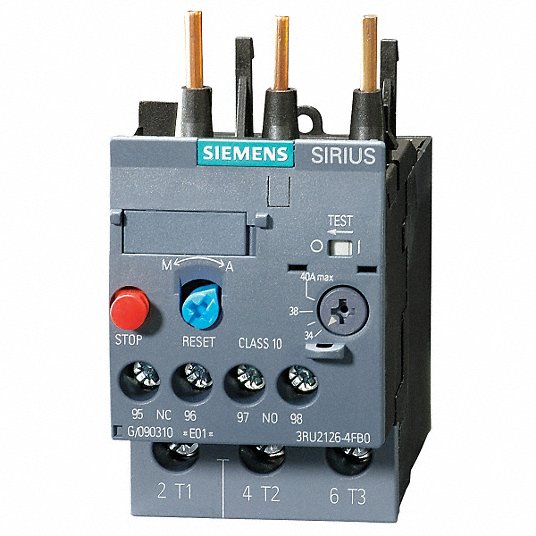

Siemens 3RU21261CB0 Overload Relay Cl10 S0 1.8-2.5A Screw

Product Description

The SIEMENS 3RU21261CB0 thermal overload relays up to 40 A are designed for current-dependant protection of loads with normal starting against excessive temperature rises due to overload or phase failure. These IEC thermal overload relays protect connected loads from overheating and causing damage.

• Trip Type Class 10
• Overload and Phase Failure Protection
• Screw Terminals

Product Highlights

The overload relay features auxiliary contacts, manual/automatic reset, switching position indication, and test/stop functions. It is suitable for panel mount.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21261CB0
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Contact Current Rating: 2.5 A
• Current Rating: 1.8 to 2.5 A
• Dimensions: 1.77 in L X 3.35 in D
• Manufacturer Part Number: 3RU21261CB0
• Maximum Operating Temperature: 70 °C
• Minimum Operating Temperature: -40 °C
• Mounting Style: Panel Mount
• Relay Type: Overload
• Series: 3RU Series
• Size: S0 in
• Special Features: Display of Operating State on Device, RESET Button, STOP Button, TEST Function
• Supply Voltage: 690 V
• Temperature Operating Range: -40 to 70°C °C
• Terminal Type: Screw
• Type: Relay
• Unit of Measure: EA
• UPC Code: 662643918953
• Compatible Contactor Series: SIRIUS
• Compatible Contactors: Frame Size
• Frame Size: S0
• Relay Style: IEC
• Overload Protection Type: Thermal
• Relay Mounting Style: Direct To Contactor
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Number of Poles: 3
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Maximum Overload Relay Current Setting: 2.5
• Minimum Overload Relay Current Setting: 1.8
• Maximum Voltage Rating: 690V
• Trip Class: 10
• Phase Loss Sensitivity: No
• Reset Type: Auto; Manual
• Wire Termination Type: Screw
• IP Rating: IP20
• Body Depth: 2.63 in
• Body Height: 5.98 in
• Body Width: 1.77 in
• Standards: REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w/w); RoHS 07/01/2006; WEEE (2012/19/EU) Take-Back Obligation
• UNSPSC: 39121520
• Volts: 600
• Poles: 3
• Normally Closed: 1
• Normally Open: 1
• Part Number #: 3RU21261CB0
• SKU #: 2293013
