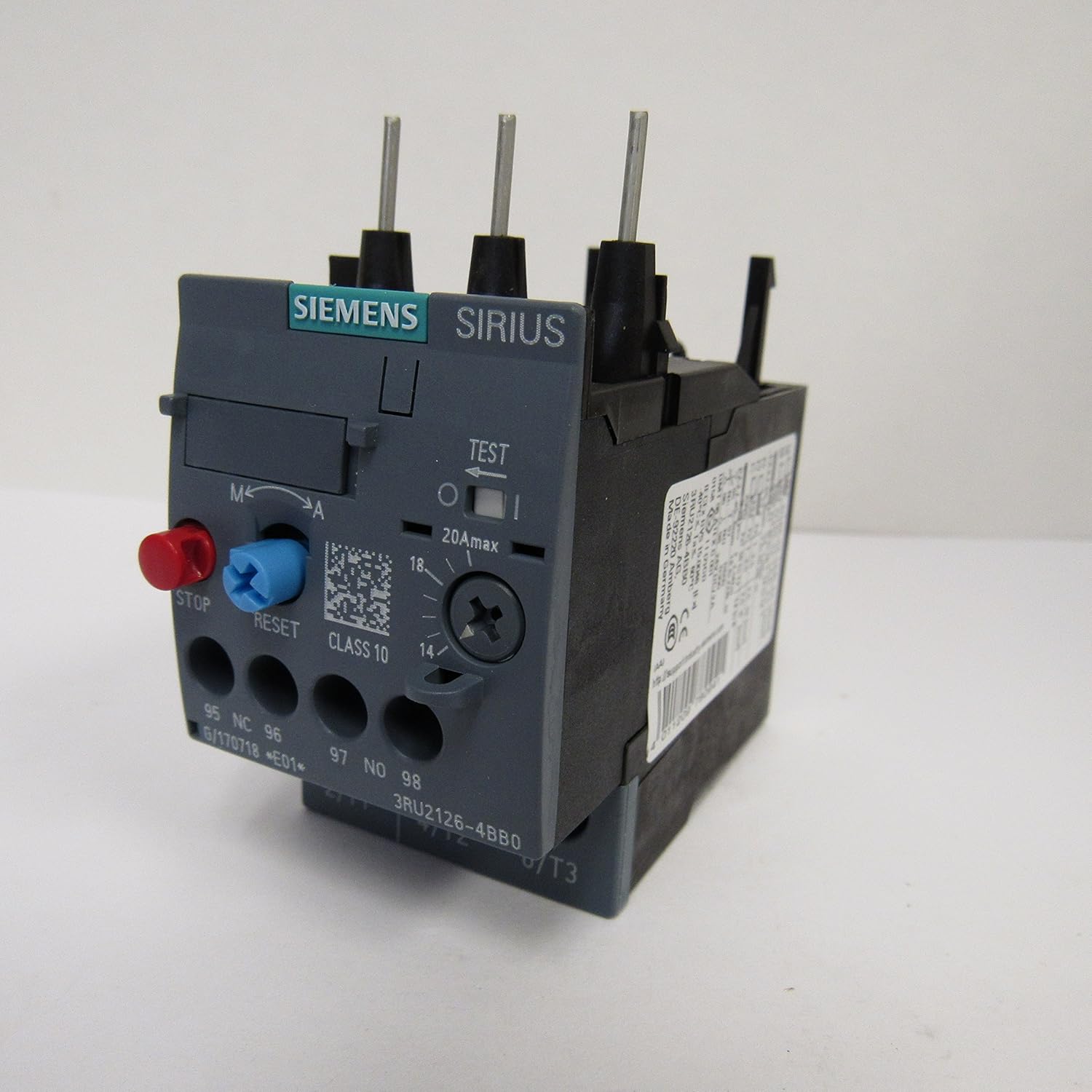

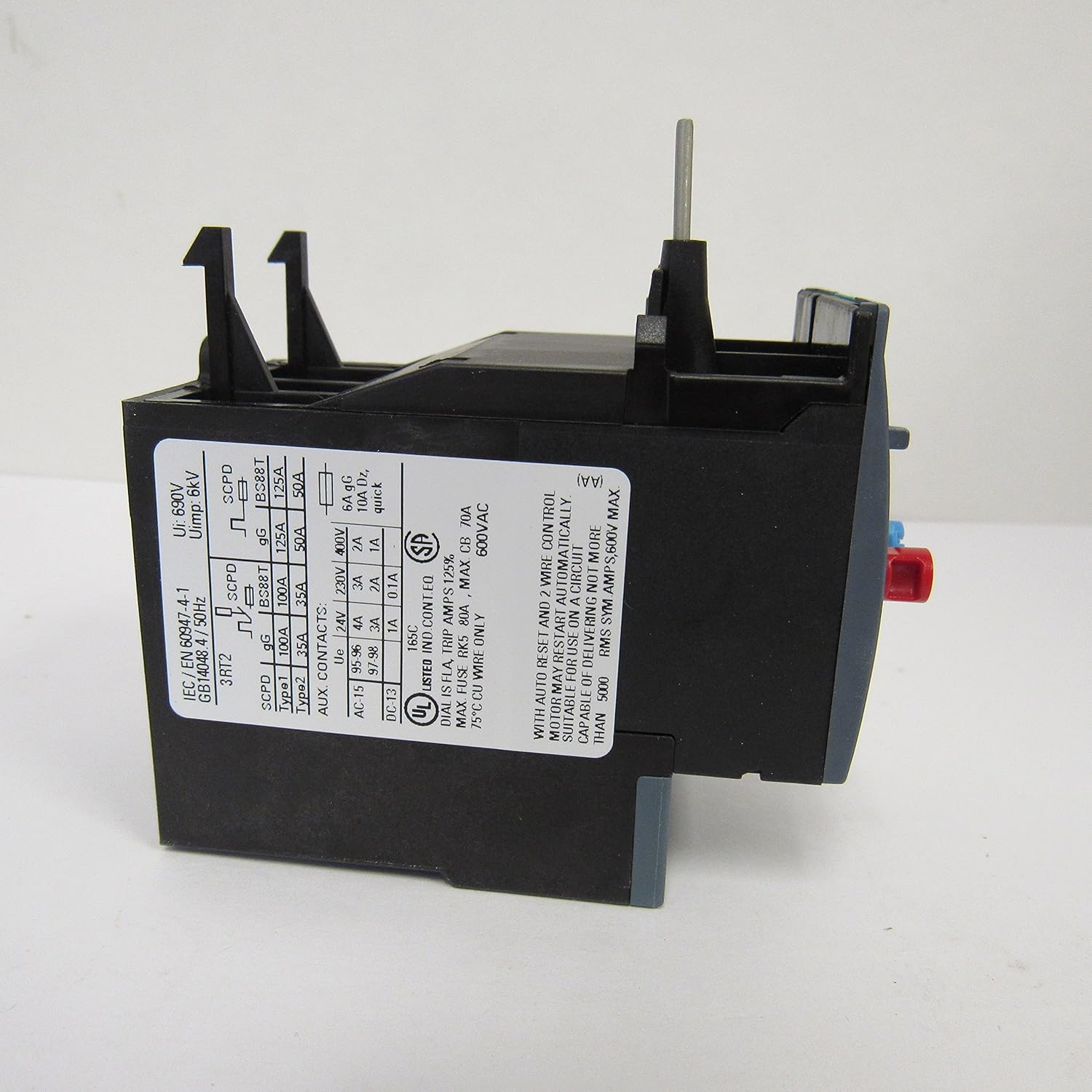

Siemens 3RU2126-4BB0 Overload Relay 14-20 AMP

Product Description

The Siemens 3RU2126-4BB0 Overload Relay is designed for reliable motor protection. It is specifically made to safeguard against excessive temperature rises due to overload or phase failure. This thermal overload relay offers a flexible and cost-effective solution for trade professionals.

• Adjustable current range: 14-20 amps
• Manual and automatic reset options
• Mounts on a 35mm DIN rail

Product Highlights

This relay is ideal for industrial applications, such as pumps, fans, and conveyors. It features a red LED indicator to show when it has tripped and comes with worldwide approvals including IEC and UL/CSA.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RU2126-4BB0

Technical Specifications

• Current Range: 14-20 amps
• Voltage: 690V
• Frequency: 50/60 Hz
• Operating Temperature: -20 to 70 degrees C
• Overall Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.35 inches
• Number of Poles: 3
• Contact Configuration: 1NC 1NO
• Contact Rating: B600 / R300
• Mounting: Contactor mounting
