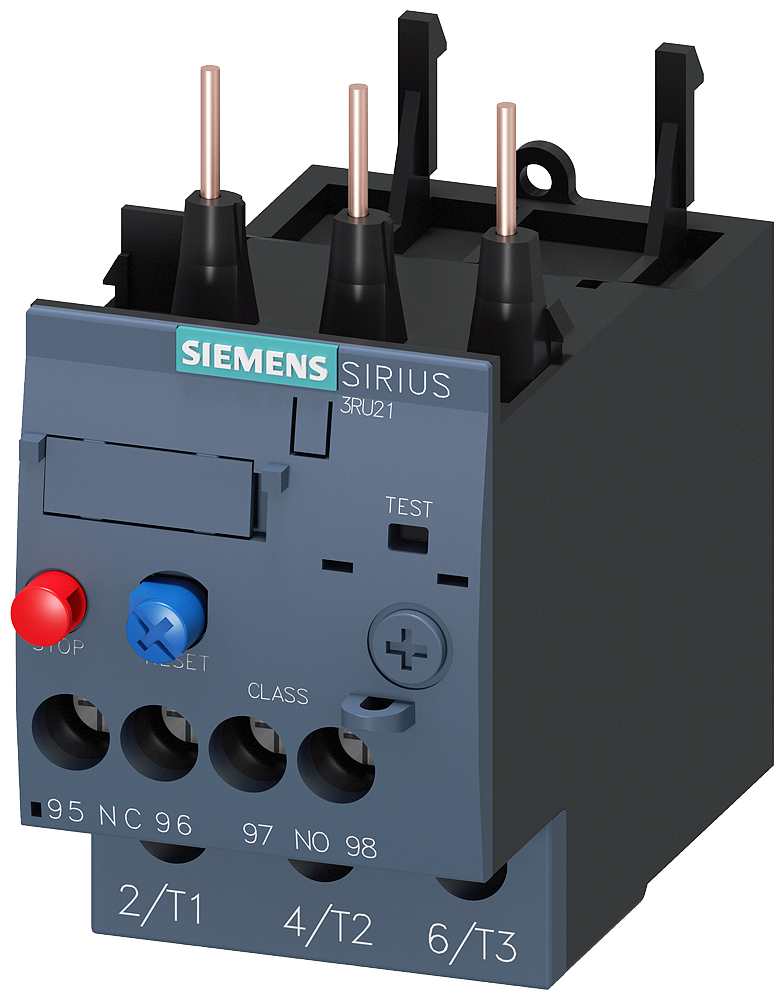

Siemens 3RU2126-1JB0 S0 7 to 10 Amp Class 10 Screw Terminal Overload Relay

Product Description

The Siemens 3RU21261JB0 is a Class 10 overload relay designed for motor protection. This relay can handle amperage between seven and ten amps. It uses screw terminals for easy installation and offers both manual and automatic reset options.

• Overload protection for three-phase and single-phase AC and DC motors
• Flexible mounting options with screw terminals
• Operates efficiently in temperature ranges from -20 to 70 degrees Celsius

Product Highlights

This relay provides inverse-time delayed protection against overload and phase failure, making it suitable for various applications. It is part of the SIRIUS modular system, ensuring compatibility with other components in the series.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Type: 3RU2 thermal overload relay
• Class: Class 10
• Amperage: 7-10 Amp
• Width: 1.930 inches
• Height: 4.02 inches
• Length: 4.02 inches
• Weight: 0.250 lb
• Terminal Type: Screw
• Contact Rating: B600,R300
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Temperature Rating: -20 to 70 degrees C
• Contact Configuration: 1 NO, 1 NC
• Country of Origin: Germany
