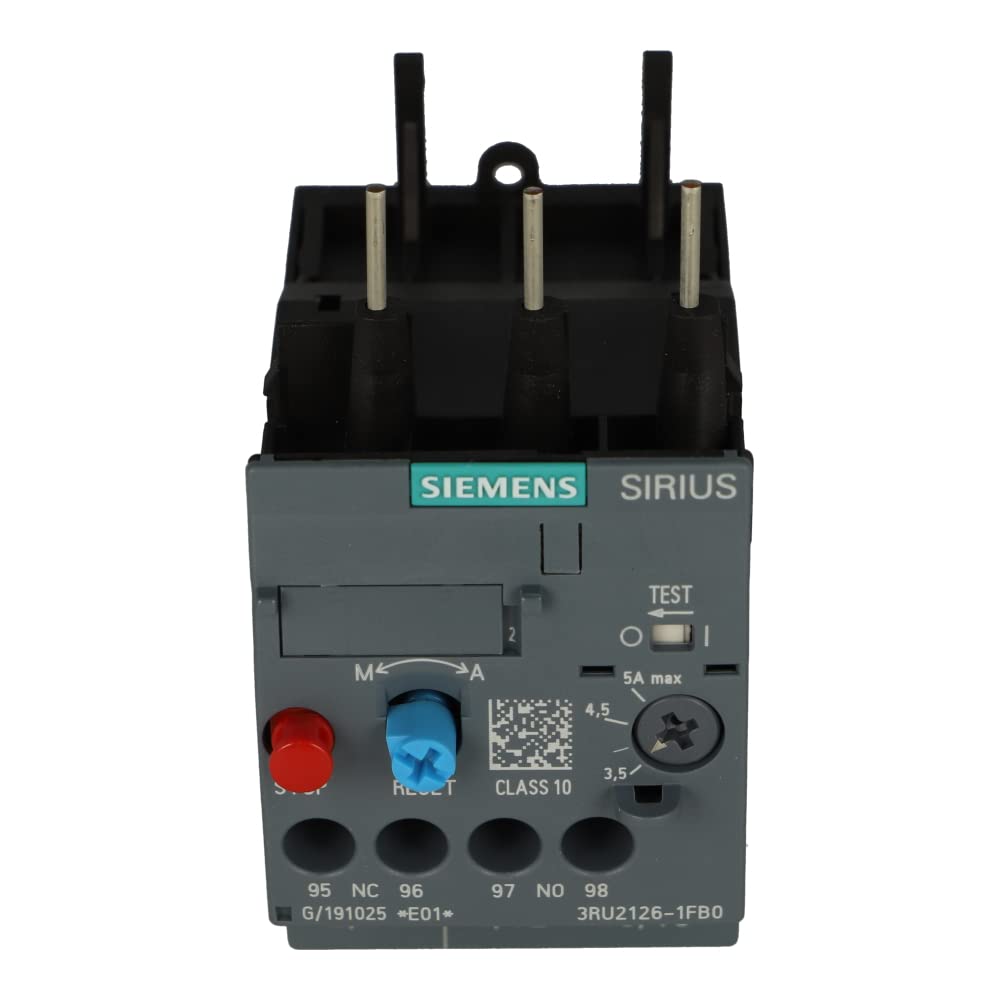

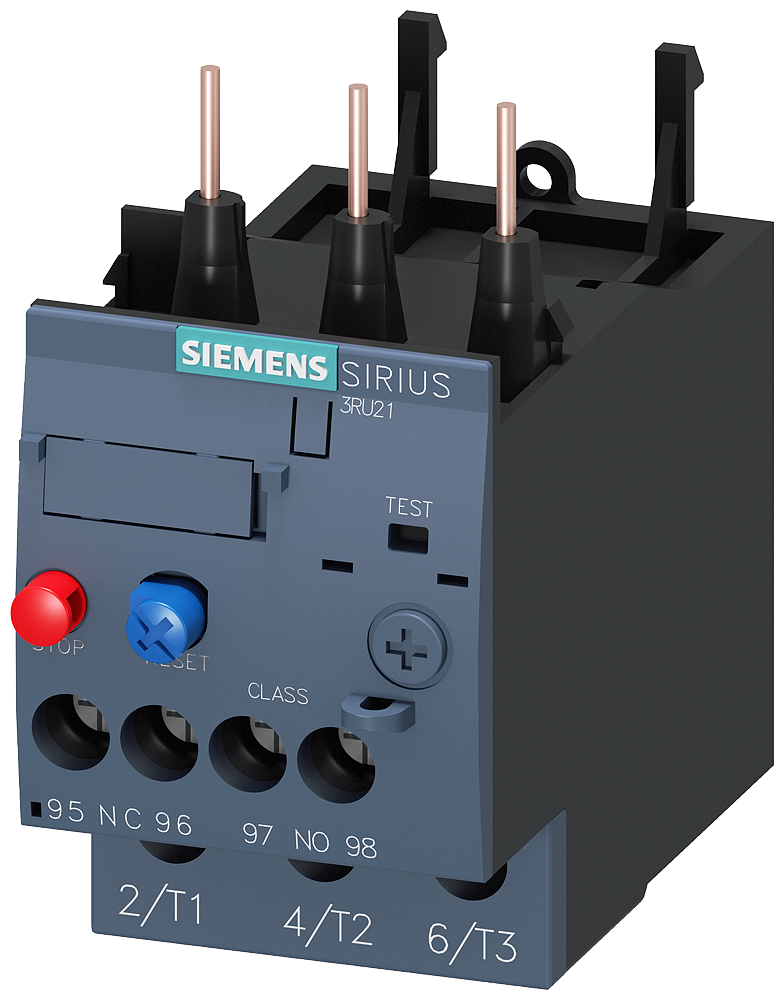

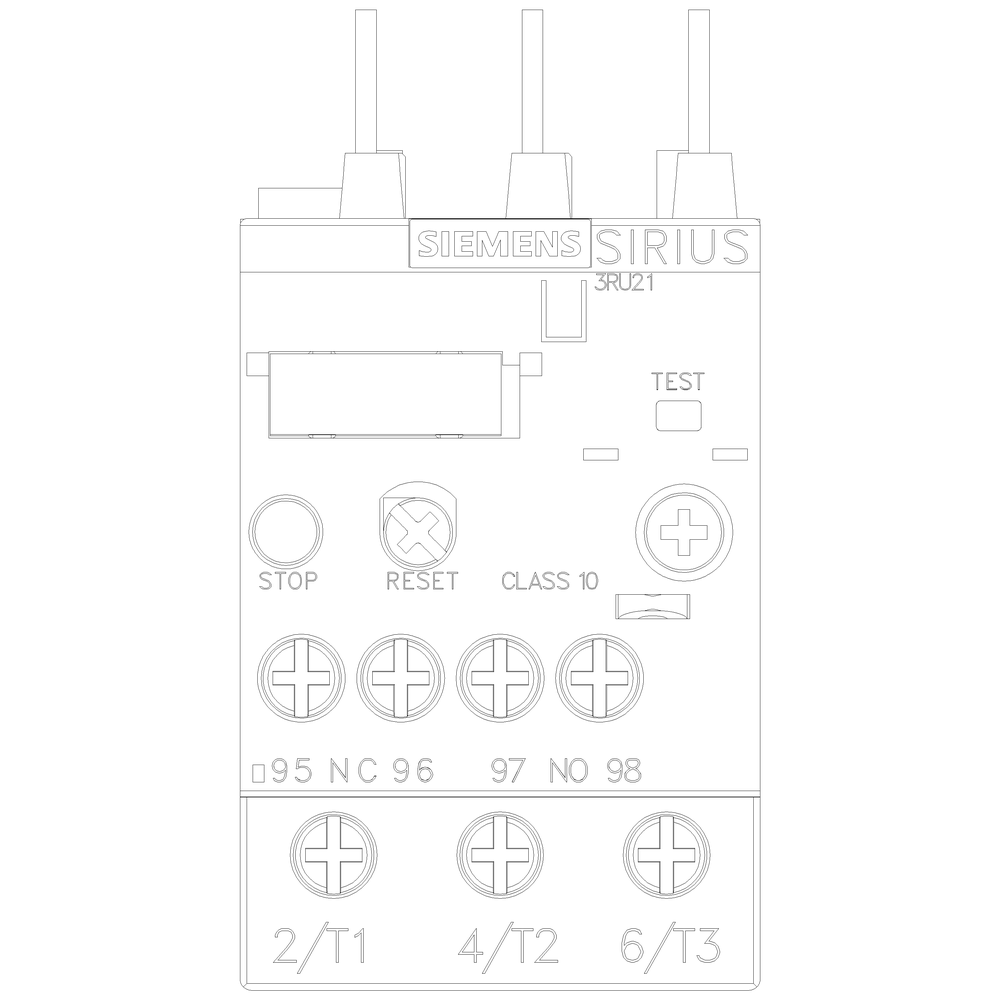

Siemens 3RU2126-1FB0 S0 3.5 to 5 Amp Class 10 Overload Relay

Product Description

The Siemens 3RU2126-1FB0 is an overload relay designed for protection of motors from overcurrent conditions. This thermal overload relay operates within a current range of 3.5 to 5.0 amps, ensuring the longevity of your motors. Ideal for both three-phase and single-phase AC and DC motors.

• Current range: 3.5-5.0 amps
• Manual and automatic reset
• Designed for motor protection

Product Highlights

This overload relay offers reliable protection in industrial environments, ensuring motor longevity by safeguarding against excessive current draw. Its robust and precise construction makes it perfect for various motor protection applications.

Product Information

Standard Information

• Item Number: 3RU2126-1FB0
• Brand: Siemens Industrial Controls

Technical Specifications

• Type: thermal overload relay
• Amperage: 3.5-5.0 amp
• Class: Class 10
• Width: 4.050 inches
• Height: 1.95 inches
• Length: 4 inches
• Weight: 0.400 lb
• Sub Brand: Sirius
• Application: For protection of three-phase and single-phase AC and DC motors
• Terminal Type: Screw
• Contact Rating: B600, R300
• Connection Type: Screw Connection
• Number of Poles: 3 Pole
• Temperature Rating: -20 to 70 degrees C
• Contact Configuration: 1 NO, 1 NC
• Operating Temperature: -20 degrees C
• Environmental Conditions: 80 to 50 C
• Country of Origin: Germany
