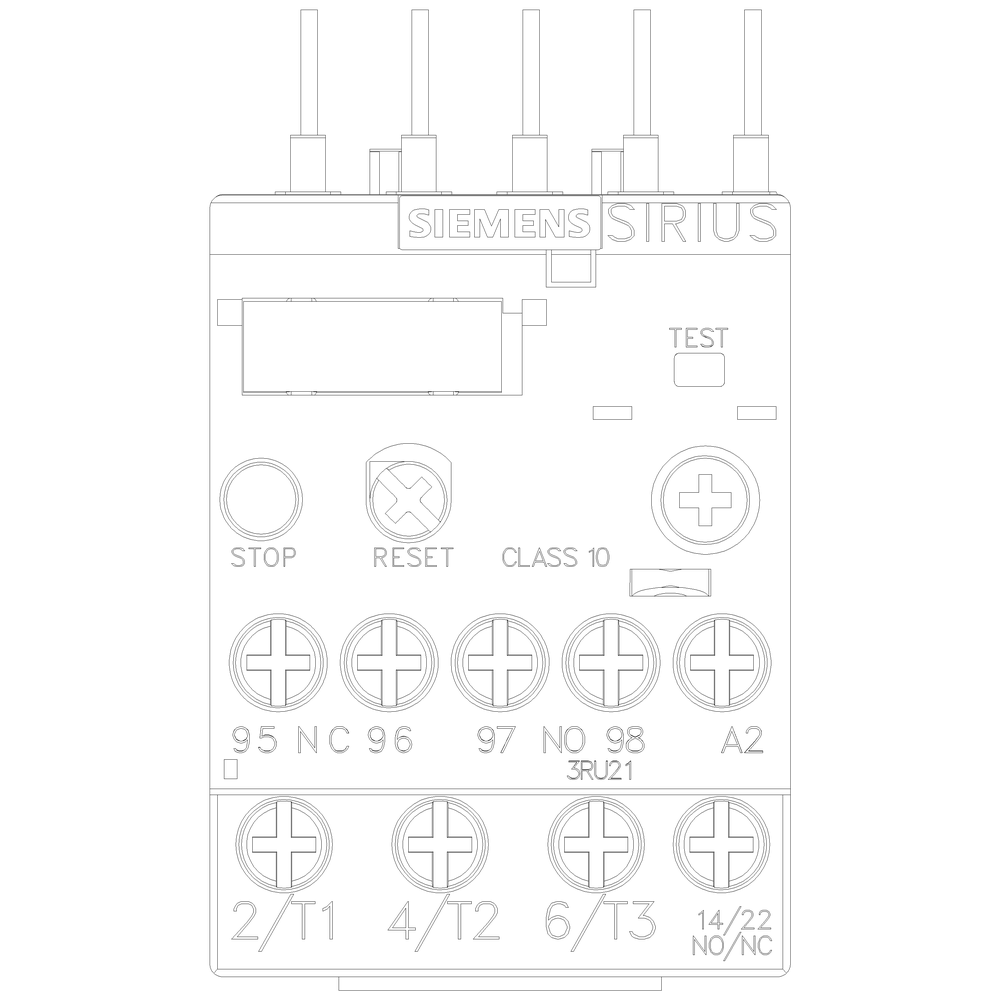

Siemens 3RU21164AB0 Overload Relay CL10

Product Description

The Siemens 3RU21164AB0 is a thermal overload relay designed for motor protection. This overload relay operates in a range of eleven to sixteen amps and is suitable for use in various applications, including protection for both three-phase and single-phase AC and DC motors. The unit mounts directly on contactors using screw terminals.

• Thermal overload relay for motor protection
• Suitable for Class 10 applications
• Equipped with screw terminals for secure connections

Product Highlights

This relay ensures inverse-time delayed protection against overloads and phase failures, making it ideal for diverse environments, including hazardous areas.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: 3RU21164AB0
• Type: 3RU2 thermal overload relay
• Class: Class 10
• Amperage: 11-16 Amp
• Terminal Type: Screw
• Number of Poles: 3 Pole
• Dimensions: Width - 2.050 inches, Height - 3.45 inches, Length - 4 inches
• Weight: 0.200 lb
• Operating Temperature: -20 to 70 degrees C
• Country of Origin: Germany
