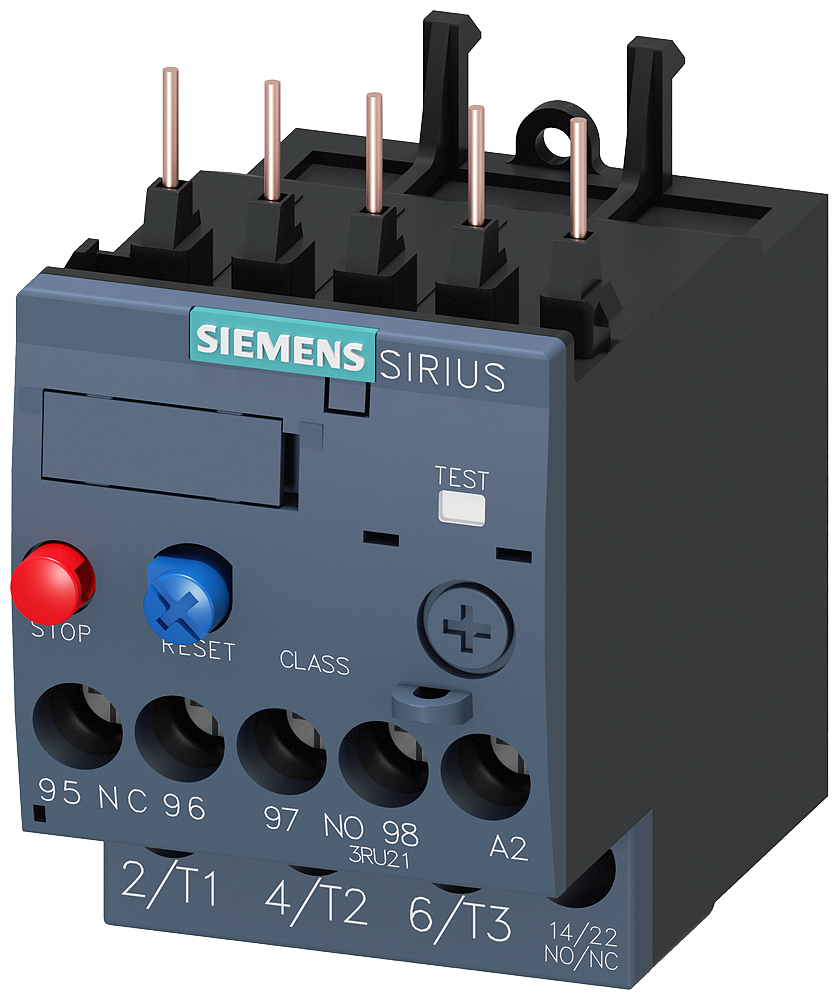

Siemens 3RU21161JB0 690 VAC 7 to 10 Amp 3-Pole 1NO 1NC Thermal Overload Relay

Product Description

The Siemens 3RU21161JB0 thermal overload relay offers reliable protection for electric motors. This relay operates within a current range of 7 to 10 Amps and is ideal for motor protection, featuring contactor mounting and a Class 10 trip classification. It is compatible with 690 VAC operations and includes 1NO and 1NC contact configuration.

• For motor protection
• 7 to 10 Amp range
• Contactor mounting with 1NO 1NC configuration

Product Highlights

Reliable overload protection for industrial motors with flexible mounting options and global approvals.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RU21161JB0

Technical Specifications

• Current Range: 7-10 Amps
• Operating Voltage: 690 VAC
• Contact Configuration: 1NC 1NO
• Insulation Voltage: 800V AC
• Temperature Rating: -20 to 70 degrees C
• Mounting Type: Contactor
• Contact Rating: B600, R300
• Standards: ABS, ATEX, CCC, CE, CSA, UL
• Trip Class: 10
• Number of Poles: 3
