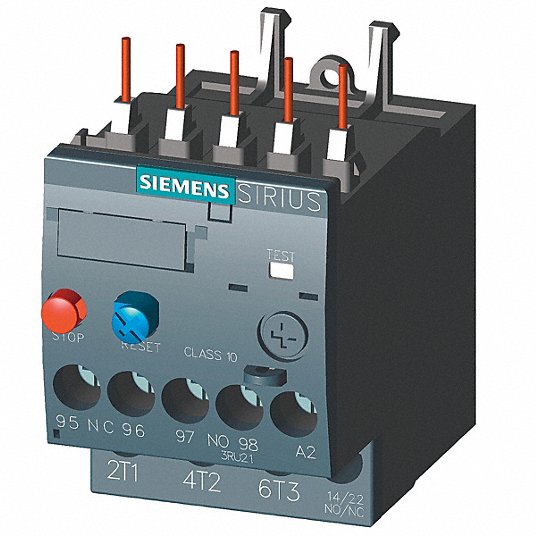

Siemens 3RU21160EB0 Overload Relay Cl10 S00 0.28-0.4A Screw

Product Description

The SIEMENS 3RU21160EB0 thermal overload relay is designed for current-dependent protection of loads with normal starting against excessive temperature rises due to overload or phase failure. It protects three-phase and single-phase AC and DC motors. It compensates for temperatures over a -40°C to +60°C range according to IEC 60947-4-1.

• Trip Type Class 10
• Overload and Phase Failure Protection
• Screw Terminals
• Auxiliary Contacts: 1 NO + 1 NC
• Manual/Automatic RESET

Product Highlights

The overload relay features switching position indication, a test function, and a stop button. Suitable for any industry needing optimum inverse-time delayed protection of electrical loads under normal starting conditions.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21160EB0
• Country of Origin: DE

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Contact Current Rating: 0.4 A
• Current Rating: 0.28 to 0.4 A
• Dimensions: 1.77 in L X 2.76 in D
• Manufacturer Part Number: 3RU21160EB0
• Maximum Operating Temperature: 70 °C
• Minimum Operating Temperature: -40 °C
• Mounting Style: Panel Mount
• Relay Type: Overload
• Series: 3RU Series
• Size: S00 in
• Special Features: Display of Operating State on Device, RESET Button, STOP Button, TEST Function
• Supply Voltage: 690 V
• Temperature Operating Range: -40 to 70°C °C
• Terminal Type: Screw
• Type: Relay
• Unit of Measure: EA
• UPC Code: 662643919790
• Model: 3RU21160EB0
• California Prop 65 Warning: N
• Coil Voltage: N/A
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
• Compatible Contactor Series: SIRIUS
• Frame Size: S00
• Relay Style: IEC
• Overload Protection Type: Thermal
• Relay Mounting Style: Direct To Contactor
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Number of Poles: 3
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Maximum Overload Relay Current Setting: 0.4 A
• Minimum Overload Relay Current Setting: 0.28 A
• Maximum Voltage Rating: 690V AC
• Trip Class: 10
• Phase Loss Sensitivity: No
• Reset Type: Auto; Manual
• Wire Termination Type: Screw
• IP Rating: IP20
• Body Depth: 2.43 in
• Body Height: 4.64 in
• Body Width: 1.77 in
• Standards: REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w/w); RoHS 07/01/2006; WEEE (2012/19/EU) Take-Back Obligation
• UNSPSC: 39122330
