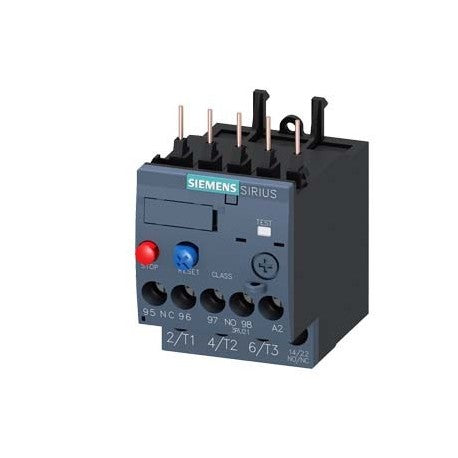

Siemens 3RU21160DB0 Overload Relay 0.22-0.32 A

Product Description

The SIEMENS 3RU21160DB0 is a thermal overload relay designed for current-dependent protection of loads with normal starting against excessive temperature rises due to overload or phase failure. It is designed to protect connected loads from overheating and causing damage. The relay features screw terminals and a Class 10 trip type.

• Trip Type Class 10
• Overload and Phase Failure Protection
• Screw Terminals

Product Highlights

The SIEMENS 3RU21160DB0 overload relay provides reliable thermal protection with manual/automatic reset options and clear switching position indication.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21160DB0
• Country of Origin: Germany

Technical Specifications

• Category: Relays
• Accessory Type: Thermal Overload Relay
• Manufacturer: Siemens
• Series: SIRIUS 3RU2
• For Use With/Related Products: Contactors
• Packaging: Bulk
• Part Status: Active
• Base Product Number: 3RU2116
• UNSPSC Code: 39120000
• Contact Current Rating: 0.32 A
• Current Rating: 0.22 to 0.32 A
• Dimensions: 1.77 in L X 2.76 in D
• Manufacturer Part Number: 3RU21160DB0
• Maximum Operating Temperature: 70 °C
• Minimum Operating Temperature: -40 °C
• Mounting Style: Direct To Contactor
• Relay Type: Overload
• Size: S00 in
• Special Features: Display of Operating State on Device, RESET Button, STOP Button, TEST Function
• Supply Voltage: 690 V
• Temperature Operating Range: -40 to 70°C °C
• Terminal Type: Screw
• Type: Relay
• Unit of Measure: EA
• UPC Code: 662643919745
• Auxiliary Contact Form: 1NO/1NC
• Maximum Overload Relay Current Setting: 0.32 A
• Minimum Overload Relay Current Setting: 0.22 A
• Trip Class: 10
• Maximum Voltage Rating: 690V AC
• NEMA Size: Not Applicable
• Number of Poles: 3
• Number of Required Thermals: 3
• Reset Type: Auto, Manual
• Includes Thermal Units: Yes
• Terminal Connection Type: Screw Terminals
• Compatible with Series: SIRIUS
• Frame Size: S00
• Relay Style: IEC
• Overload Protection Type: Thermal
• Compatible Contactor Series: SIRIUS
• Compatible Contactors: Frame Size
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Phase Loss Sensitivity: No
• Wire Termination Type: Screw
• IP Rating: IP20
• Body Depth: 2.43 in
• Body Height: 4.64 in
• Body Width: 1.77 in
• Standards: REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w/w); RoHS 07/01/2006; WEEE (2012/19/EU) Take-Back Obligation
• UNSPSC: 39121520
• Reference: 3RU21160DB0
• Item Code: 3RU21160DB0
• Condition: New
