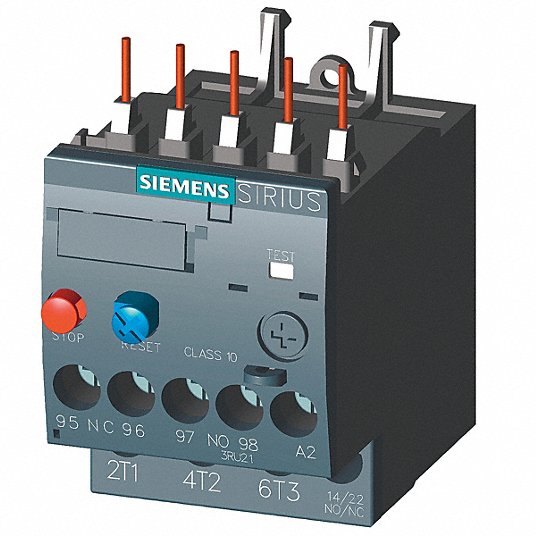

Siemens 3RU21160CB0 Overload Relay CL10 S00 0.18-0.2

Product Description

The SIEMENS 3RU21160CB0 is a thermal overload relay designed for current-dependent protection of loads with normal starting against excessive temperature rises due to overload or phase failure. It prompts contactors to break electrical connections with downstream equipment once a set temperature is reached.

• Trip Type Class 10
• Overload and Phase Failure Protection
• Screw Terminals

Product Highlights

Features include auxiliary contacts, manual/automatic reset, switching position indication, and test/stop functions. Suitable for motor protection and mounting onto contactors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU21160CB0
• Country of Origin: Germany

Technical Specifications

• Category: Relays
• Part Status: Active
• Manufacturer: Siemens
• Accessory Type: Thermal Overload Relay
• Series: SIRIUS
• For Use With/Related Products: Contactors
• Packaging: Box
• Base Product Number: 3RU2116
• Contact Current Rating: 0.25 A
• Current Rating: 0.18 to 0.25 A
• Dimensions: 1.77 in L X 2.76 in D
• Manufacturer Part Number: 3RU21160CB0
• Maximum Operating Temperature: 70 °C
• Minimum Operating Temperature: -40 °C
• Mounting Style: Panel Mount
• Relay Type: Overload
• Size: S00 in
• Special Features: Display of Operating State on Device, RESET Button, STOP Button, TEST Function
• Supply Voltage: 690 V
• Temperature Operating Range: -40 to 70°C °C
• Terminal Type: Screw
• Type: Relay
• UPC Code: 662643919691
• Part Number #: 3RU21160CB0
• SKU #: 2244884
• UNSPSC: 39121520
• Compatible Contactor Series: SIRIUS
• Compatible Contactors: Frame Size S00
• Frame Size: S00
• Relay Style: IEC
• Overload Protection Type: Thermal
• Relay Mounting Style: Direct To Contactor
• Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements)
• Number of Poles: 3
• Phase: Three
• Auxiliary Contacts Included: 1NO/1NC
• Maximum Overload Relay Current Setting: 0.25 A
• Minimum Overload Relay Current Setting: 0.18 A
• Maximum Voltage Rating: 690V AC
• Trip Class: 10
• Phase Loss Sensitivity: No
• Reset Type: Auto; Manual
• Wire Termination Type: Screw
• IP Rating: IP20
• Body Depth: 2.43 in
• Body Height: 4.64 in
• Body Width: 1.77 in
• Standards: REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 > 0, 1 % (w/w); RoHS 07/01/2006; WEEE (2012/19/EU) Take-Back Obligation
