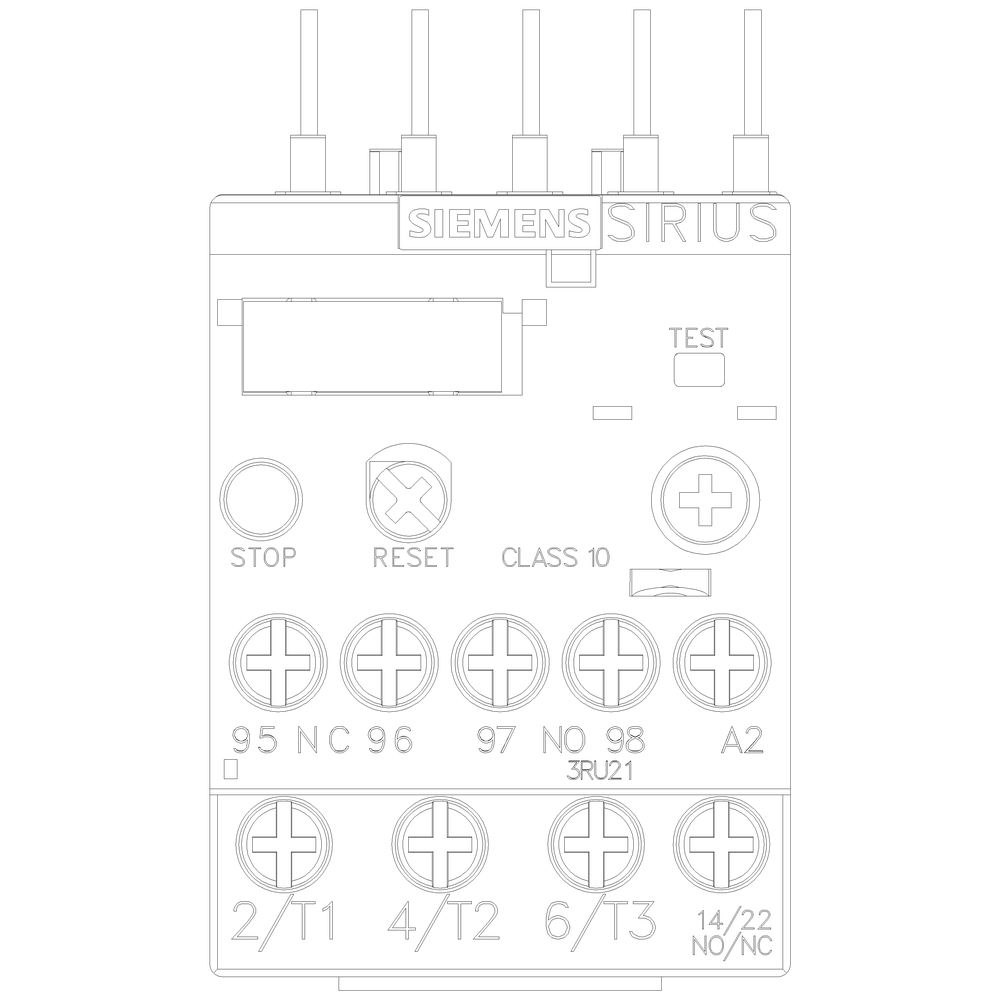

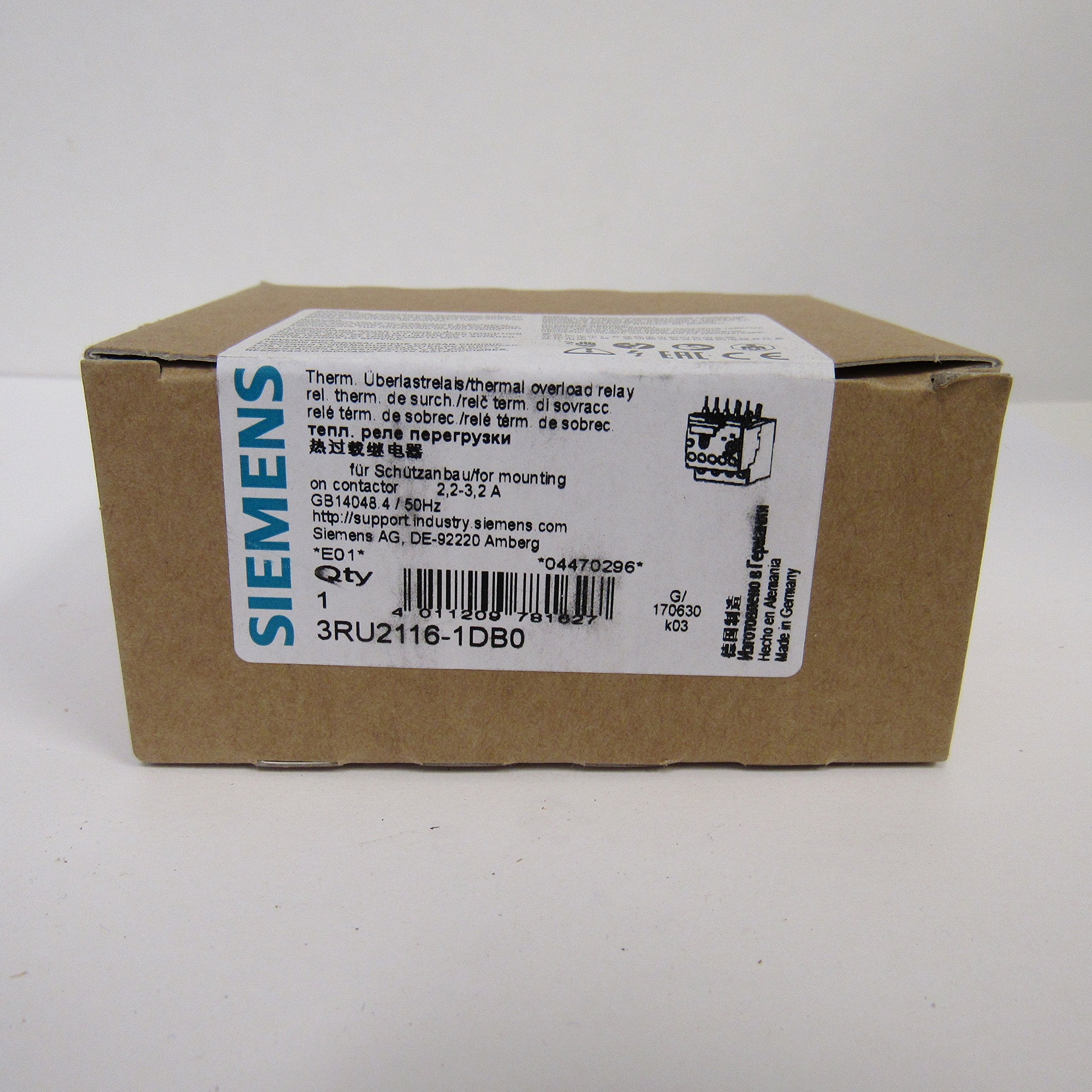

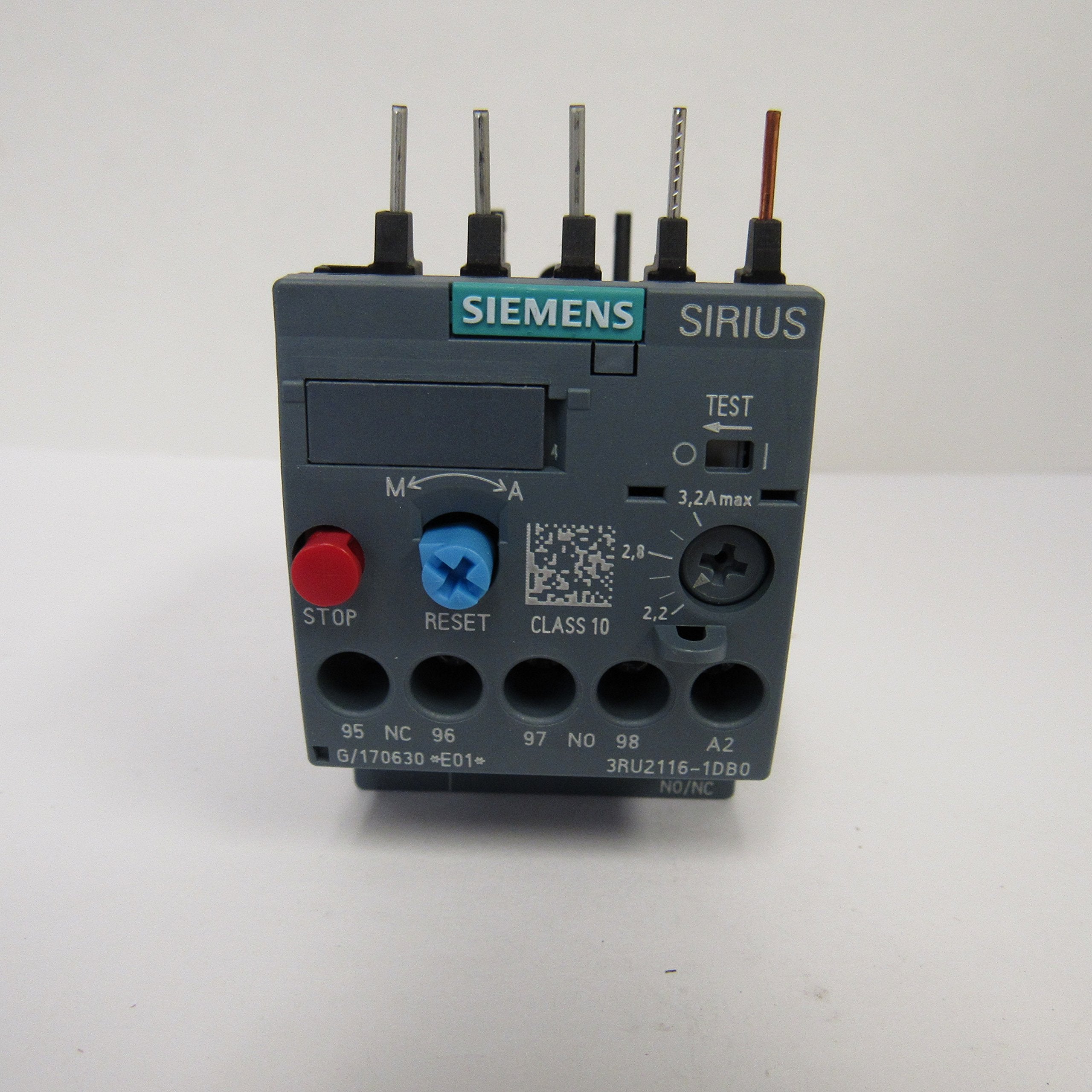

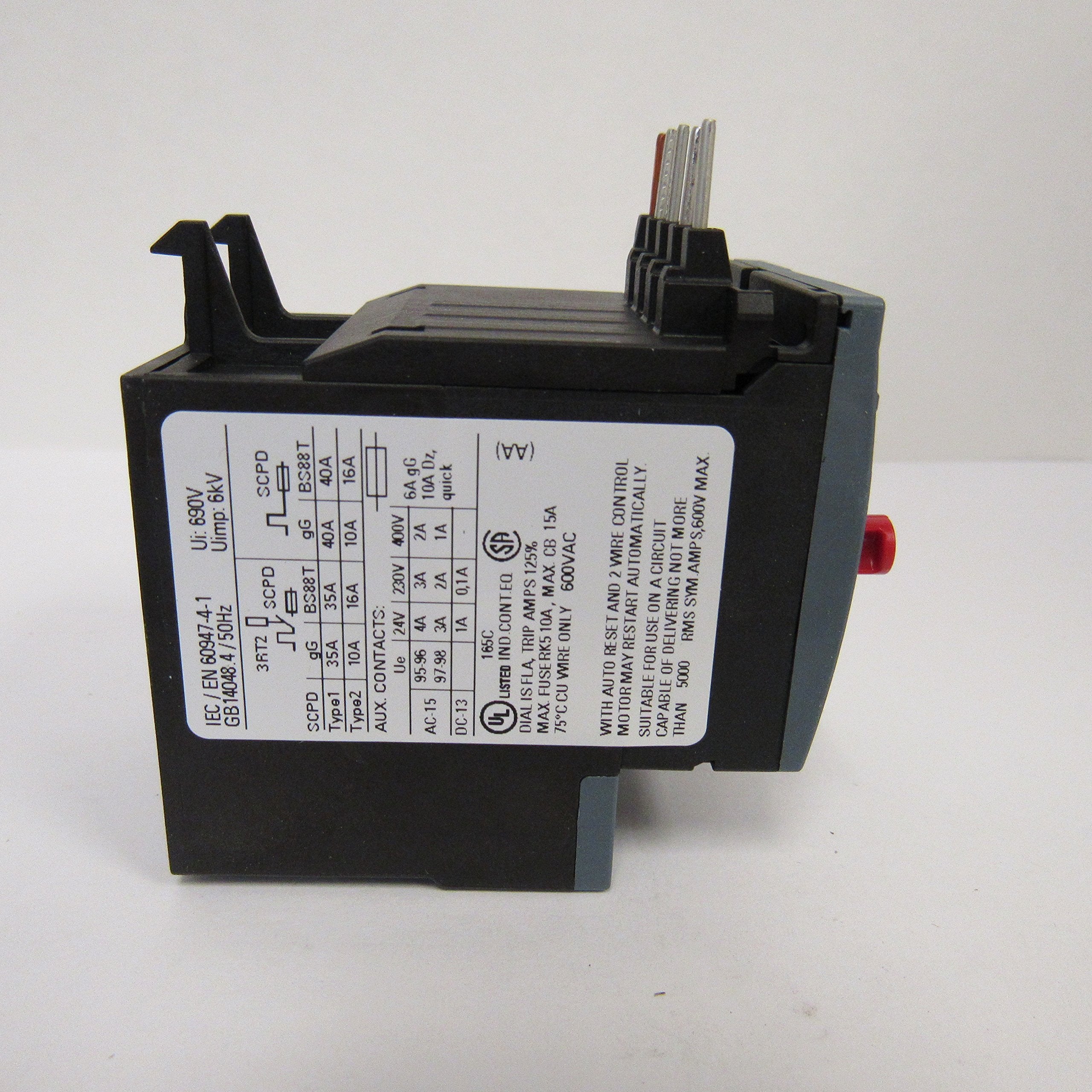

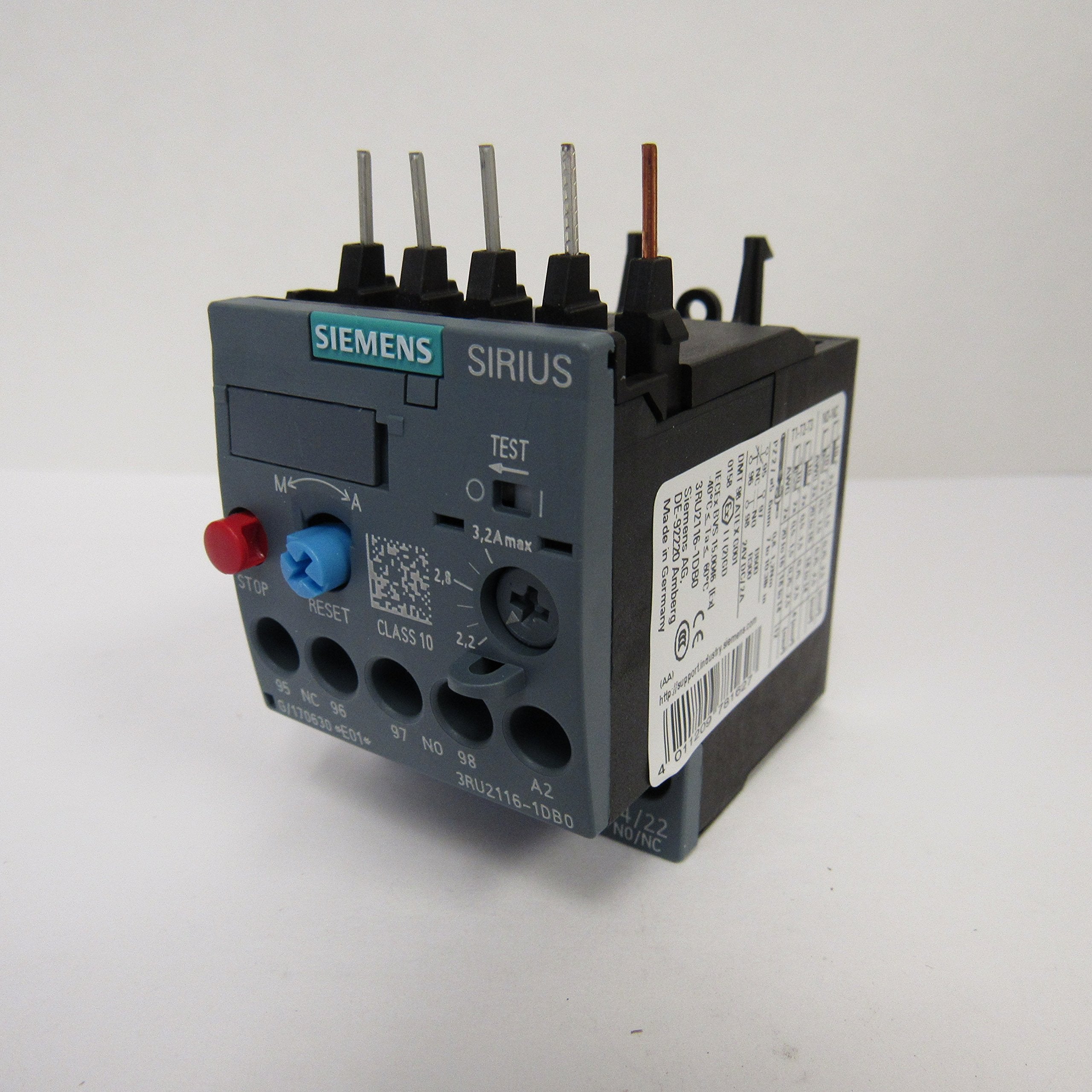

Siemens 3RU2116-1DB0 Overload Relay 2.2-3.2 Amp 3-Pole 1NC 1NO

Product Description

The Siemens 3RU2116-1DB0 Overload Relay is a reliable solution for protecting electrical circuits from overloads and phase failures. This thermal overload relay, part of the Sirius series, ensures your equipment stays safe and operational.

• Current range: 2.2 to 3.2 amps
• Three-pole configuration for broad compatibility
• Features 1NC and 1NO contact

Product Highlights

This relay is easy to install with screw terminals and is designed for motor protection. It supports both manual and automatic reset functions.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens
• MPN: 3RU2116-1DB0
• Country of Origin: Germany

Technical Specifications

• Amperage: 2.2-3.2 Amp
• Width: 1.93 inches
• Height: 3.31 inches
• Length: 4.02 inches
• Weight: 0.05 lb
• Terminal Type: Screw
• Number of Poles: 3
• Contact Configuration: 1NC 1NO
• Operating Temperature: -20 to 70 degrees Celsius
• Connection Type: Screw Connection
• Contact Rating: B600, R300
• Type: Thermal Overload Relay
• Sub Brand: Sirius
