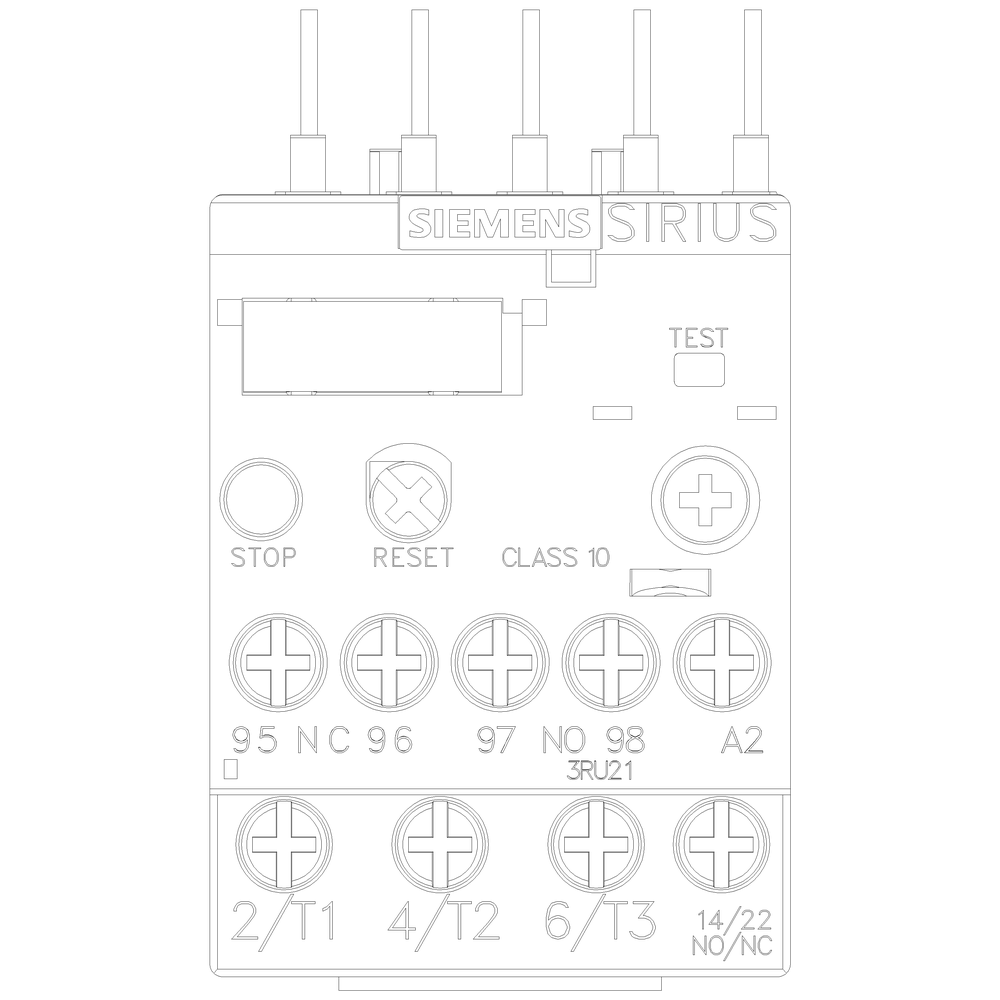

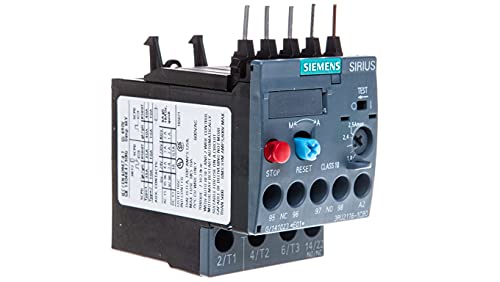

Siemens 3RU2116-1CB0 Overload Relay 1.8-2.5 Amp 3-Pole

Product Description

The Siemens 3RU2116-1CB0 Overload Relay is a thermal overload relay designed for motor protection. It operates within a current range of 1.8 to 2.5 amps and is equipped with a 3-pole configuration.

• Overload trip range: 1.8 to 2.5 amps
• Manual and automatic reset options
• Mounting designed for S00 contactors

Product Highlights

This thermal overload relay provides reliable protection against overheating and phase failure for electrical loads. It includes features like screw terminal connections, ease of installation, and compatibility with various accessories.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RU2116-1CB0

Technical Specifications

• Current Range: 1.8-2.5 Amp
• Voltage: 690 Volt
• Number of Poles: 3
• Contact Configuration: 1 NO, 1 NC
• Thermal Trip Class: Class 10
• Terminal Type: Screw
• Operating Temperature: -40 to 70 degrees C
• Connection Type: Screw Connection
• Used With: S00 Contactors
• Dimensions: 4.02 inches (length), 1.930 inches (width), 3.31 inches (height)
• Weight: 0.100 lb
• Compliance: IEC, UL/CSA, ATEX, IEC Ex
