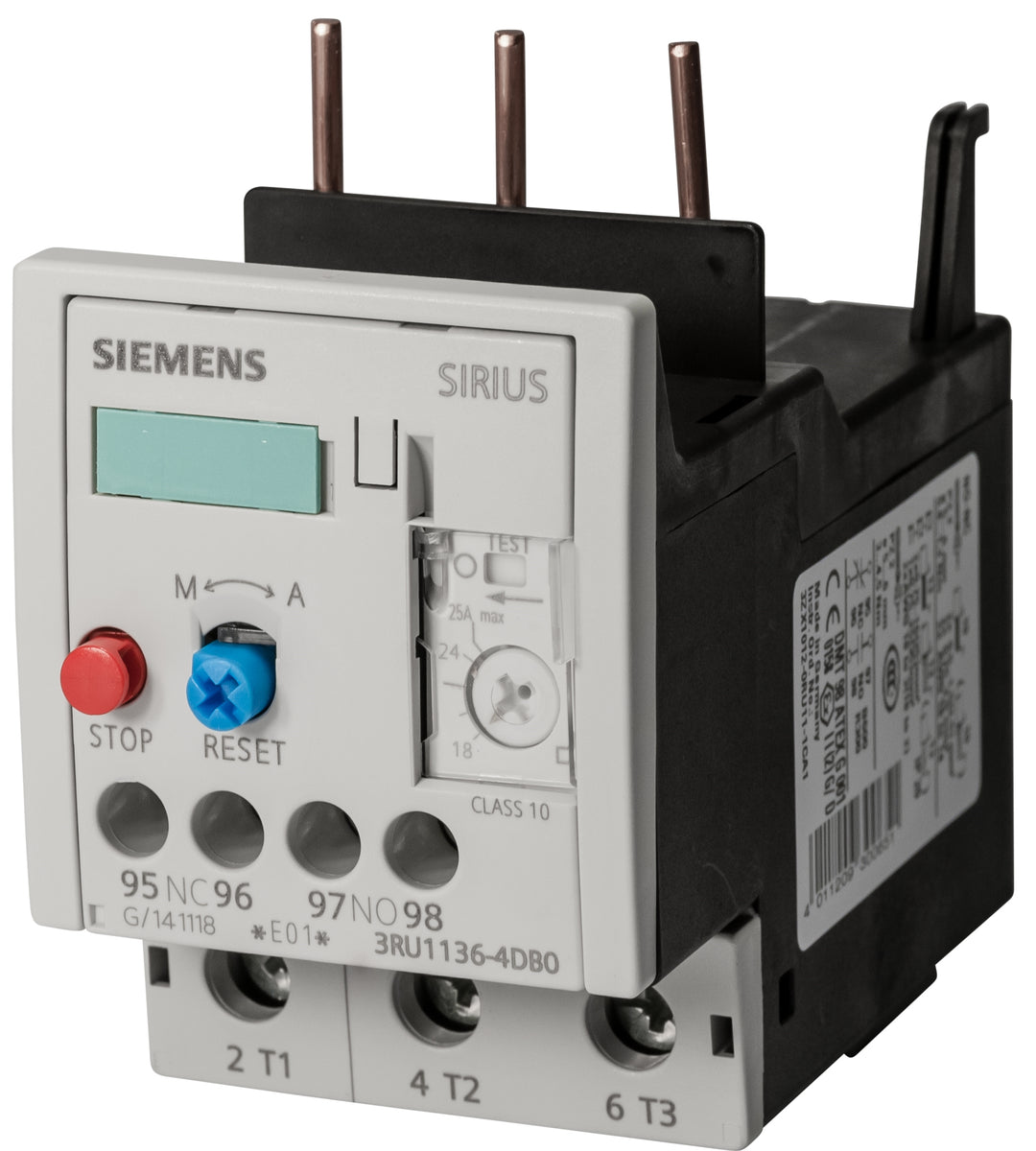

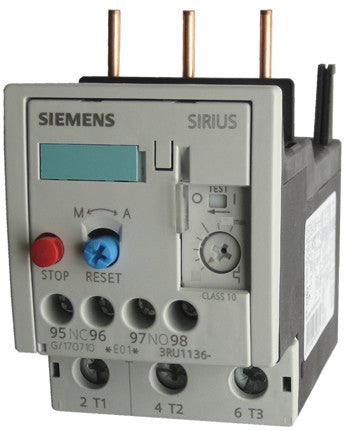

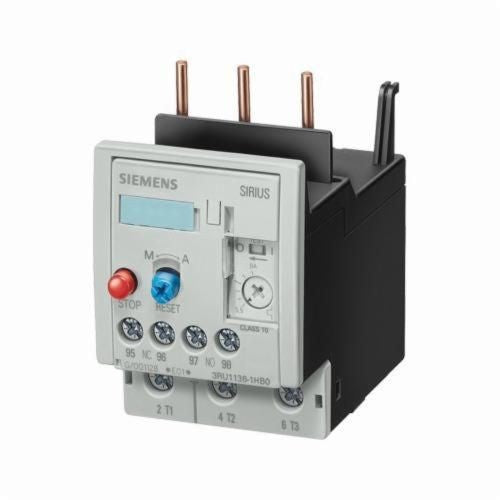

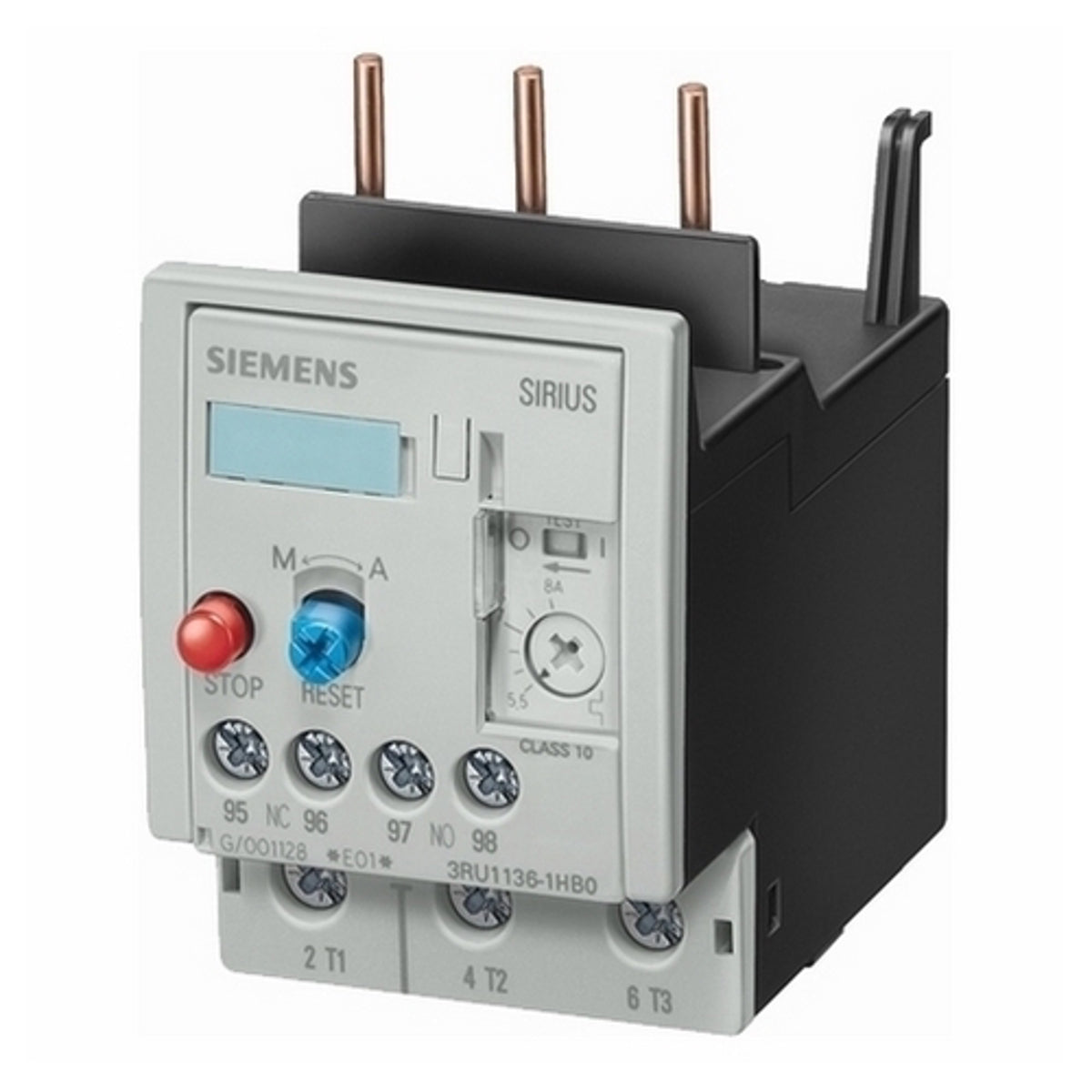

Siemens 3RU1136-4DB0 Overload Relay 18-25 A (Size S2)

Product Description

The Siemens 3RU1136-4DB0 is a thermal overload relay for motor protection with an adjustable trip range of 18–25 A. It is a 3-pole, Size S2, Class 10 device intended for contactor mounting and provides one normally open and one normally closed auxiliary contact. The relay is IEC rated, sensitive to phase loss and phase asymmetry, and supports manual or automatic reset for three-phase motor applications.

• Adjustable ampere setting range: 18–25 A; Class 10 thermal tripping
• Three poles with 1 normally open (1NO) and 1 normally closed (1NC) auxiliary contact; contact rating 25 A at 690 VAC
• Designed for contactor mounting (direct mount on compatible 3RT contactors); manual or automatic reset; IEC rated

Product Highlights

Adjustable 18–25 A Class 10 thermal overload, 3-pole Size S2 with 1NO+1NC for contactor mounting

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RU1136-4DB0
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3RU1136-4DB0
• Type: Thermal overload relay
• Ampere Setting Range: 18 - 25 A
• Number of Poles: 3
• Contact Form: 1NO + 1NC
• Class: 10
• Frame Size: S2
• Mounting Type: Contactor mounting; direct mount on 3RT contactors; optional DIN rail or base bracket mounting
• Compatible Contactors: 3RT1033, 3RT1034, 3RT1035, 3RT1036
• Contact Rating: 25 A at 690 VAC
• Protection Features: Phase loss protection; phase asymmetry sensitivity
• Reset Type: Manual or automatic
• Standards & Approvals: CCC, CE, CSA, EAC, UL
• Enclosure Rating: IP20
• Dimensions (HxWxD): 105 mm x 55 mm x 118 mm
• Operating Temperature: -20 to 70 °C
• Terminal Type: Threaded
• Country of Origin: Germany
• UPC: 754554412481
• EAN: 4011209300651
• GTIN: 00754554412481
• Weight: 0.734 lb
