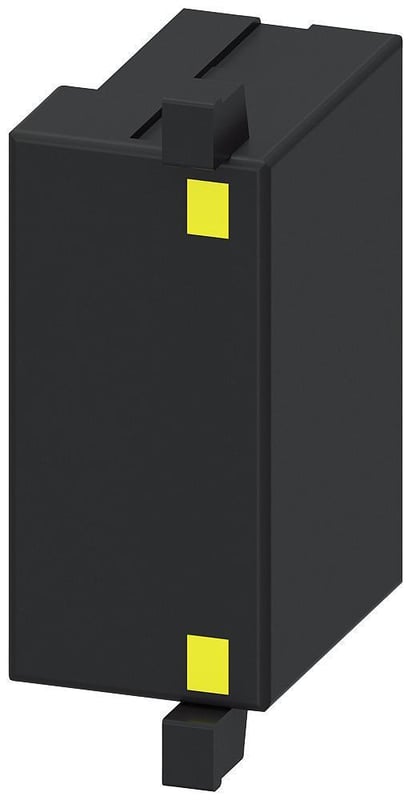

Siemens 3RT29261JJ00 Surge suppressor with led and varistor 24 to 48 V AC 12 to 24 V DC (S0)

Product Description

Siemens 3RT29261JJ00 is a surge suppressor with LED indicator and integrated varistor designed to protect coil and control circuits on S0 motor contactors. It is rated for coil voltages of 24 to 48 V AC and 12 to 24 V DC at 50/60 Hz, mounts by clip-on, and measures approximately 11.5 mm x 18.6 mm x 30.2 mm. Operating range is -25 to 60 °C for transient suppression on AC/DC control circuits.

• Integrated varistor surge suppressor with LED indicator for coil protection
• Voltage rating: 24 to 48 V AC / 12 to 24 V DC; frequency: 50/60 Hz
• Clip-on mount for S0 motor contactors; dimensions 11.5 mm x 18.6 mm x 30.2 mm; operating temperature -25 to 60 °C

Product Highlights

Varistor surge suppressor with LED for S0 motor contactor coil protection; 24–48 V AC / 12–24 V DC; clip-on mount; -25–60 °C operating range.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT29261JJ00
• Country of Origin: China

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 3RT29261JJ00
• Product Type: Surge suppressor (varistor) with LED
• Voltage Rating: 24 to 48 V AC / 12 to 24 V DC
• Coil Voltage: 24 to 48 V AC; 12 to 24 V DC
• Frequency: 50/60 Hz
• Operating Voltage Type: AC/DC
• Mounting Type: Clip-on mount
• Suitable For: SZ S0 motor contactor
• Dimensions (L x W x H): 11.5 mm x 18.6 mm x 30.2 mm
• Operating Temperature: -25 to 60 °C
• Indicator: LED
• Suppressor Type: Varistor
• Certifications: RoHS compliant
• Country of Origin: China
• EAN (GTIN-13): 4011209822719
• UPC: 662643920789
