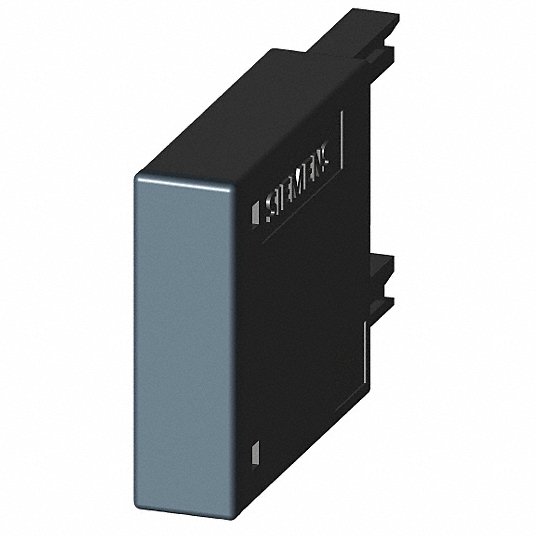

Siemens 3RT29161DG00 Surge Suppressor 12 to 250 VDC

Product Description

The SIEMENS 3RT29161DG00 is a surge suppressor designed for use with Size S00 motor contactors and contactor relays. It operates within a 12 to 250 VDC voltage range and a temperature range of -25 to 60 degrees Celsius. It features clip-on mounting. This diode assembly protects contactor relays and motor contactors.

• Surge suppressor
• Suppression diode DC 12...250V
• For contactor relays and motor contactors size S00

Product Highlights

The SIEMENS 3RT29161DG00 surge suppressor provides reliable surge protection for S00 contactors with a convenient clip-on design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT29161DG00
• Country of Origin: Czech Republic

Technical Specifications

• Suitable For Use With: Size S00 Motor Contactor and Contactor Relay
• Operating Temperature: -25 to 60 deg C
• Mounting: Clip-On Mount
• Voltage: 12 to 250 V DC
• Design of the surge suppressor: with diode assembly
• Mounting Type: Plugging onto the front side of the contactors, Clip-on mounting
• Operation: -25 to 60 deg C
• Storage: -40 to 80 deg C
• LED: Without LED
• Manufacturer Part Number: 3RT29161DG00
• Manufacturer: SIEMENS
• Series: 3RT Series
• Voltage Rating: 250 V
• Accessory Type: Diode
• Type: Diode
• Size: S00 in
• For Use With: 3RH2 Contactor, 3RT2.1 Contactor
• Brand: SIEMENS
• Compatible with Series: 3RT2, S00 Frame
• Contactors Accessory Type: Surge
• Supressor Maximum Voltage Rating: 12-250V
• DC Frame Size: S00
• Includes: Diode Assembly
• Model: 3RT2916-1DG00
