Siemens 3RT25161AK60 Contactor S00 9A 1

Product Description

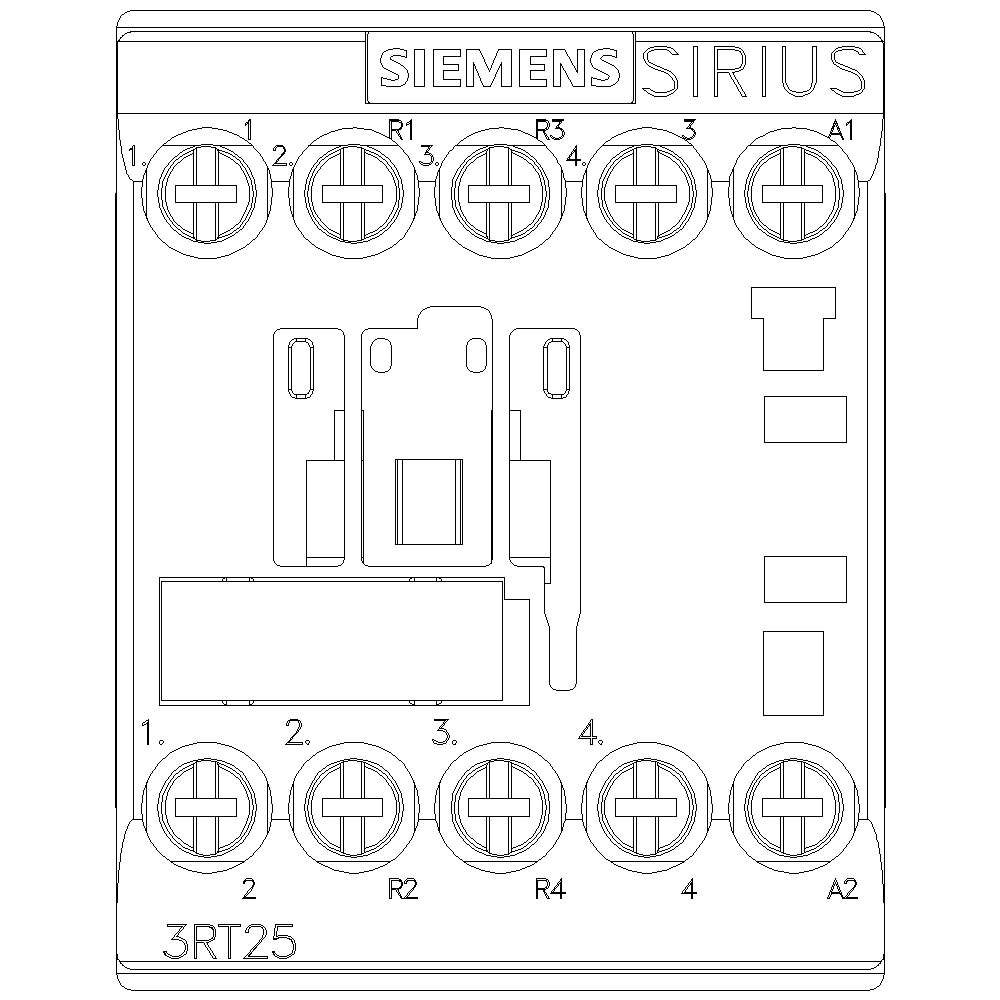

The SIEMENS 3RT25161AK60 is a 4-pole contactor suitable for switching motors. This S00 size SIRIUS contactor features screw-type terminals and a coil voltage of 120V 50HZ/120V 60HZ. It is designed for use as single devices, modules for load feeders, or for installation in low-voltage distribution boards and switchboards.

• 4-Pole contactor with 2NO and 2NC contacts
• Screw-type terminals for secure connections
• Suitable for DIN rail or surface mounting

Product Highlights

The SIEMENS 3RT25161AK60 contactor is ideal for motor switching applications, offering high contact reliability and a long service life.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT25161AK60
• Country of Origin: Germany

Technical Specifications

• Size: S00
• Type: 3RT2 contactor
• Brand: Siemens
• Width: 1.950 in
• Height: 2.4 Inch
• Length: 3.3 Inch
• Sub Brand: SIRIUS
• Applications: Contactors for switching motors
• Coil Voltage: 120 V
• TC Connection: screw-type terminals
• Contact Rating: A600 / Q600
• Connection Type: Screw Connection
• Number of Phases: 4 Phase
• Country of Origin: Germany
• Operating Temperature: 60 To -25 degrees C
• Manufacturer: Siemens
• Model / MPN: 3RT25161AK60
• MPN: 3RT25161AK60
• Contact Current Rating: 9 A
• Control Voltage: 120 V
• Horsepower Rating: 5 hp
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Mounting Type: Chassis Mount, DIN Rail
• Number of Poles: 4
• Primary Type: IEC Contactor
• Series: 3RT Series
• Temperature Operating Range: -25 to 60 C
• Terminal Type: Screw Terminal
• Termination: screw
• Auxiliary Contact Form: Auxiliary Contacts Not Included
• NEMA Enclosure Rating: No Enclosure
• NEMA Size: Not Applicable
• Full Load Current - Inductive: 9 A
• Full Load Current - Resistive: 18 A
• Reversing Capability: Non-Reversing
• Overall Height: 2.4 in
• Overall Width: 1.95 in
• Terminal Connection Type: Screw Terminals
• Frame Size: S00
• Mounting Style: DIN Rail, Surface
• Number of Auxillary Contacts: 0
• Contact Form: 4PST-2NO/2NC (2 Form A, 2 Form B)
• Switching Voltage: 400VAC - Max
• Features: Auxiliary Contacts
• Must Operate Voltage: 96 VAC
• Must Release Voltage: -
• Contact Material: -
• Operate Time: 35 ms
• Release Time: 14 ms
• Coil Power: 32VA
• Coil Resistance: -
• Base Product Number: 3RT2516
