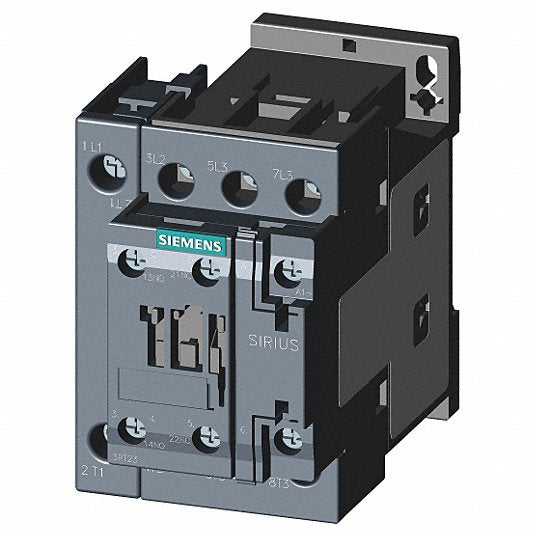

Siemens 3RT2325-1BB40 Sirius IEC Magnetic Contactor, 24VDC, 4 Pole, Size S0 35 Full Load Amp-Resistive, 4NO, Screw Terminal

Product Description

The Siemens Sirius 3RT2325-1BB40 is an IEC magnetic contactor with a 24VDC coil, 4 poles, and a Size S0 frame. It is rated for 35 full load amps resistive and features 4 normally open (4NO) contacts with screw terminals. Suitable for use in any climate, these contactors are finger-safe according to EN 50274.

• IEC Magnetic Contactor
• 24VDC coil
• Screw terminals

Product Highlights

This Siemens contactor is ideal for switching resistive loads in various applications. It offers reliable performance in a compact design and is approved for worldwide use.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT2325-1BB40
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• MPN: 3RT2325-1BB40
• Item Model Number: 3RT2325-1BB40
• Full Load Amp-Resistive: 35
• Voltage: 24VDC
• Poles: 4
• Terminal Type: Screw Terminal
• Mounting Type: Chassis Mount, DIN Rail
• Series: 3RT Series
• Number of Poles: 4
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Temperature Operating Range: -25 to 60 C
• Voltage Rating: 24 V
• Power Rating: 20 kW W
• Primary Type: IEC Contactor
• Type: General Purpose Contactors
• Size: S0 in
• Standards: CAC, CE Recognized, CSA Certified, EAC Certified, GOST Certified, IEC 60947-5-1, UL listed
• Termination: screw
• Horsepower Rating: 15 hp
• Control Voltage: 24 V
• Contact Current Rating: 35 A
• Contact Form: 4PST-NO (4 Form A)
• Contact Rating (Current): 35 A
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Operating Temperature: -25°C ~ 60°C
• Coil Voltage: 24VDC
• Must Operate Voltage: 19.2 VDC
• Coil Current: 245.8 mA
• Coil Power: 5.9W
• Coil Resistance: 97.6Ohms
• Base Product Number: 3RT2325
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• ECCN: EAR99
• Main Power Pole Contact Form: 4NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Full Load Current - Inductive: 16
• Horsepower @ Single Phase - 120V AC: 1
• Horsepower @ Single Phase - 240V AC: 3
• Horsepower @ Three Phase - 208V AC: 5
• Horsepower @ Three Phase - 240V AC: 5
• Horsepower @ Three Phase - 480V AC: 10
• Horsepower @ Three Phase - 600V AC: 15
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Overall Height: 5.1
• Overall Width: 4.7
• Overall Depth: 4.3
• Mounting Postion: Vertical
• Mechanical Operating Durability: 10,000,000
• Applications: Contactors for switching motors
• Connection Type: Screw Connection
• Contact Configuration: 4 NO
• Contact Rating: A600 / Q600
• Number of Phases: 4 Phase
• TC Connection: screw-type terminals
