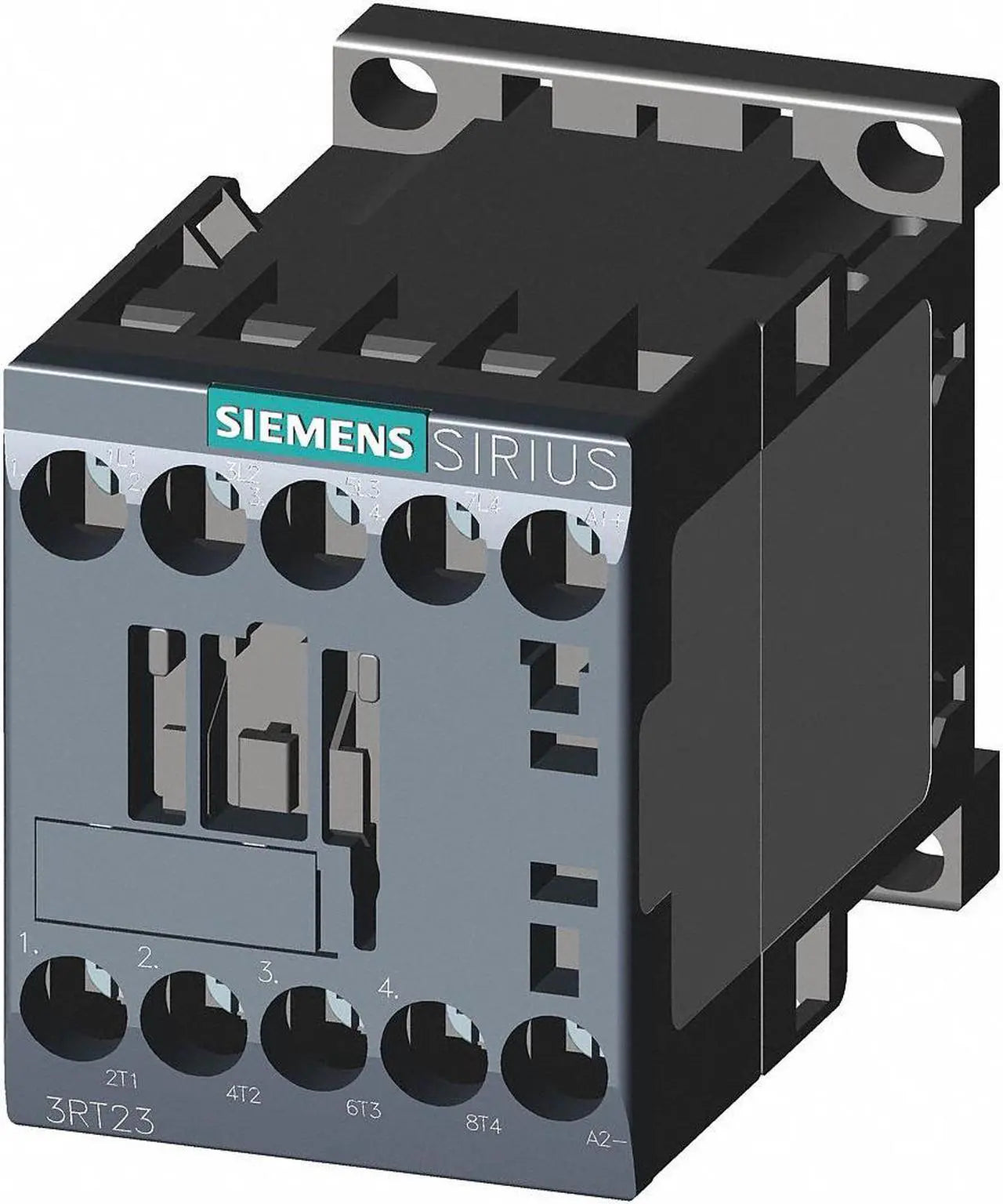

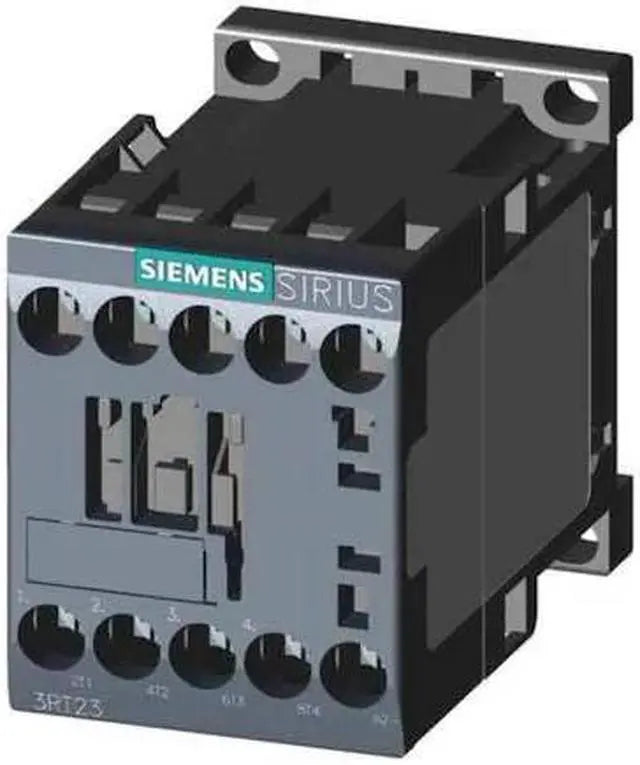

Siemens 3RT23161BB40 Contactor Res S00 12kW/400V

Product Description

The SIEMENS 3RT23161BB40 contactor is designed for switching resistive loads AC-1 and making contactor assemblies with a mechanical interlock for system transfers. This 4-pole contactor features screw terminals and is suitable for use in any climate. It is finger-safe according to EN 50274. The contactor has a power rating of 12kW at 400V.

• Contactor with AC-1 rating
• 4-pole configuration
• Screw terminals for easy connection

Product Highlights

This Siemens contactor is ideal for switching resistive loads in various applications. It offers a compact design and reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT23161BB40
• Country of Origin: Germany

Technical Specifications

• GTIN: 00662643917260
• Size: S00
• Type: 3RT2 contactor
• Brand: Siemens
• Width: 1.970 in
• Height: 3.08 Inch
• Length: 2.45 Inch
• Sub Brand: SIRIUS
• Product UPC: 66264391726
• 12-Digit UPC: 662643917260
• Applications: Contactors for switching motors
• TC Connection: screw-type terminals
• Connection Type: Screw Connection
• Number of Phases: 4 Phase
• Country of Origin: Germany
• Operating Temperature: -25 to 60 C
• Item: IEC Magnetic Contactor
• Full Load Amps-Resistive: 18 A
• Number of Poles: 4
• Coil Volts: 24V DC
• Reversing: No
• HP @ 1 Phase - 120V: 1/3 hp
• HP @ 1 Phase - 240V: 1 hp
• HP @ 3 Phase - 208V: 2 hp
• HP @ 3 Phase - 240V: 3 hp
• HP @ 3 Phase - 480V: 5 hp
• HP @ 3 Phase - 575V: 7 1/2 hp
• Aux. Contact Configuration: 4NO
• Enclosure NEMA Rating: No Enclosure
• Depth: 2.87 in
• Frame / Series / Class / Code: S00
• Model / MPN: 3RT2316-1BB40
• MPN: 3RT23161BB40
• Product Type: ELECTRONIC_COMPONENT
• Manufacturer: Siemens
• Product Group: BISS
• Number of Items: 1.0
• UNSPSC Code: 39120000
• Contact Current Rating: 18 A
• Control Voltage: 24 V
• Horsepower Rating: 8 hp
• Power Rating: 11 kW W
• Primary Type: IEC Contactor
• Series: SIRIUS 3RT23
• Terminal Type: Screw Terminal
• Termination: screw
• Voltage Rating: 24 V
• Part Number #: 3RT23161BB40
• SKU #: 2272160
• Coil Power Rating: 4 W
• Contact Configuration: 1NC-1NO
• Auxiliary Contacts: 2
• Enclosure: IP20 Enclosure
• Operating Cycles: 30000000 Cycles
• Mounting: Rail/Snap-On/Threaded Mounting
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Packaging: Bulk
• Part Status: Active
• Mounting Type: Chassis Mount, DIN Rail
• Contact Form: 4PST-NO (4 Form A)
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Termination Style: Screw Terminal
• Must Operate Voltage: 19.2 VDC
• Must Release Voltage: -
• Contact Material: -
• Coil Current: 166.7 mA
• Coil Resistance: 144Ohms
• Base Product Number: 3RT2316
• Contactor Style: IEC
• Reversing Capability: Non-Reversing
• Main Power Pole Contact Form: 4NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: None
• Full Load Current - Inductive: 9 A
• Nominal Coil Voltage @ 60Hz: 24V DC
• Horsepower @ Single Phase - 120V AC: 1/3 hp
• Horsepower @ Single Phase - 240V AC: 1 hp
• Horsepower @ Three Phase - 208V AC: 2 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 5 hp
• Horsepower @ Three Phase - 600V AC: 7-1/2 hp
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Mounting Postion: Vertical
• Mechanical Operating Durability: 30,000,000
• Minimum Operating Temperature: -25 °C
• Maximum Operating Temperature: 60 °C
• UNSPSC: 39121529
• Terminal Connection Type: Screw Terminals
• Mounting Style: DIN Rail, Surface
• Number of Auxillary Contacts: 4
• Auxiliary Contact Form: Not Applicable
