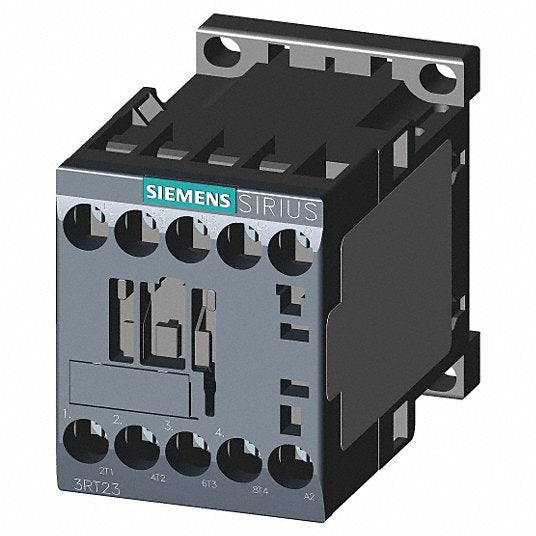

Siemens 3RT23161AK60 Sirius 3Rt 4 Pole Contactor, 18 A, 18 Kw, 110 V Ac@ 50 Hz, 120 V Ac@ 60 Hz Coil

Product Description

The SIEMENS 3RT23161AK60 Sirius 3RT contactors are suitable for use in any climate and are finger-safe according to EN 50274. These IEC contactors connect and disconnect power to motors and other high-current equipment and machinery in a single direction. They combine with overload relays to create motor load starters and provide overload protection.

• 4-Pole
• DIN Rail for TH 35
• Screw Termination

Product Highlights

The SIEMENS Sirius 3RT23161AK60 contactor is ideal for switching resistive loads and making contactor assemblies with a mechanical interlock for system transfers.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT23161AK60
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 3RT23161AK60
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Type: Chassis Mount, DIN Rail
• Series: 3RT Series
• Number of Poles: 4
• Maximum Operating Temperature: 140 °F
• Minimum Operating Temperature: -13 °F
• Temperature Operating Range: -25 to 60 C
• Voltage Rating: 110 V
• Terminal Type: Screw Terminal
• UPC Code: 662643917246
• Power Rating: 11 kW W
• Primary Type: IEC Contactor
• Type: General Purpose Contactors
• Dimensions: 0.00 in W X 2.26 in L X 0.08 in D
• Size: S00 in
• Standards: REACH Art 33; WEEE (2012/19/EU)
• Termination: screw
• Horsepower Rating: 8 hp
• Control Voltage: 120 V
• Contact Current Rating: 18 A
• Brand: SIEMENS
• Category: Relays
• Full Load Current - Resistive: 18 A
• Coil Voltage: 120VAC
• Frequency: 50/60 Hz
• Nominal Coil Voltage @ 60Hz: 120V AC
• Wire Termination Type: Screw
• IP Rating: IP20
• Overall Height: 1.95 in
• Overall Width: 2.45 in
• Overall Depth: 3.25 in
• Mounting Postion: Vertical
• Mechanical Operating Durability: 30,000,000
• Operating Temperature: -25°C ~ 60°C
• Switching Voltage: 690VAC - Max
• Contact Form: 4PST-NO (4 Form A)
• Coil Power: 26.4VA
• Part Status: Active
• Must Operate Voltage: 96 VAC
• Operate Time: 35 ms
• Release Time: 14 ms
• Current Type: AC
• Number of Ports: 3
• Mounting Style: Screw
• Model: Sirius
• Full Load Current - Inductive: 9 A
• Horsepower @ Single Phase - 120V AC: 1/3 hp
• Horsepower @ Single Phase - 240V AC: 1 hp
• Horsepower @ Three Phase - 208V AC: 2 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 5 hp
• Horsepower @ Three Phase - 600V AC: 7-1/2 hp
• Integrated Surge Suppression: No
• NEMA Enclosure Rating: No
• Reversing Capability: Non-Reversing
• Main Power Pole Contact Form: 4NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 2NO/2NC
• Coil Power Rating: 4.4/26.4 VA
• Application: For switching resistive loads AC-1 and making contactor assemblies with a mechanical interlock for system transfers
