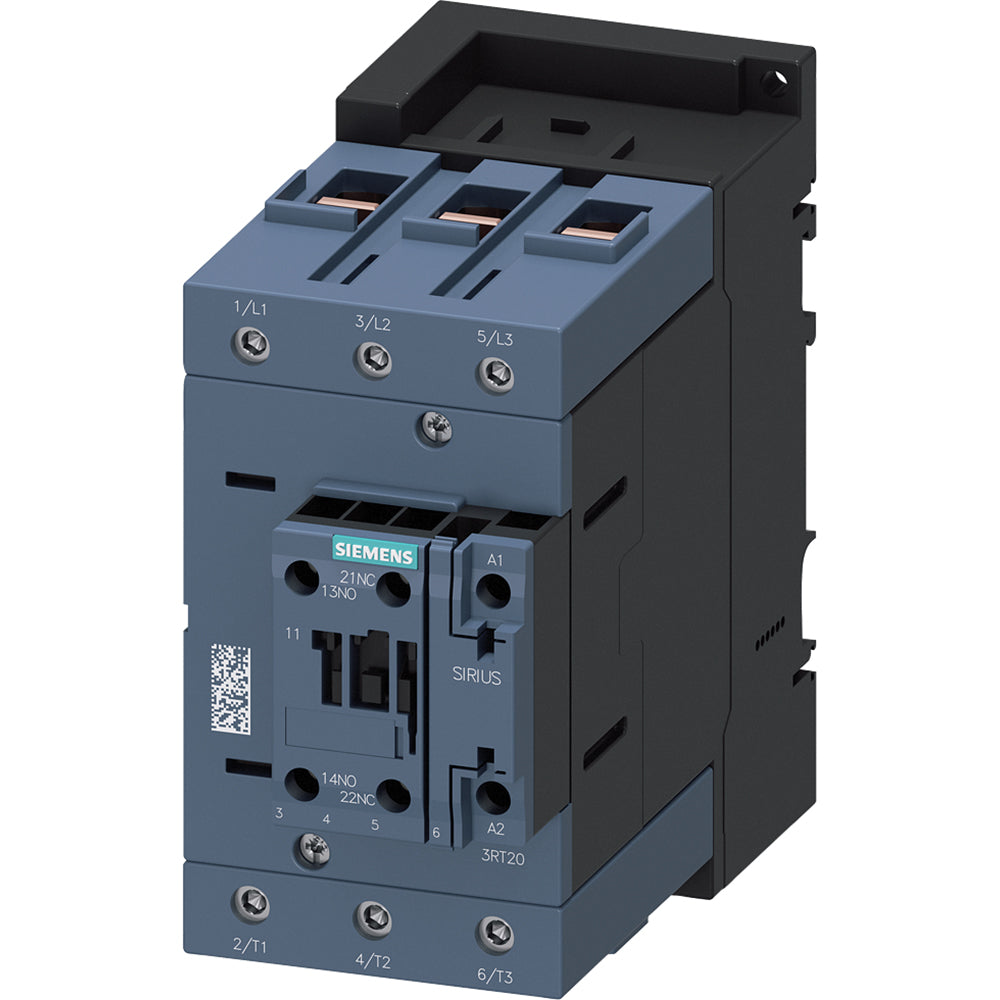

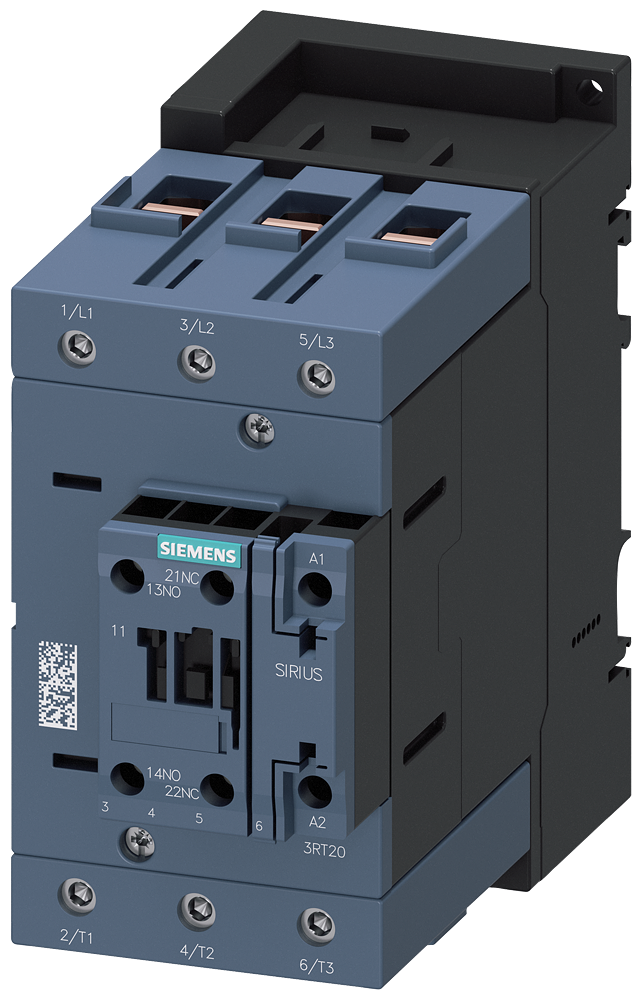

Siemens 3RT20471AP60 Contactor AC-3 55 kW (Size S3) 3RT2047-1AP60

Product Description

The Siemens 3RT20471AP60 is an electromechanical AC-3 contactor (MPN 3RT20471AP60) rated for motor switching up to 55 kW at 400 V. It includes a 220 VAC 50 Hz / 240 VAC 60 Hz AC coil, a three-pole main contact arrangement with screw terminations, and auxiliary contacts documented as 1 NO + 1 NC (main contacts referenced as 3 NO). Size S3 construction is intended for industrial motor control and switching applications.

• AC-3 rating: 55 kW at 400 V for motor switching
• Coil: 220 VAC 50 Hz / 240 VAC 60 Hz (AC); screw coil termination
• Three-pole main contacts (3 NO) with 1 NO + 1 NC auxiliary; size S3; screw contact termination

Product Highlights

AC-3 motor contactor, 55 kW at 400 V; 220/240 VAC coil; 3-pole S3 with 1 NO + 1 NC auxiliary; screw terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20471AP60
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3RT20471AP60
• Alternate Part Number: 3RT2047-1AP60
• Product Type: Electromechanical contactor
• Series: 3RT2
• Trade name: SIRIUS
• AC-3 rating: 55 kW at 400 V
• Coil Voltage: 220 VAC 50 Hz / 240 VAC 60 Hz
• Coil Type: AC
• Contact Form (main): 3 Form A (3 NO)
• Auxiliary Contacts: 1 NO + 1 NC
• Number of Poles: 3
• Number of Phases: 3 Phase
• Contact Current Rating: 110 A
• UL Continuous Amps: 110 A
• Switching Voltage: 690 VAC
• Coil Termination: Screw
• Contact Termination: Screw
• Size: S3
• Mounting Style: DIN rail mount
• IP Rating: IP20
• Enclosure Type: IP00/IP20 (referenced)
• Operating Temperature Range: -25 C to +60 C
• Maximum Operating Temperature: +60 C
• Dimensions (H x W x D): 5.51 x 5.98 x 2.76 inches (140 x 152 x 70 mm) (H x W x D)
• Weight: 3.79 lb
• Country of Origin: Germany
• RoHS: Compliant
• Datasheet: https://www.mouser.com/datasheet/3/5917/9/3RT20471AP60_datasheet_en.pdf
• UNSPSC Code: 39120000
• Mouser Part Number: 982-3RT20471AP60
• UPC: 80476640539
• Country of Manufacture: Germany
