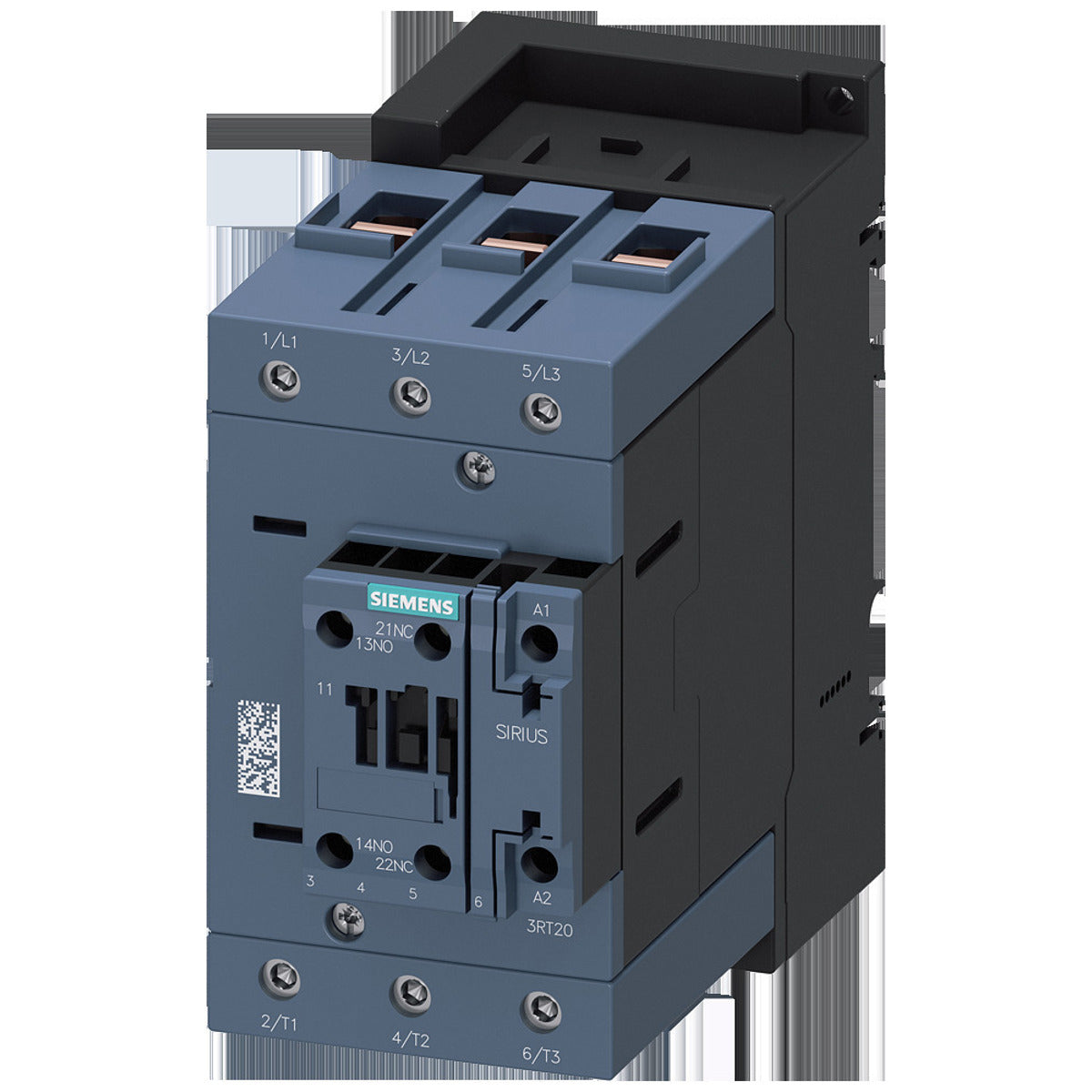

Siemens 3RT20461AK600UA0 Contactor AC3 45KW/400v 1NO+1NC 110VAC 50HZ/120v 60HZ Size S3

Product Description

The SIEMENS 3RT20461AK600UA0 is a contactor designed for AC3 applications, rated at 45kW/400V, and includes 1NO+1NC contacts. It operates on 110VAC at 50Hz or 120V at 60Hz. This 3-pole contactor features 3NO contacts, is size S3, and uses screw terminals. It is suitable for motor control applications and supports up to 45 kW motor load at 400 V.

• Rated current of 95A
• Coil voltage of 110/120 VAC, 50/60 Hz
• Operating temperature range of -25 to 60 deg C

Product Highlights

This Siemens contactor is designed for reliable motor control with a 95A rating and 110/120 VAC coil voltage.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20461AK600UA0
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT20461AK600UA0
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Made in USA: No
• UPC: 804766407420
• GTIN: 00804766407420
• Coil Power Rating: 45 kW
• Coil Voltage: 110/120 V AC
• Contact Configuration: 3NO main contacts, 1NO + 1NC auxiliary contacts
• Enclosure Type: IP00/IP20
• Frequency Rating: 50/60 Hz
• Number of Auxiliary Contacts: 1NO-1NC
• Number of Poles: 3
• Operating Temperature: -25 to 60 deg C
• Size: SZ S3
• Terminal Type: Screw terminals
• Mounting type: Surface mount
• Rated Current: 95 A
• Motor Power Rating: 45 kW at 400 V
• NEMA Size: 3
• Control Circuit Power Factor: 0.62/0.55 (closing), 0.36/0.4 (holding)
• UNSPSC: 39121529
• Category: Motor Control
• Item Subcategory: Contactors
• Section: Contactors
