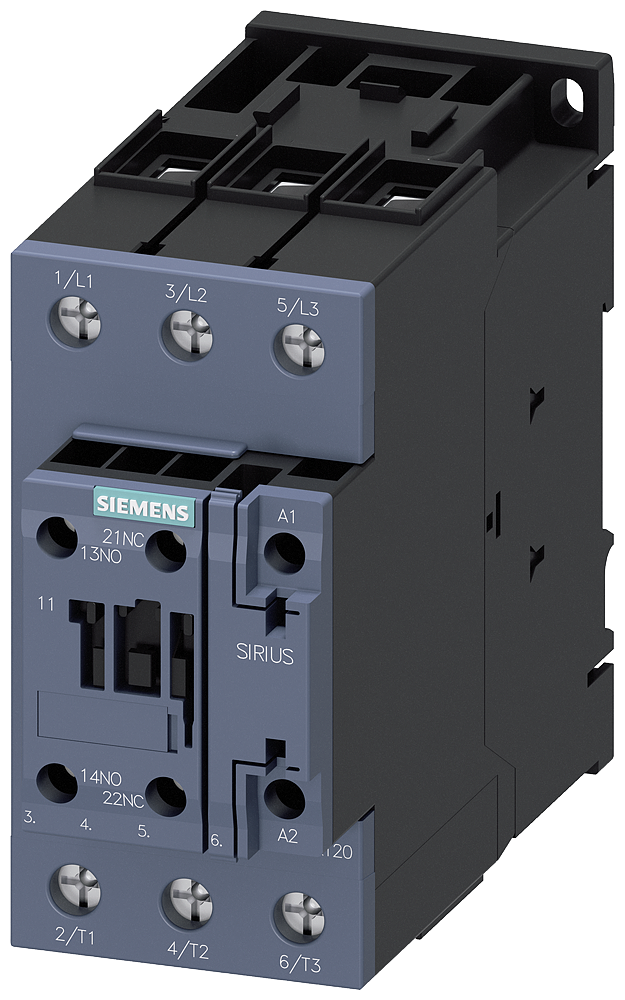

Siemens 3RT20371AV60 Power Contactor, 480 VAC V Coil, 65 A, 1NC-1NO Contact, 3 Poles

Product Description

The Siemens 3RT20371AV60 is a reliable power contactor designed for use in industrial control applications. With a coil voltage of 480 VAC and a current rating of 65 A, this contactor effectively manages electrical circuits.

• Coil Power Rating of 212 VA Pickup and 18.5 VA Holding
• Features 1NC-1NO contact configuration for versatile applications
• Suitable for surface, threaded, DIN rail, and snap-on mounting

Product Highlights

This power contactor is built to last, with a capability of 10 million operating cycles.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q4265

Technical Specifications

• Coil Voltage: 480 VAC
• Maximum Load Current: 65 A
• Contact Configuration: 1NC-1NO
• Dimensions: 55 mm W x 130 mm D x 114 mm H
• Enclosure Type: IP00/IP20
• Frequency Rating: 60 Hz
• Operating Cycles: 10,000,000
• Operating Temperature: -25 to 60 degrees C
• Power Factor: 0.67 Closing, 0.37 Holding
• Size: S2
• Number of Poles: 3
• Mounting Type: Surface/Threaded/DIN Rail/Snap-On
• Terminal Type: Screw
• Wattage: 30 kW
