Product Description

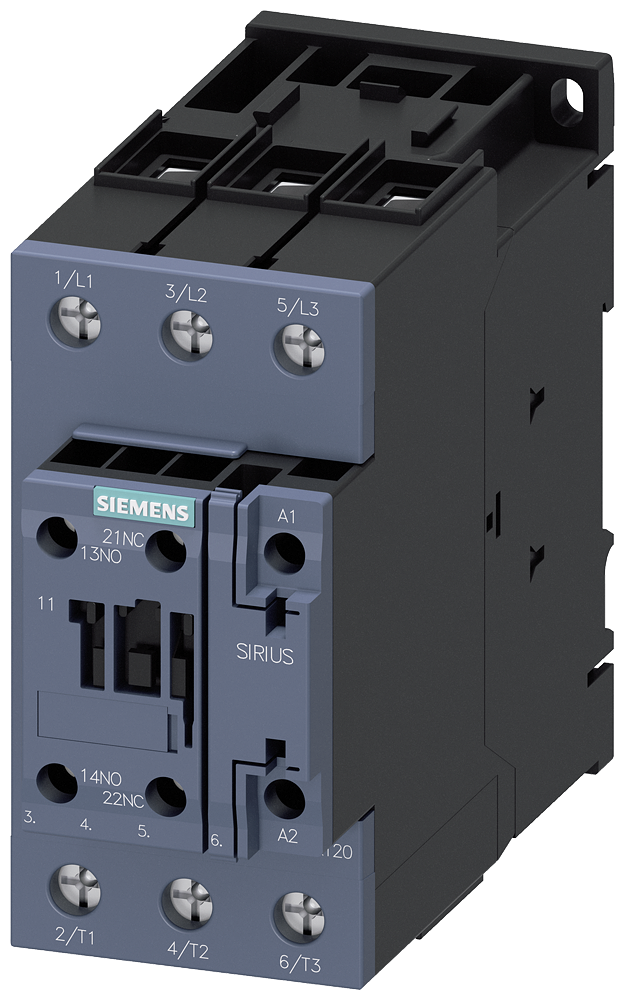

The Siemens SIRIUS 3RT20361KB40 is a 3-phase standard power contactor designed for various industrial applications. It features a varistor and operates on a coil voltage of twenty-four VDC. This unit has a maximum load current of fifty A and includes three normally open contacts.
- Suitable for two A PLC outputs
- High durability with an operating cycle of ten million
- DIN rail mounting for easy installation
Product Highlights
The Siemens 3RT20361KB40 is ideal for controlling and switching loads in industrial settings, ensuring reliable performance in demanding environments.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: Q4264
Technical Specifications
-
Coil Power Rating: 22 kW at 400 V 3-Phase
-
Coil Voltage: 24 VDC
-
Contact Configuration: 3NO
-
Contact Rating: A600/P600
-
Dimensions: 114 mm H x 55 mm W x 130 mm D
-
Enclosure Type: IP00/IP20
-
Maximum Load Current: 50 A
-
Mounting Type: DIN Rail/Snap-On/Threaded
-
Number of Auxiliary Contacts: 1NO-1NC
-
Number of Poles: 3
-
Operating Cycles: 10,000,000
-
Operating Temperature: -25 to 60 deg C
-
Series: 3RT20
-
Size: S2
-
Terminal Type: Screw
-
Type: 3-Phase Standard
-
Wattage: 21.5 W DC Closing, 1 W DC Holding
