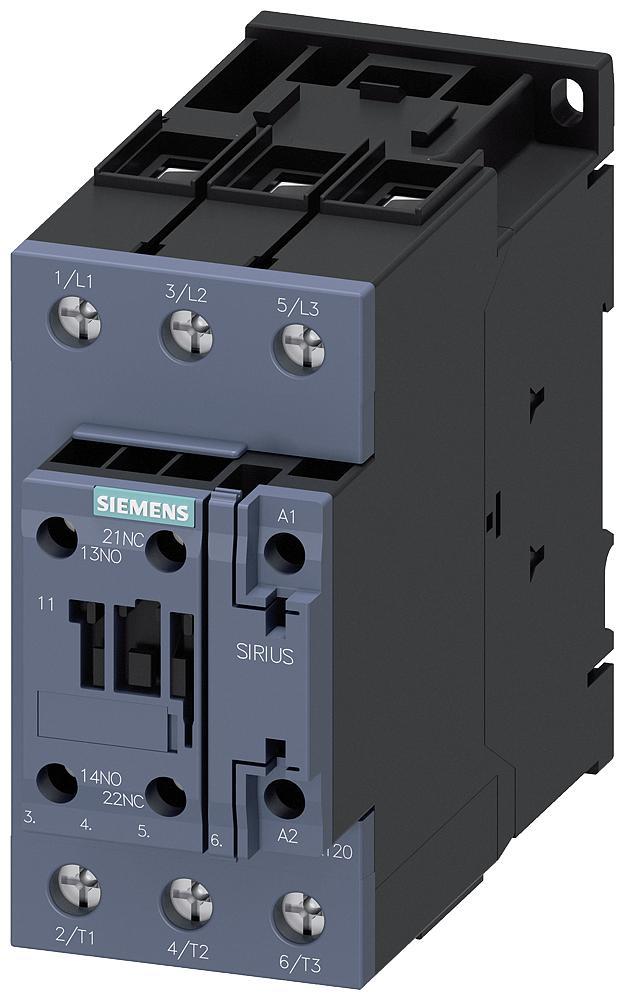

Siemens 3RT20361AN20 Contactor S2 50A 220VAC Screw 1N

Product Description

The SIEMENS 3RT20361AN20 is a power contactor with a 220 V AC coil and a maximum load current of 50 A. It features screw terminals and is designed for chassis mount or DIN rail installation. This contactor is suitable for various industrial applications requiring reliable switching. It has an operating temperature range of -25 to 60 deg C.

• Auxiliary Contacts
• 220 V AC Coil
• Screw Terminals

Product Highlights

The SIEMENS 3RT20361AN20 contactor is ideal for applications needing a robust and efficient electromechanical switching solution.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20361AN20
• Country of Origin: DE

Technical Specifications

• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Switching Voltage: 690VAC - Max
• Manufacturer: Siemens
• Features: Auxiliary Contacts
• Series: SIRIUS
• Termination Style: Screw Terminal
• Operating Temperature: -25 C ~ 60 C
• Part Status: Active
• Must Operate Voltage: 187 VAC
• Mounting Type: Chassis Mount, DIN Rail
• Operate Time: 80 ms
• Coil Voltage: 220 V AC
• Release Time: 18 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 188VA
• Contact Rating (Current): 51 A
• Base Product Number: 3RT2036
• Coil Power Rating: 210/188 VA Pickup, 17.2/16.5 VA Holding
• Contact Configuration: 1NO-1NC
• Enclosure Type: IP00/IP20
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Operating Cycles: 10000000 Cycles
• Size: 2
• Terminal Type: Screw
• Wattage: 22 kW
• Mounting type: Surface/Threaded/DIN Rail/Snap-On
• Power factor: 0.69/0.65 Closing, 0.36/0.39 Holding
• Model: 3RT2036-1AN20
• MPN: 3RT2036-1AN20
• Type: 3RT2036-1AN20
