Siemens 3RT2036-1AM20 Contactor 50 AMP 1NO/1NC Replacement 3RT1036-1AM20

Product Description

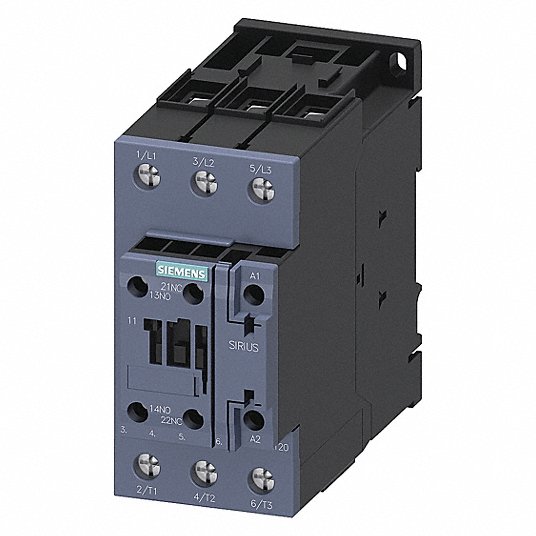

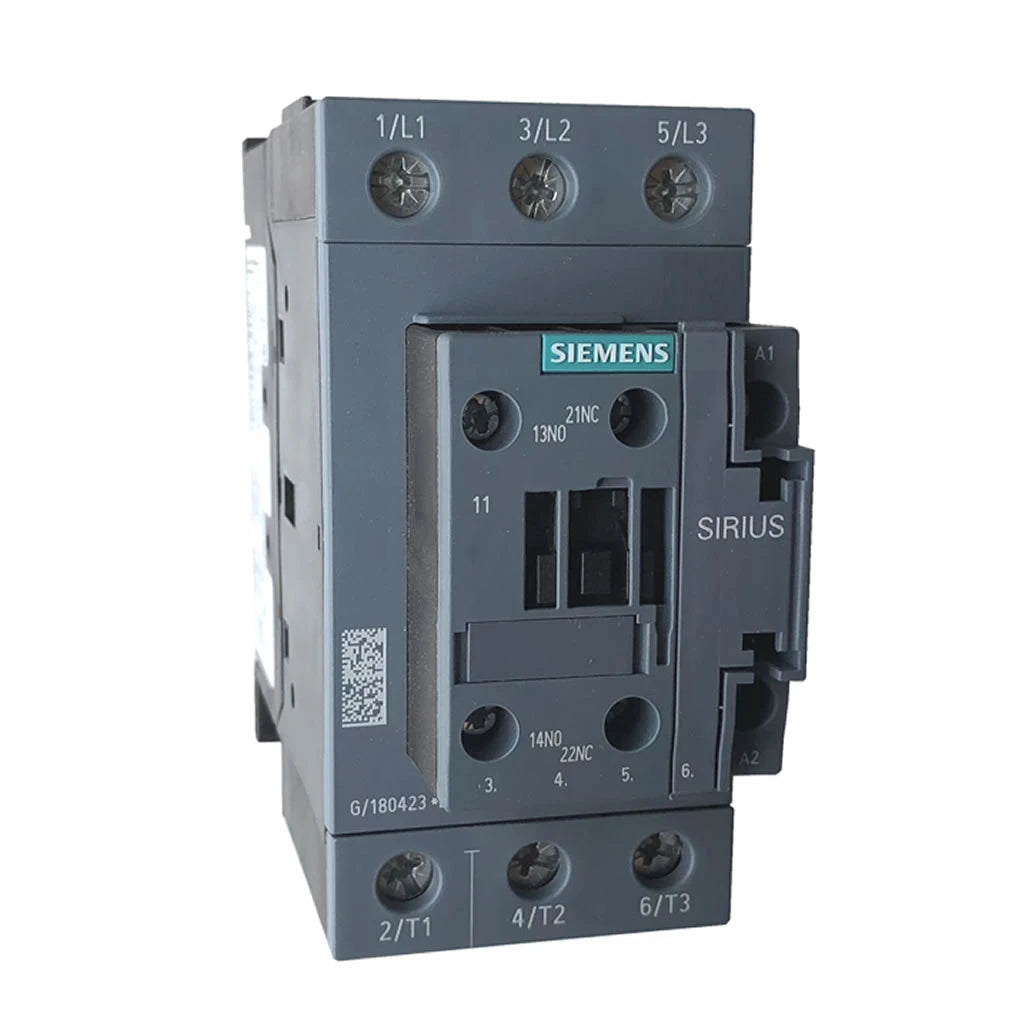

The Siemens 3RT2036-1AM20 Sirius contactor is a 50 AMP size S2 contactor with a 208V 50/60Hz AC coil and 1 N.O./1 N.C. base mounted auxiliary contact. This IEC 3 pole contactor is rated for 15 H.P. @ 230 volt and 40 H.P. @ 460 volt 3 phase. It has screw terminals and mounts on standard 35MM din rail.

• Suitable for use in any climate
• Safe from touch to DIN VDE 0106 Part 100
• Available with screw, spring-type, or ring lug connections

Product Highlights

The Siemens 3RT2036-1AM20 contactor is suitable for electric motors and high-current equipment. It conforms to IEC 60946 and is the electrical and dimensional replacement for the now obsolete 3RT1036-1AM20.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT2036-1AM20
• Country of Origin: Germany

Technical Specifications

• Coil Voltage: 208 volt AC
• AMP Rating: 50 AMP
• Horsepower: 40 H.P. @ 460 volt
• Auxiliaries: 1 normally open, 1 normally closed
• AC OPERATING COIL VOLTAGE: 208V 50Hz / 208V 60Hz
• Frame Size: S2
• AC3 Amp ratings: 50
• AC1 Amp ratings: 70
• Three phase HP ratings 230V: 15
• Three phase HP ratings 460V: 40
• Coil Voltage / AC Voltage 50Hz: 208V
• Coil Voltage / AC Voltage 60Hz: 208V
• Catalog No.: 3RT2036-1AM20
• Part Number: 3RT2036-1AM20
• Manufacturer: Siemens Breakers
• Family: Sirius
• Pole: 3
• Amp: 50
• Volt: 690
• Phase: 3
• Category: Contactors
• Type: 3RT20
• UNSPSC Code: 39120000
• Brand: SIEMENS
• Contact Current Rating: 50 A
• Control Voltage: 208 V
• Manufacturer Part Number: 3RT20361AM20
• Mounting Type: DIN Rail Mount
• Full Load Current - Inductive: 51 A
• Full Load Current - Resistive: 70 A
• Frequency: 50/60 Hz
• Nominal Coil Voltage @ 60Hz: 208V AC
• Maximum Voltage Rating: 690V AC
• Horsepower @ Single Phase - 120V AC: 3 hp
• Horsepower @ Single Phase - 240V AC: 10 hp
• Horsepower @ Three Phase - 208V AC: 15 hp
• Horsepower @ Three Phase - 240V AC: 15 hp
• Horsepower @ Three Phase - 480V AC: 40 hp
• Horsepower @ Three Phase - 600V AC: 50 hp
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Overall Height: 5.59 in
• Overall Width: 2.44 in
• Overall Depth: 4.82 in
• Mounting Postion: Vertical
• Mechanical Operating Durability: 10,000,000
• Minimum Operating Temperature: -13 °F
• Maximum Operating Temperature: 140 °F
• Standards: REACH Art 33; WEEE (2012/19/EU)
• UNSPSC: 39121529
• Series: SIRIUS
• Contactor Style: IEC
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Main Power Pole Contact Form: 3NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
