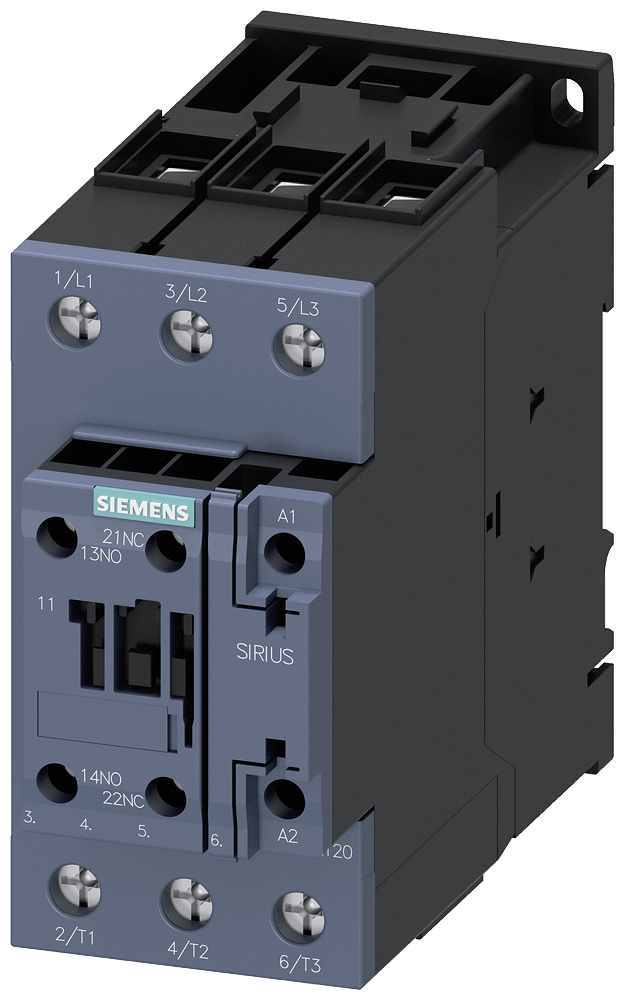

Siemens 3RT20351KB40 IEC Contactor With Varistor, 24 VDC Coil, 40 A, 3NO Contact, 3 Poles

Product Description

The Siemens 3RT20351KB40 is an IEC contactor designed for industrial control applications. It features a twenty-four VDC coil, accommodating a maximum load current of forty amperes. The product has three normally open contacts and is suitable for various mounting types including DIN rail, snap-on, and threaded.

• Voltage rating: 24 VDC.
• High load capacity: 40 A.
• Three poles with three normally open contacts.

Product Highlights

This contactor can be retrofitted with various suppression devices to enhance performance and protect against voltage surges. It ensures reliable operation in various environments.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q4262

Technical Specifications

• Coil Voltage: 24 VDC
• Contact Configuration: 3NO
• Contact Rating: A600/P600
• Dimensions: 114 mm H x 55 mm W x 130 mm D
• Enclosure Type: IP00/IP20
• Maximum Load Current: 40 A
• Mounting Type: DIN Rail/Snap-On/Threaded
• Number of Auxiliary Contacts: 2
• Number of Poles: 3
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -25 to 60 deg C
• Size: SZ 2
• Terminal Type: Screw
• Wattage: 18.5 kW
