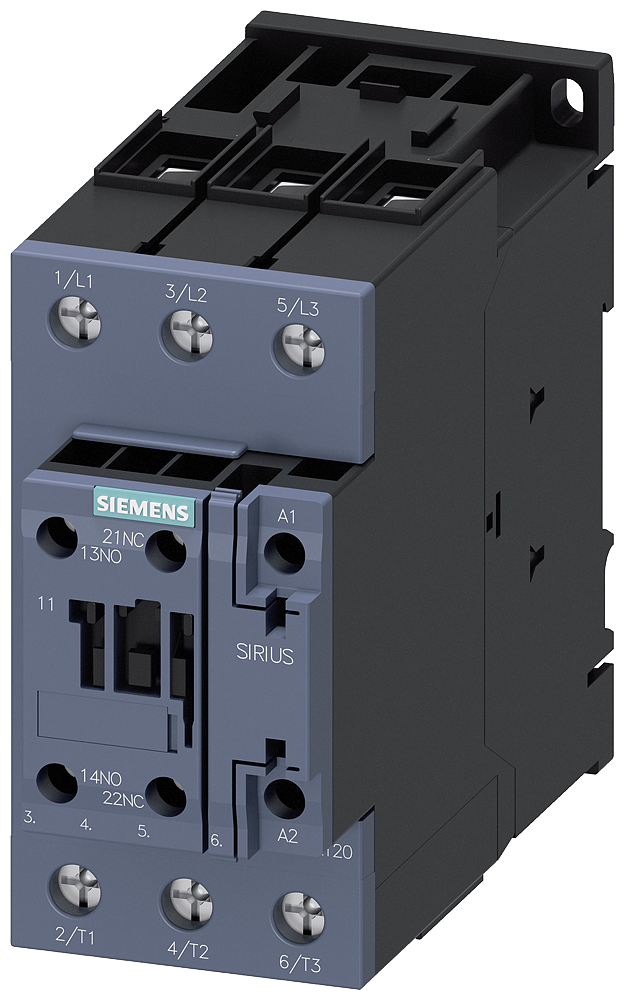

Siemens 3RT20351AV60 SIRIUS 3-Phase Standard Power Contactor 480 VAC Coil 40 A 3NO Contact

Product Description

Siemens offers the 3RT20351AV60 which is designed as a 3-phase standard power contactor. This model features a 480 VAC coil and is suitable for applications requiring a maximum load current of 40 A.

• Coil voltage of 480 VAC
• Configured with 3 normally open contacts
• Maximum operating temperature of sixty degrees Celsius

Product Highlights

The Siemens 3RT20351AV60 is ideal for controlling motors and other electrical loads in commercial and industrial applications. Its compact design and reliable performance make it suitable for various mounting types including DIN rail.

Product Information

Standard Information

• Brand: Siemens
• Part Number: Q4261

Technical Specifications

• Coil Power Rating: 18.5 kW at 400 V 3-Phase
• Contact Configuration: 3NO
• Contact Rating: A600/P600
• Enclosure Type: IP00/IP20
• Frequency Rating: 60 Hz
• Max Load Current: 40 A
• Dimensions: 114 mm H x 55 mm W x 130 mm D
• Mounting Type: DIN Rail/Snap-On/Threaded
• Number of Poles: 3
• Operating Cycles: 10,000,000
• Operating Temperature: -25 to 60 degrees Celsius
• Power Factor: 0.37/0.67
• Size: S2
• Terminal Type: Screw
• Wattage: 212 VA Pickup, 18.5 VA Holding
