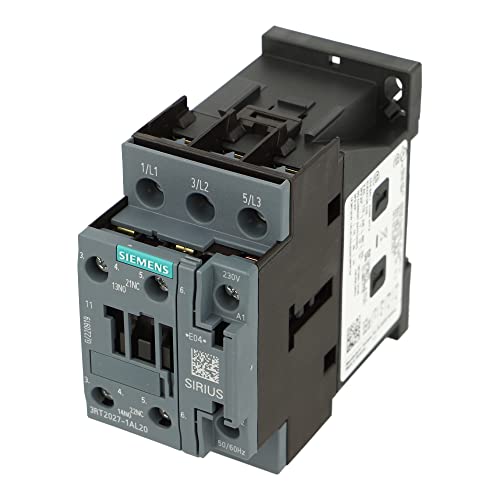

Siemens 3RT20271AL20 Contactor S0 32A 15KW/400V 1NO+1NC AC 230V 50/60HZ 3-Pole Screw Terminals

Product Description

The Siemens 3RT20271AL20 Contactor S0 32A is a reliable contactor designed for industrial applications. This device has a 15KW/400V rating with a 1NO+1NC configuration. It operates with 230V at 50/60HZ across a 3-pole setup, employing screw terminals for secure connections.

• Reliable performance
• Easy to install
• Long-lasting durability

Product Highlights

The Siemens 3RT20271AL20 Contactor S0 is built for use in motor control and power distribution. The compact size and screw terminals make it easy to install and maintain. It features a high operational efficiency, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Catalog Number: 3RT20271AL20
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany

Technical Specifications

• Power Rating: 14.709 kW
• Width: 3.500 inches
• Height: 3.55 inches
• Length: 4.15 inches
• Weight: 1.010 lbs
• UPC: 662643915747
• Connection Type: Screw Connection
• Coil Voltage: 230 VAC
• Number of Poles: 3
• Auxiliary Contacts: 1NO+1NC
• Rated Operation Power, AC-3, 400V: 15 kW
• Rated Operating Current, AC-3, 400V: 32 amps
• Standards: CCC, CSA, EAC, RCM, UL
