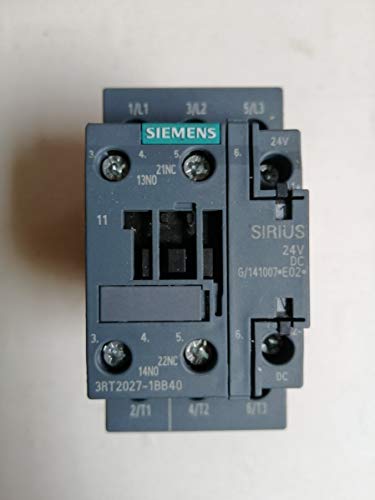

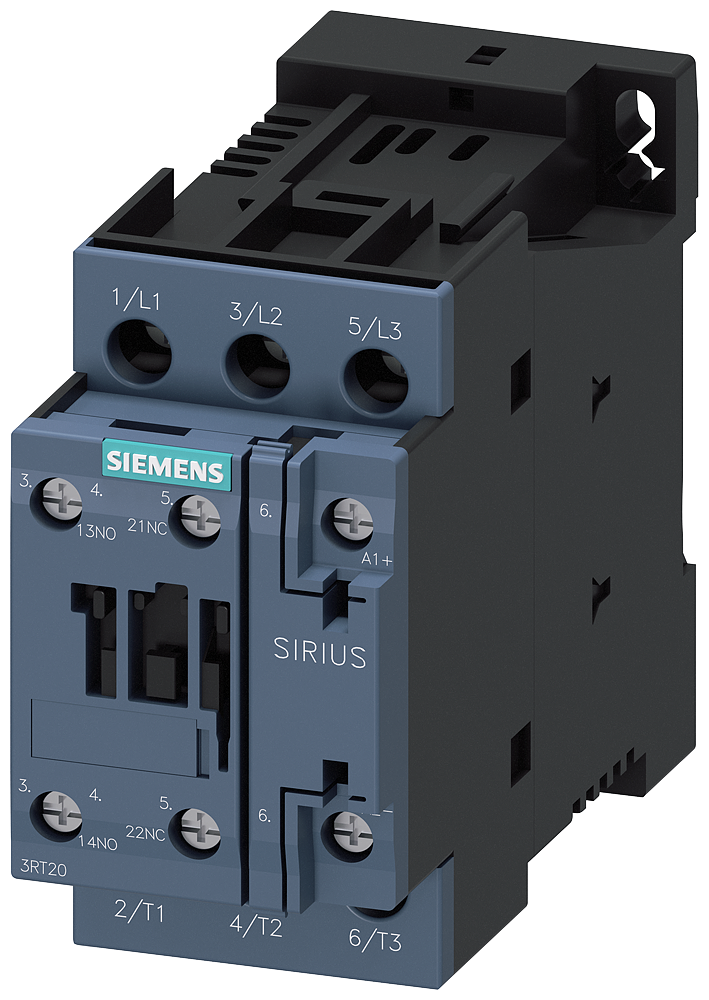

Siemens 3RT2027-1BB40 32 Amp 3-Pole 400 Volt Contactor

Product Description

The Siemens 3RT2027-1BB40 is a 32 Amp, 3-pole, 400 Volt contactor designed for switching motors. This contactor is a part of the modular SIRIUS system, which features optimally coordinated products for various applications.

• 32 Amp, 3-pole
• 400 Volt, 24 VDC
• Screw terminals

Product Highlights

This Siemens contactor is configured with 1NO and 1NC contacts, suitable for industrial applications. It supports easy integration and reliable performance with screw terminal connections.

Product Information

Standard Information

• Catalog Number: 3RT2027-1BB40
• Manufacturer: Siemens
• Brand: Siemens Industrial Controls

Technical Specifications

• Size: S0
• Type: 3RT2 contactor
• Voltage: 24 VDC
• Amperage: 32 Amp
• Sub Brand: Sirius
• Applications: For Switching Motors
• Power Rating: 14.709 kW
• Mounting Type: Screw/Snap-On/35 mm Standard DIN Rail/Vertical
• TC Connection: Screw-type terminals
• Contact Rating: A600 / Q600
• Connection Type: Screw Connection
• Number of Phases: 3 Phase
• Operating Temperature: -25 to 60 degrees C
• Contact Configuration: 1 NO, 1 NC
• Country of Origin: Germany
