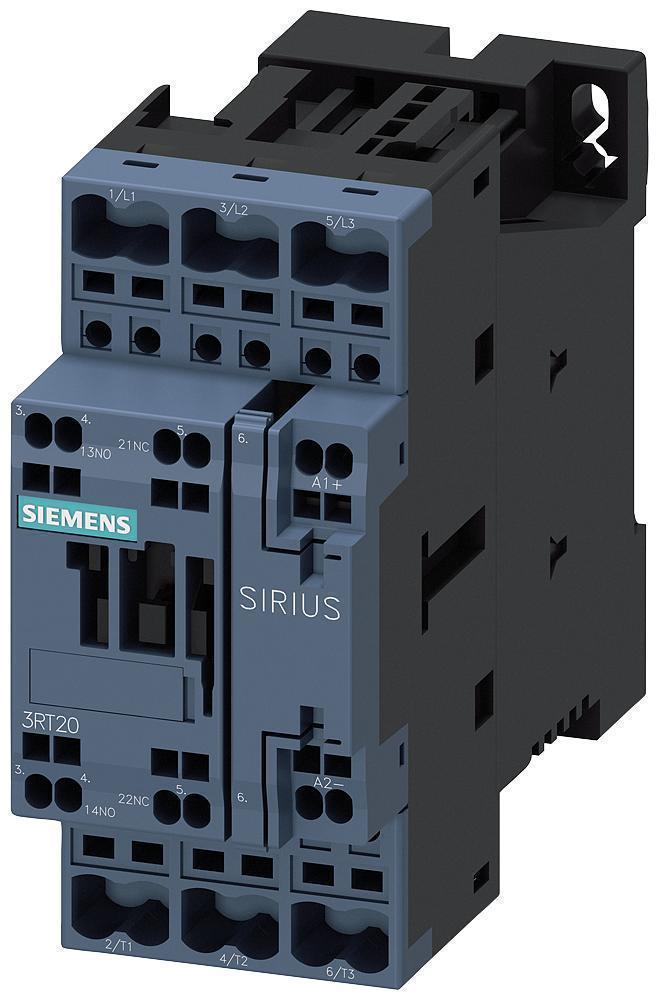

Siemens 3RT20262NB30 Sirius Power Contactor 25 A

Product Description

The SIEMENS 3RT20262NB30 SIRIUS Power Contactor is a 3-Phase non-reversing contactor with a 21 to 28 V AC/DC coil and a maximum load current of 25 A. It is designed for switching motors and features a spring loaded terminal. It has an IP20 enclosure and an operating temperature range of -25 to 60 deg C.

• Can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies for damping opening surges in the coil
• Space is provided for them next to a snap-on auxiliary switch block
• For switching motors

Product Highlights

The SIEMENS SIRIUS Power Contactor is a reliable and efficient solution for motor switching applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20262NB30
• Country of Origin: DE

Technical Specifications

• Coil Voltage: 21 to 28 V AC/DC
• Type: 3-Phase Non-Reversing
• Size: SZ 0
• UL Cont. Amps: 25A
• Poles: 3
• Hp 1-Phase 115V: 2 Hp
• Hp 1-Phase 230V: 3 Hp
• Hp 3-Phase 200V: 7.5 Hp
• Hp 3-Phase 230V: 7.5 Hp
• Hp 3-Phase 460V: 15 Hp
• Hp 3-Phase 575V: 20 Hp
• Enclosure Type: IP20
• Auxiliary Contacts: (1) NO (1) NC
• Contact Configuration: 3NO
• Contact Rating: A600/Q600
• Frequency Rating: 40 to 60 Hz
• Number of Auxiliary Contacts: 2
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -25 to 60 deg C
• Terminal Type: Spring Loaded
• Mounting type: DIN Rail/Snap-On/Threaded
• Construction Standard: I.E.C. 600V AC
• Wattage: 11 kW
