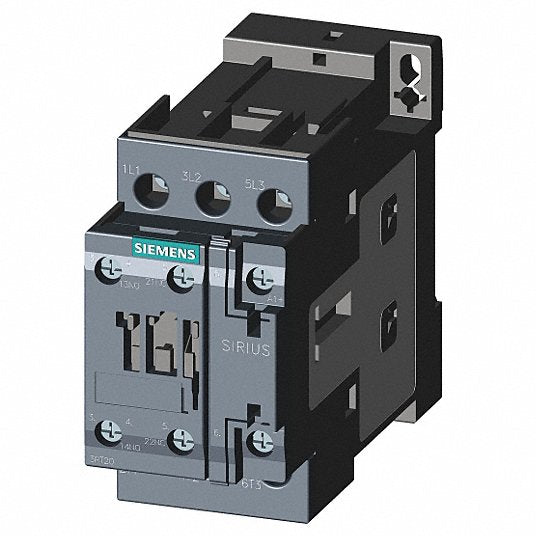

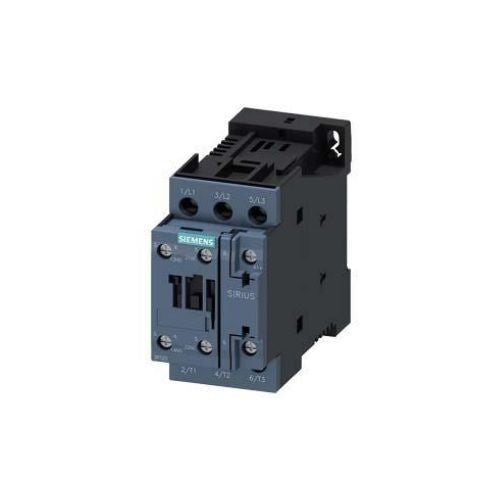

Siemens 3RT20251BB40 iec Magnetic Contactor, 24V, 3 Pole, Non-Reversing, 16 A, 1NO 1NC

Product Description

The SIEMENS 3RT20251BB40 IEC magnetic contactor is designed for switching motors. This 3-pole contactor features DIN rail mounting and screw termination. It has a contact voltage of 600 VAC and a coil voltage of 24V DC. Suitable for use in general purpose applications.

• 3-Pole
• DIN Rail
• Screw Termination

Product Highlights

The SIEMENS 3RT20251BB40 is a reliable IEC contactor for motor switching applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20251BB40
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 3RT20251BB40
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Type: DIN Rail Mount
• Series: 3RT2
• Number of Poles: 3
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -13 °F
• Temperature Operating Range: -25 to 60 C
• Voltage Rating: 24 V
• Terminal Type: Screw Terminal
• UPC Code: 662643914344
• Power Rating: 7.5 kW W
• Primary Type: IEC Contactor
• Type: General Purpose Contactors
• Dimensions: 0.00 in W X 3.35 in L X 0.12 in D
• Size: S0 in
• Standards: REACH Art 33; WEEE (2012/19/EU)
• Termination: screw
• Horsepower Rating: 25 hp
• Control Voltage: 24 V
• Contact Current Rating: 16 A
• ASIN: B00DEDZBZY
• Date First Available: May 7, 2021
• Contactor Style: IEC
• Reversing Capability: Non-Reversing
• Main Power Pole Contact Form: 3NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Phase: Three
• Full Load Current - Inductive: 17 A
• Full Load Current - Resistive: 40 A
• Coil Voltage: 24V DC
• Nominal Coil Voltage @ 60Hz: 24V DC
• Maximum Voltage Rating: 690V AC
• Horsepower @ Single Phase - 120V AC: 1 hp
• Horsepower @ Single Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 208V AC: 5 hp
• Horsepower @ Three Phase - 240V AC: 5 hp
• Horsepower @ Three Phase - 480V AC: 10 hp
• Horsepower @ Three Phase - 600V AC: 15 hp
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Enclosure: None
• Frame Size: S0
• Overall Height: 3.6 in
• Overall Width: 2.15 in
• Overall Depth: 4.5 in
• Mounting Postion: Vertical
• Mechanical Operating Durability: 10,000,000
• UNSPSC: 39121529
• Maximum Load Current: 17 A
• Number of Auxiliary Contacts: 2
• Operating Cycles: 10000000 Cycles
• Wattage: 7.5 kW
• Application: Switching Motors Applications
• Standard & Approvals: CCC Certified, CSA Certified, CE Certified, C-Tick Approved, VDE Approved, UL Listed
• Coil Power Rating: 5.9 W Closing/Holding
• Contact Configuration: 3NO
• EANUCC13: 4011209832459
• Enclosure Type: IP20
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Termination Style: Screw Terminal
• Packaging: Bulk
• Must Operate Voltage: 19.2 VDC
• Coil Current: 245.8 mA
• Coil Power: 5.9W
• Contact Form: 3PST-NO (3 Form A)
• Coil Resistance: 97.6Ohms
• Contact Rating (Current): 17 A
• Base Product Number: 3RT2025
