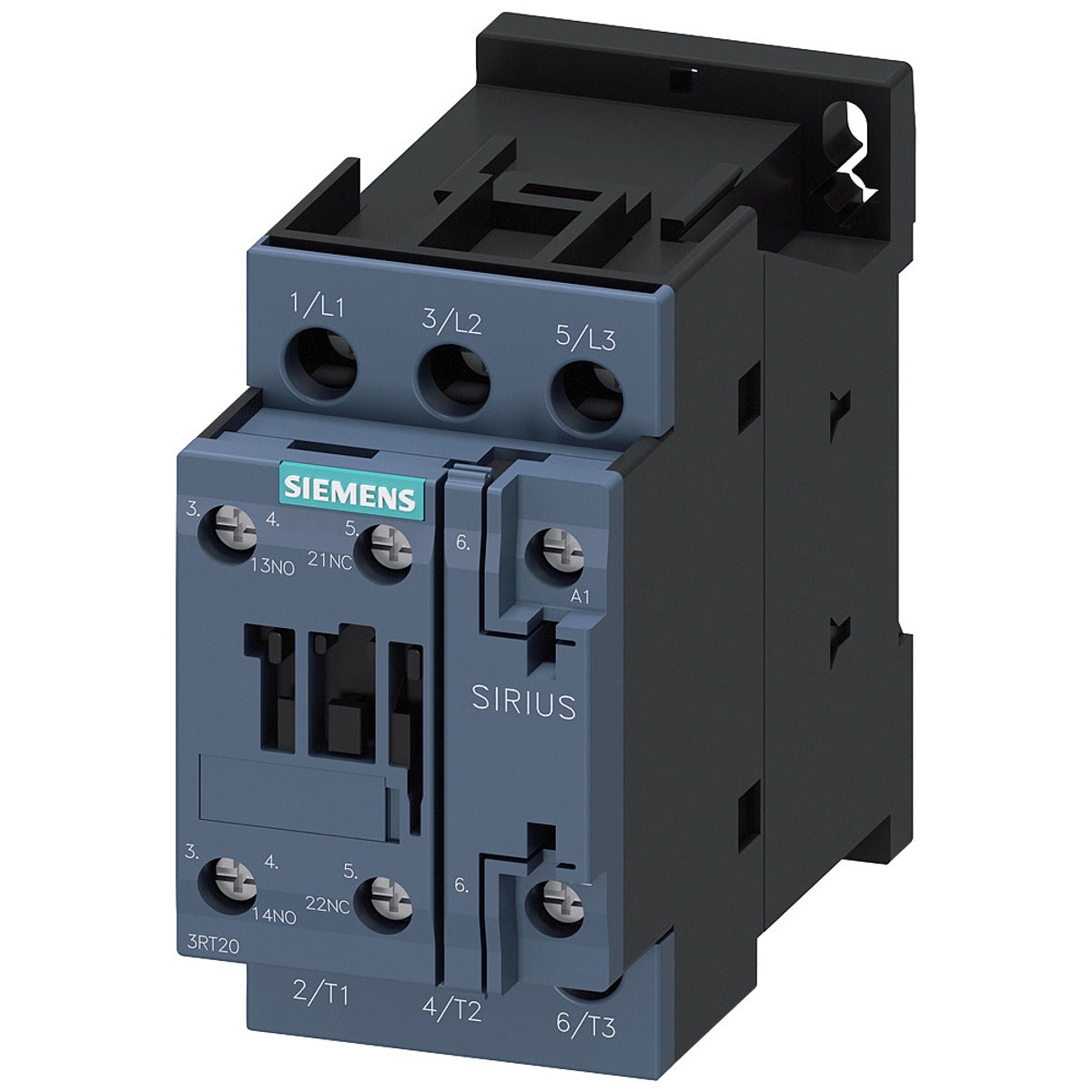

Siemens 3RT20251AG20 Contactor, AC-3, 7.5KW/400V, 1NO+1NC, AC110v 50/60HZ, 3-pole, sz s0 Screw Terminal

Product Description

The SIEMENS 3RT20251AG20 is a contactor designed for AC-3 applications, rated at 7.5KW/400V. It features 1NO+1NC contacts and operates at AC110v 50/60HZ. This 3-pole contactor is size S0 and utilizes screw terminals. It is suitable for various motor control and power switching applications.

• Rated for AC-3 applications up to 7.5KW/400V
• Features 1NO+1NC auxiliary contacts
• Utilizes screw terminals for secure connections

Product Highlights

This Siemens contactor is ideal for motor control and power switching, offering reliable performance with its robust design and screw terminal connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20251AG20
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT20251AG20
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Made in USA: No
• Contact Current Rating: 17 A
• Control Voltage: 110 V
• Mounting Type: DIN Rail Mount
• Type: General Purpose Contactors
• UPC Code: 662643915525
• Connection Type: Screw Connection
• Power Rating: 7.354 kW
• Construction Standard: I.E.C. 600V AC
• Size: Frame Size S0
• UL Cont. Amps: 17A
• Poles: 3P
• Coil Voltage: 110V 50/60Hz
• Hp 1-Phase 115V: 1 Hp
• Hp 1-Phase 230V: 3 Hp
• Hp 3-Phase 200V: 5 Hp
• Hp 3-Phase 230V: 5 Hp
• Hp 3-Phase 460V: 10 Hp
• Hp 3-Phase 575V: 15 Hp
• Enclosure Type: Open
• Auxiliary Contacts: (1) NO (1) NC
