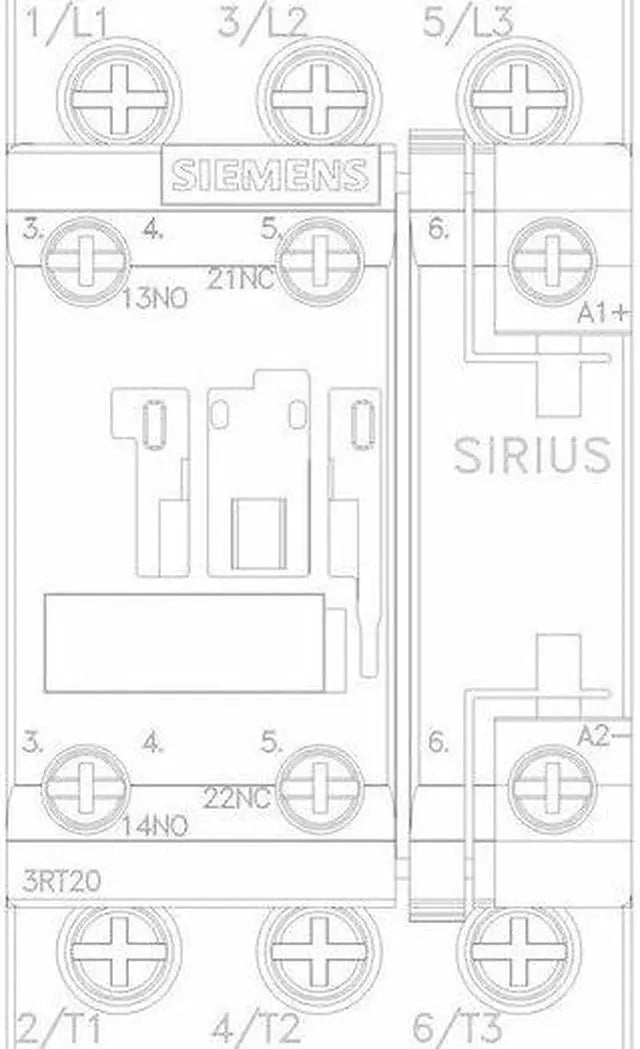

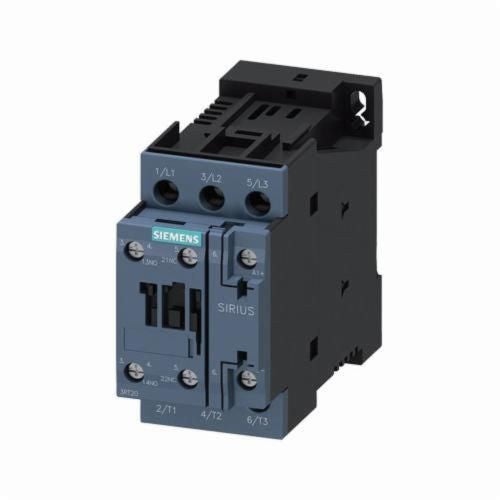

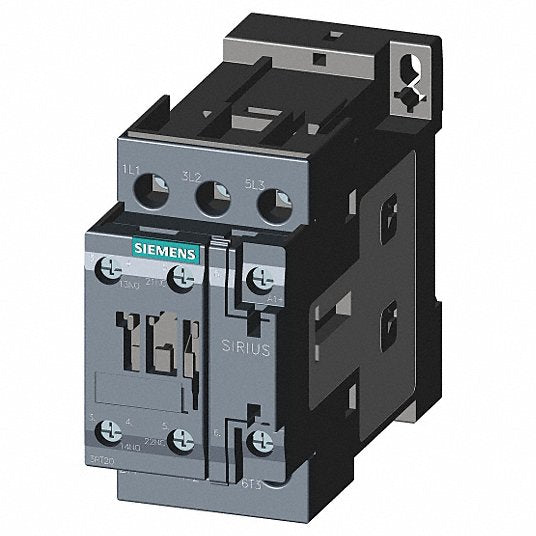

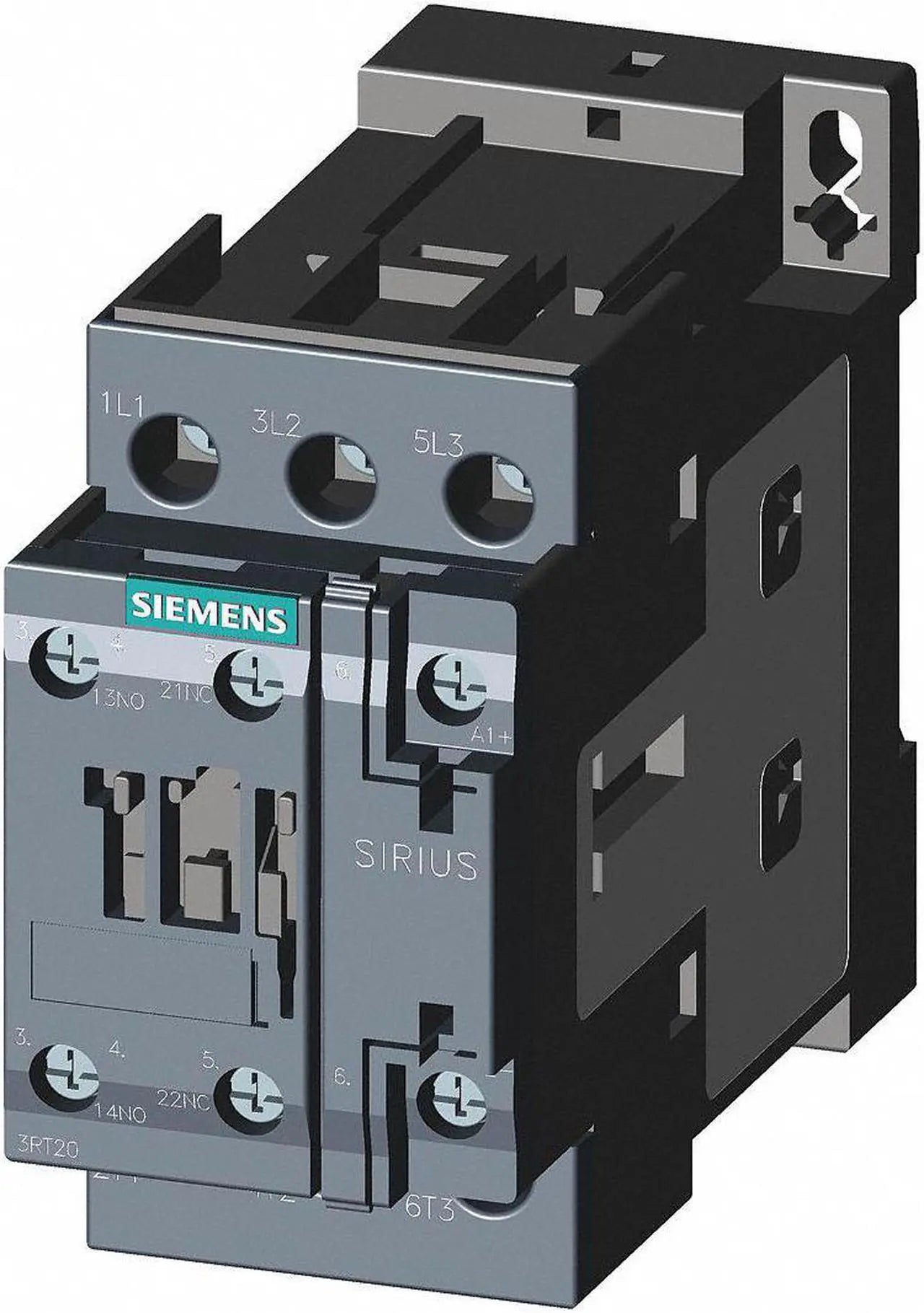

Siemens 3RT20241BB40 Contactor S0 12A 24VDC

Product Description

The SIEMENS 3RT20241BB40 contactor is for switching motors. Part of the modular SIRIUS system, it offers performance from a compact design with high contact reliability. It can be combined with other components in the load feeder. The contactors are climate-resistant and approved for worldwide use. They are IE3/IE4-ready.

• Auxiliary Contacts
• 3PST-NO (3 Form A)
• 3-Pole

Product Highlights

The SIEMENS 3RT20241BB40 contactor is part of the modular SIRIUS system. It has a compact design with high contact reliability.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20241BB40
• Country of Origin: Germany

Technical Specifications

• Category: Relays
• Switching Voltage: 690VAC - Max
• Manufacturer: Siemens
• Features: Auxiliary Contacts
• Series: 3RT2
• Termination Style: Screw Terminal
• Operating Temperature: -25 C ~ 60 C
• Part Status: Active
• Must Operate Voltage: 19.2 VDC
• Mounting Type: Chassis Mount, DIN Rail
• Coil Current: 245.8 mA
• Coil Voltage: 24VDC
• Coil Power: 5.9W
• Contact Form: 3PST-NO (3 Form A)
• Coil Resistance: 97.6Ohms
• Contact Rating (Current): 12 A
• Base Product Number: 3RT2024
• Brand: SIEMENS
• Contact Current Rating: 12 A
• Control Voltage: 24 V
• Horsepower Rating: 25 hp
• Manufacturer Part Number: 3RT20241BB40
• Maximum Operating Temperature: 60 C
• Minimum Operating Temperature: -25 C
• Number of Poles: 3
• Power Rating: 5.5 kW W
• Primary Type: IEC Contactor
• Size: S0 in
• Temperature Operating Range: -25 to 60 C
• Terminal Type: Screw Terminal
• Termination: screw
• Type: General Purpose Contactors
• Main Power Pole Contact Form: 3NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Phase: Three
• Full Load Current - Inductive: 12
• Full Load Current - Resistive: 40
• Nominal Coil Voltage @ 60Hz: 24V
• Maximum Voltage Rating: 690V
• Horsepower @ Single Phase - 120V AC: 1
• Horsepower @ Single Phase - 240V AC: 2
• Horsepower @ Three Phase - 208V AC: 3
• Horsepower @ Three Phase - 240V AC: 3
• Horsepower @ Three Phase - 480V AC: 7-1/2
• Horsepower @ Three Phase - 600V AC: 10
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Mounting Postion: Vertical
• Mechanical Operating Durability: 10,000,000
• Standards: REACH Art 33; WEEE (2012/19/EU)
• Amperage: 40 Amp at 400 VAC-1, 12 Amp at 400 VAC-3, 5.5 Amp at 400 VAC-4
• Connection Type: Screw Connection
• Contact Configuration: 1 NO, 1 NC Auxiliary, 3 NO Main
• Wattage: 5.5 kW
• Application: Switching Motors Applications
• Standard & Approvals: CCC Certified, CSA Certified, CE Certified, C-Tick Approved, VDE Approved, UL Listed
• Number of Auxiliary Contacts: 2
• Operating Cycles: 10000000 Cycles
• Enclosure Type: IP20
• Coil Power Rating: 5.9 W Closing, 5.9 W Holding
