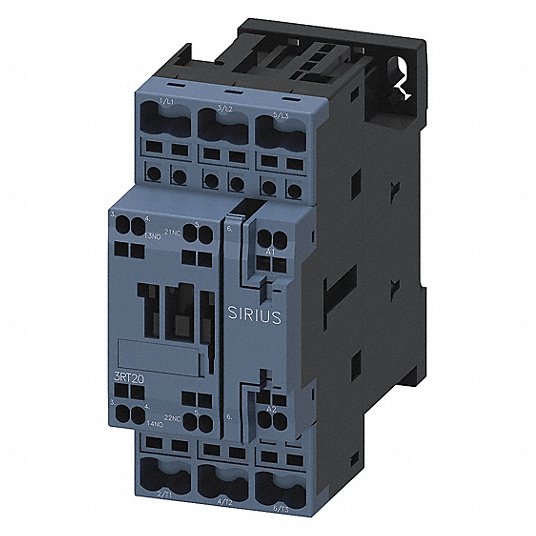

Siemens 3RT20232AK60 Contactor S0 9A 120Vac 1No/1Nc Sprg

Product Description

The SIEMENS 3RT20232AK60 is a contactor designed for AC-3 applications with a power rating of 4kW at 400V. It features 1NO+1NC contacts and operates with an AC110v 50HZ, 120v 60HZ 3-pole configuration, sz s0 spring-loaded terminal. It is suitable for switching motors and other high-current equipment.

• Maximum Load Current: 9 A
• Coil: 110/120 VAC
• Operating Temperature: -25 to 60 deg C

Product Highlights

The SIEMENS 3RT20232AK60 contactor is ideal for motor control and power switching applications, providing reliable performance in a compact S0 size with spring-loaded terminals.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20232AK60
• Country of Origin: Germany

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Contact Current Rating: 9 A
• Control Voltage: 120 V
• Manufacturer Part Number: 3RT20232AK60
• Mounting Type: Chassis Mount, DIN Rail
• Type: General Purpose Contactors
• Unit of Measure: EA
• UPC Code: 662643912784
• Coil Power Rating: 6.5/7.9/67/68 VA
• UNSPSC: 39121529
• Application: For switching motors
• Poles: 3
• Frequency: 50/60 Hz
• Wattage: 4 kW
• Contact Configuration: 1NC-1NO
• Auxiliary Contacts: 2
• Enclosure: IP20
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -25 to 60 deg C
• Dimensions: 102 mm H x 45 mm W x 97 mm D
• Size: S0
• Terminal: Spring Loaded
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Series: 3RT2
• Termination Style: Spring Terminal
• Packaging: Bulk
• Must Operate Voltage: 96 VAC
• Operate Time: 38 ms
• Release Time: 16 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 68VA
• Contact Rating (Current): 9 A
• Base Product Number: 3RT2023
• Connection Type: Spring Pulley Connection
• Power Rating: 3.677 kW
• 12-Digit UPC: 662643912784
• MDM Pkg GTiN: 00662643912784
• Product UPC: 66264391278
• Contactor Style: IEC
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Main Power Pole Contact Form: 3NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO/1NC
• Phase: Three
• Full Load Current - Inductive: 9 A
• Full Load Current - Resistive: 40 A
• Coil Voltage: 110/120V AC
• Nominal Coil Voltage @ 60Hz: 120V AC
• Maximum Voltage Rating: 690V AC
• Horsepower @ Single Phase - 120V AC: 1 hp
• Horsepower @ Single Phase - 240V AC: 1 hp
• Horsepower @ Three Phase - 208V AC: 2 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 5 hp
• Horsepower @ Three Phase - 600V AC: 7-1/2 hp
• Wire Termination Type: Spring Loaded
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Overall Height: 4.25 in
• Overall Width: 1.7 in
• Overall Depth: 3.8 in
• Mounting Postion: Vertical
• Mechanical Operating Durability: 10,000,000
• Minimum Operating Temperature: -13 °F
• Maximum Operating Temperature: 140 °F
• Standards: REACH Art 33; WEEE (2012/19/EU)
• Primary brand: Siemens
• Main function: Contactor
• Product series / family name: SIRIUS 3RT2
• Sub-range name: 3RT2023
• Functions: Power magnetic contactor
• Type of network: 3-phase
• Rated current: 9A (400Vac; AC-3) 10A (230Vac; AC-15) 3A (400Vac; AC-15)
• Rated active power (kW): 4kW (400Vac; AC-3)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V (UL/CSA) 600 V
• Mounting mode: DIN rail Surface
• Normally Open (NO) auxliary contacts: 1 NO contacts
• Normally Closed (NC) auxiliary contacts: 1 NC contacts
• Degree of protection: IP20
• Mechanical durability (at no load): 10 000 000 operations
• Application type: Direct On Line (DOL) FVNR (Full-Voltage Non-Rv.)
• Order code / Manufacturer SKU: 3RT20232AK60
• Manufacturer product status: Commercialized
• Compliant with standard(s): IEC 60947-1 IEC 60947-4-1 IEC 60529 CE EAC CSA UL SN 31920 IEC 61508 CCC DIN EN 81346-2 DIN 40719 DIN EN 60715
