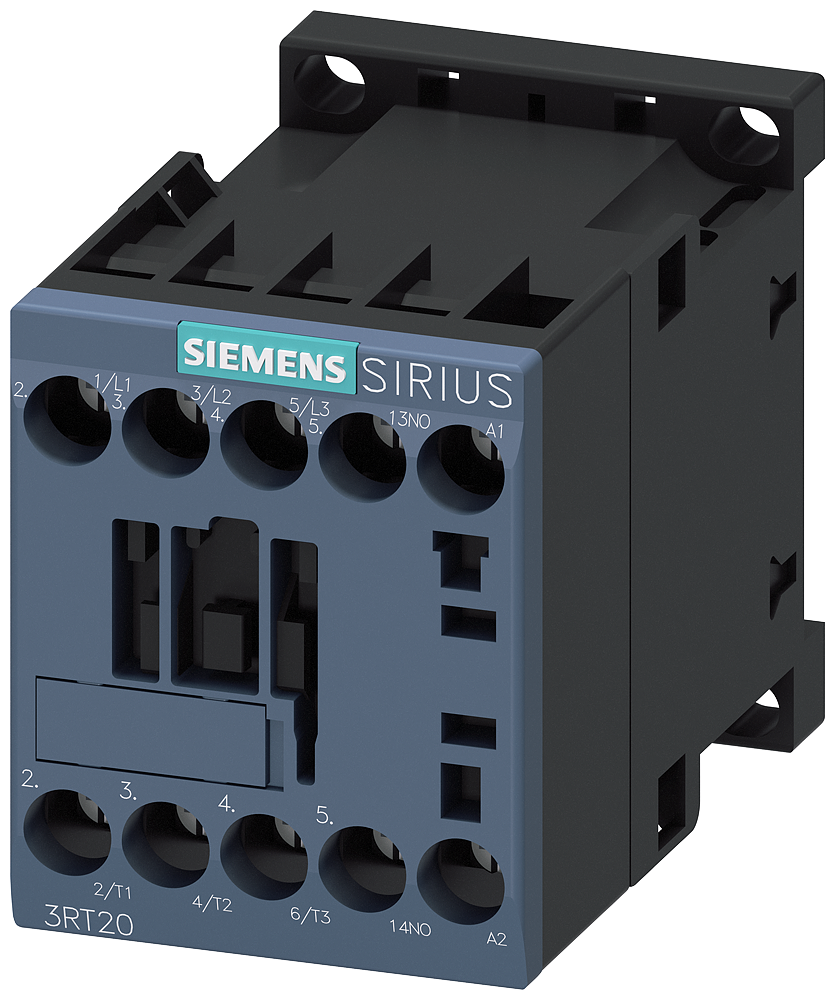

Siemens 3RT20181AV61 Power Contactor 480 VAC Coil 16 A 3NO Contact 3 Poles

Product Description

The Siemens SIRIUS 3RT20181AV61 Power Contactor is designed for electrical control in various industrial applications. It operates with a coil voltage of four hundred eighty volts alternating current (VAC) and has a maximum load current of sixteen amperes. This contactor includes three normally open (3NO) contacts and is suitable for use with multiple load types.

• Coil voltage: 480 VAC
• Rated maximum load current: 16 A
• Contact configuration: 3NO

Product Highlights

This contactor is ideal for controlling motors and other high-power equipment. It supports features such as retrofitting with suppression devices to manage coil opening surges effectively.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3RT20181AV61

Technical Specifications

• Coil Power Rating: 2 hp, 10 hp
• Coil Voltage: 480 VAC
• Contact Configuration: 3NO
• Contact Rating: A600/Q600
• Contact Type: Auxiliary
• Dimensions: 58 mm H x 45 mm W x 73 mm D
• Enclosure Type: IP20
• Frequency Rating: 60 Hz
• Maximum Load Current: 16 A
• Mounting Type: DIN Rail/Snap-On/Threaded
• Number of Auxiliary Contacts: 1
• Number of Poles: 3
• Operating Cycles: 30000000 Cycles
• Operating Temperature: -25 to 60 deg C
• Power Factor: 0.8
• Size: SZ 00
• Terminal Type: Screw
• Wattage: 7.5 kW
