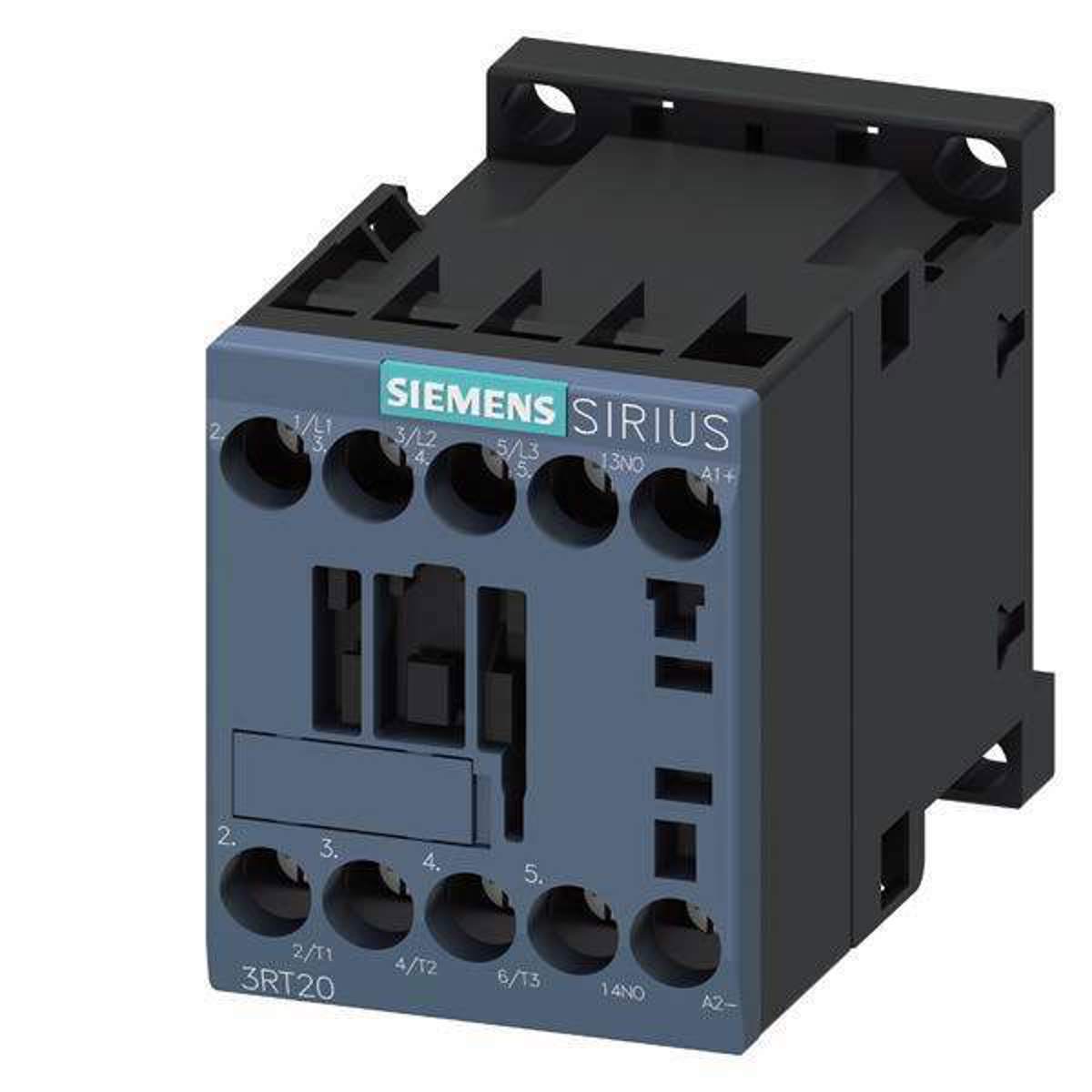

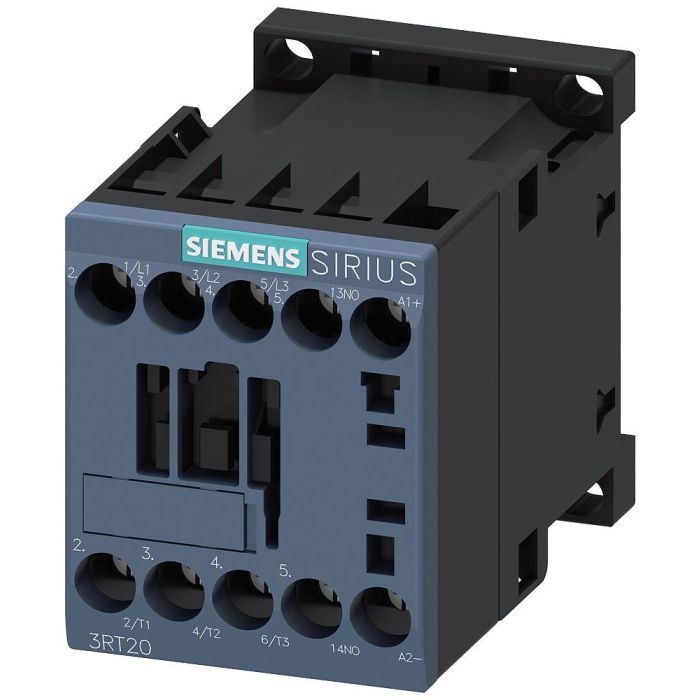

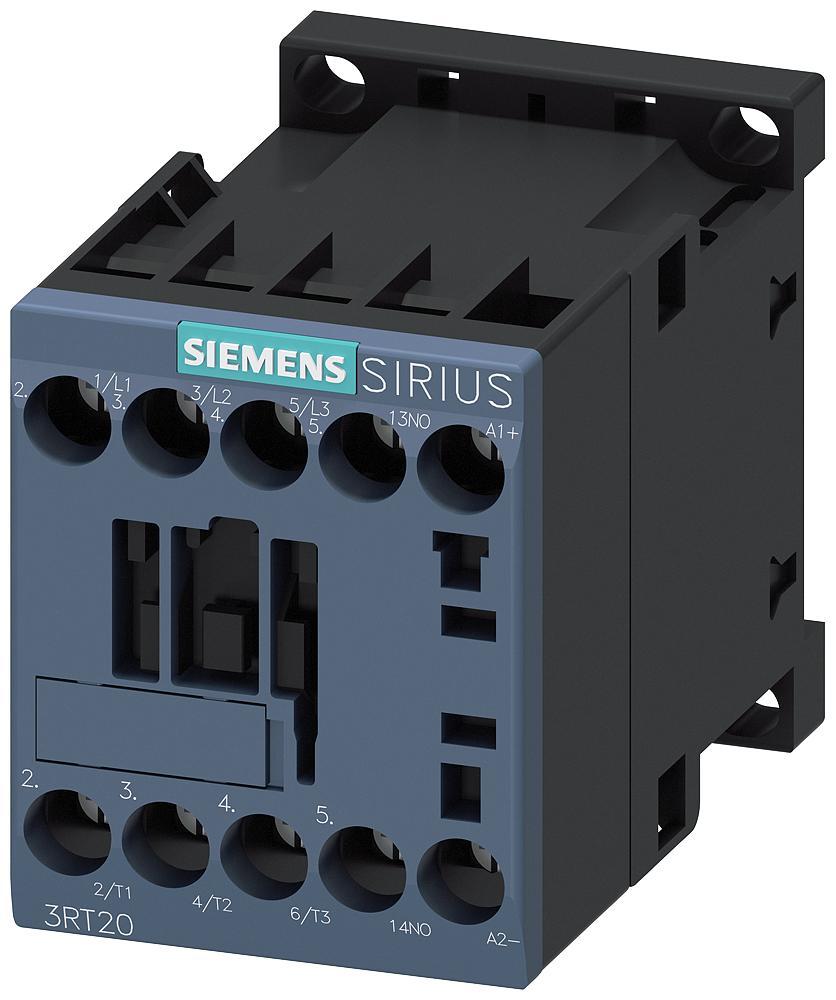

Siemens 3RT20171FB41 Contactor AC-3 5.5KW/400V 1NO DC 24V

Product Description

The SIEMENS 3RT20171FB41 is a contactor designed for switching motors. This AC-3 contactor features a 5.5KW/400V power rating, a 1NO (Normally Open) contact, and operates on DC 24V with an integrated diode. The 3-pole contactor comes in size S00 with screw terminals. It is suitable for applications requiring reliable motor control.

• AC-3 Contactor with 5.5KW/400V power rating
• Features 1NO (Normally Open) contact and operates on DC 24V
• Integrated diode and screw terminal connections

Product Highlights

The SIEMENS 3RT20171FB41 contactor is ideal for motor switching applications, offering a compact size and reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20171FB41
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT20171FB41
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: SIRIUS
• Country of Origin: Germany
• Made in USA: No
• Application: Contactors for switching motors
• Connection: screw-type terminals
• Contact Rating: A600 / Q600
• Mounting: Din Rail
• Phase: 3
• Special Features: Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring.
• UPC: 662643911251
• GTIN: 00662643911251
• Item Type: 3RT2 contactor
• Size: S00
• Operating Temperature: 60.0 -25.0 C
• Standards: CCC, CSA, EAC, RCM, UL
• Coil Volts: 24 V DC
• Watts Loss: 0.5W (Current Dependent); 4W (Current Independent)
• Number of Poles: 3
• HP @ 1 Phase - 120V: 1/2 hp
• HP @ 1 Phase - 240V: 2 hp
• HP @ 3 Phase - 208V: 3 hp
• HP @ 3 Phase - 240V: 3 hp
• HP @ 3 Phase - 480V: 7 1/2 hp
• HP @ 3 Phase - 575V: 10 hp
• Max. Operating Watts: 6 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)
• Electrical Connection: Screws
• Full Load Amps-Inductive: 12 A
• Full Load Amps-Resistive: 22 A
• Aux. Contact Configuration: 1NO
• Frame / Series / Class / Code: S00
• Contact Current Rating: 12 A
• Mounting Type: DIN Rail Mount
• Type: General Purpose Contactors
• Number of Auxiliary Contacts: 1
• Operating Cycles: 30000000 Cycles
• Wattage: 5.5 kW
• Enclosure Type: IP20
• Maximum Load Current: 12
• Terminal Type: Screw
