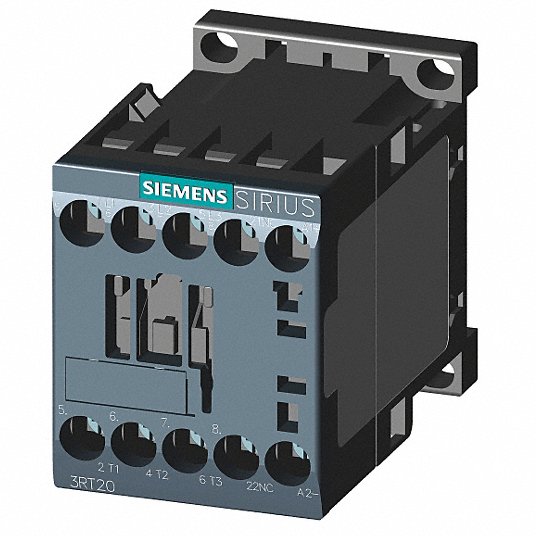

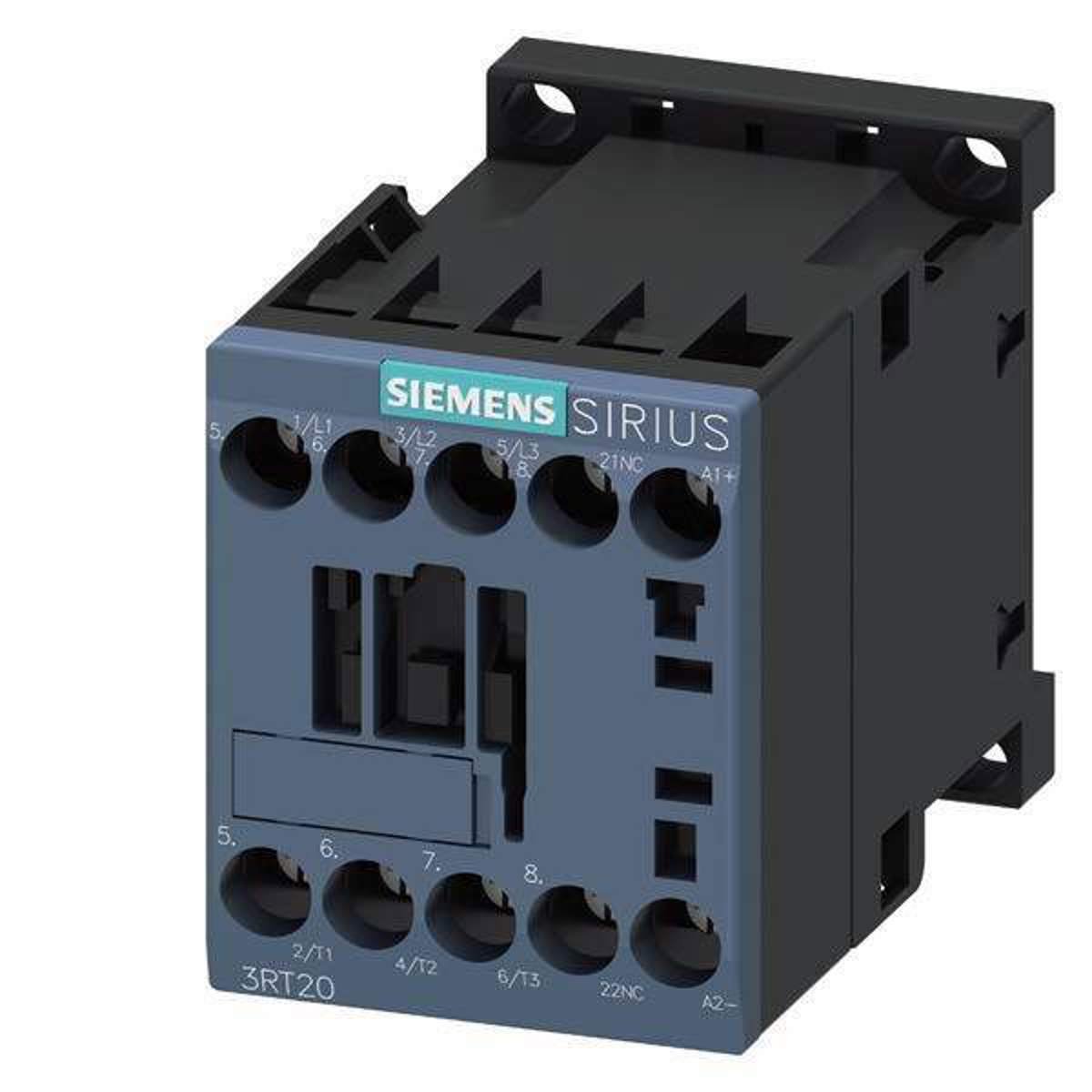

Siemens 3RT20171BB42 Contactor, AC-3, 5.5KW/400V, 1NC, DC 24V, 3-pole, sz s00 Screw Terminal

Product Description

The SIEMENS 3RT20171BB42 Contactor is designed for switching motors with screw-type terminals. This AC-3 contactor operates at 5.5KW/400V, includes 1NC contact, and uses a DC 24V, 3-pole configuration in size S00. It can be used to configure star-delta (wye-delta) starters simply by plugging in function modules.

• Contactors for switching motors
• screw-type terminals
• Din Rail Mounting

Product Highlights

The SIEMENS 3RT20171BB42 is a reliable contactor for efficient motor switching with easy installation and configuration.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20171BB42
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT20171BB42
• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: SIRIUS
• Country of Origin: Germany
• Made in USA: No
• Application: Contactors for switching motors
• Connection: screw-type terminals
• Contact Rating: A600 / Q600
• Mounting: Din Rail
• Phase: 3
• Special Features: Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring.
• UPC: 662643911138
• GTIN: 00662643911138
• Item Type: 3RT2 contactor
• Size: S00
• Operating Temperature: -25 to 60 deg C
• Maximum Load Current: 12 A
• Coil: 4 W
• Poles: 3
• Wattage: 5.5 kW
• Contact Configuration: 1NC
• Auxiliary Contact: 1 Auxiliary Contact
• Terminal: Screw Terminal
• Enclosure: IP20 Enclosure
• Operating Cycles: 30000000 Cycles
• Mounting Type: Chassis Mount, DIN Rail
• Dimensions: 58 mm H x 45 mm W x 73 mm D
• Category: Relays
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Series: 3RT2
• Termination Style: Screw Terminal
• Packaging: Bulk
• Must Operate Voltage: 19.2 VDC
• Coil Current: 166.7 mA
• Coil Voltage: 24VDC
• Coil Power: 4W
• Contact Form: 3PST-NO (3 Form A)
• Coil Resistance: 144Ohms
• Contact Rating (Current): 12 A
• Base Product Number: 3RT2017
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Number of Poles: 3
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -25 °C
• Temperature Operating Range: -25 to 60 C
• Voltage Rating: 24 V
• Terminal Type: Screw Terminal
• Power Rating: 5.5 kW W
• Primary Type: IEC Contactor
• Type: General Purpose Contactors
• Standards: CAC, CE Recognized, CSA Certified, EAC Certified, GOST Certified, IEC 60947-5-1, UL listed
• Termination: screw
• Horsepower Rating: 25 hp
• Control Voltage: 24 V
• Full Load Current - Inductive: 12 A
• Full Load Current - Resistive: 22 A
• Maximum Voltage Rating: 690V AC
• Horsepower @ Single Phase - 120V AC: 1/2 hp
• Horsepower @ Single Phase - 240V AC: 2 hp
• Horsepower @ Three Phase - 208V AC: 3 hp
• Horsepower @ Three Phase - 240V AC: 3 hp
• Horsepower @ Three Phase - 480V AC: 7-1/2 hp
• Horsepower @ Three Phase - 600V AC: 10 hp
• Wire Termination Type: Screw
• Integrated Surge Suppression: No
• IP Rating: IP20
• NEMA Enclosure Rating: No
• Mounting Postion: Vertical
• Mechanical Operating Durability: 30,000,000
• REACH Art 33: None
• WEEE (2012/19/EU): None
