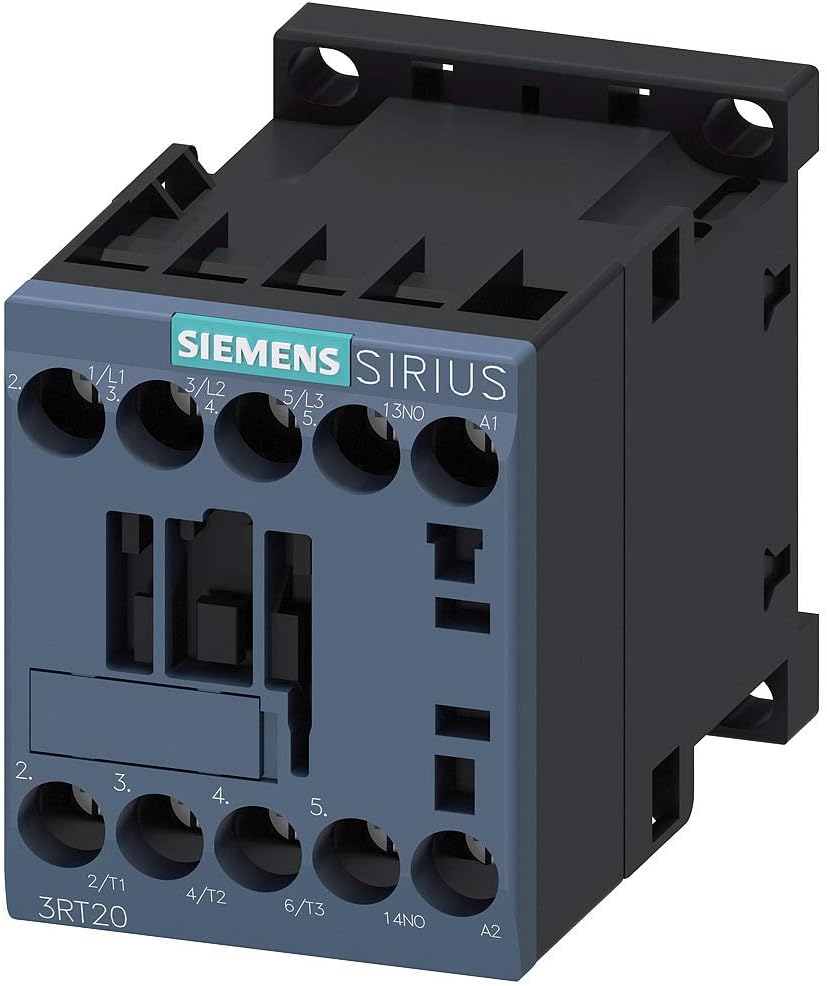

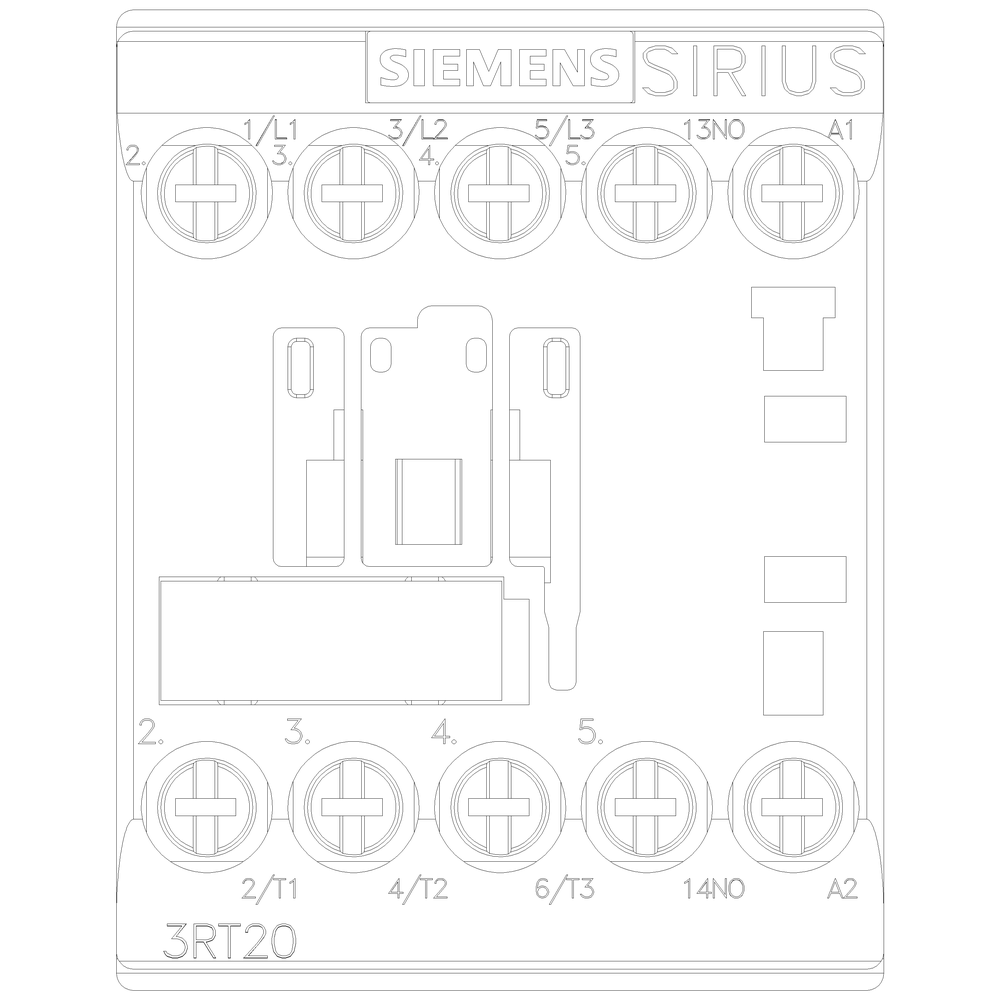

Siemens 3RT20171AK61 Contactor 5.5KW 3-Pole 110-120V

Product Description

The Siemens 3RT20171AK61 Contactor is designed for motor control and industrial automation applications. This contactor operates on a 110V-120V AC coil voltage and features a 5.5KW power rating at 400V. The design includes 3 poles and a screw terminal connection.

• Operates at 110V-120V AC coil voltage
• Features a 5.5KW power rating at 400V
• 3-pole design with screw terminal

Product Highlights

Siemens 3RT20171AK61 contactor is ideal for switching motors in industrial environments. It boasts high contact reliability and a compact design, making it suitable for various load feeder configurations. Standardized accessories enhance versatility, and integrated auxiliary switches simplify wiring.

Product Information

Standard Information

• Included Components: One 3RT20171AK61 contactor

Technical Specifications

• Voltage: 110-120V AC
• Power Rating: 5.5KW at 400V
• Amperage: 12A at 400V-3
• Number of Poles: 3
• Wattage: 5.5KW
• Contact Configuration: 1NO Auxiliary
• Operating Temperature: -25 to 60 degrees C
• Weight: 4 ounces
• Dimension: 2.45 inches length x 1.97 inches width x 3.08 inches height
• Mounting Type: Screw Mount
• Country of Origin: Germany
