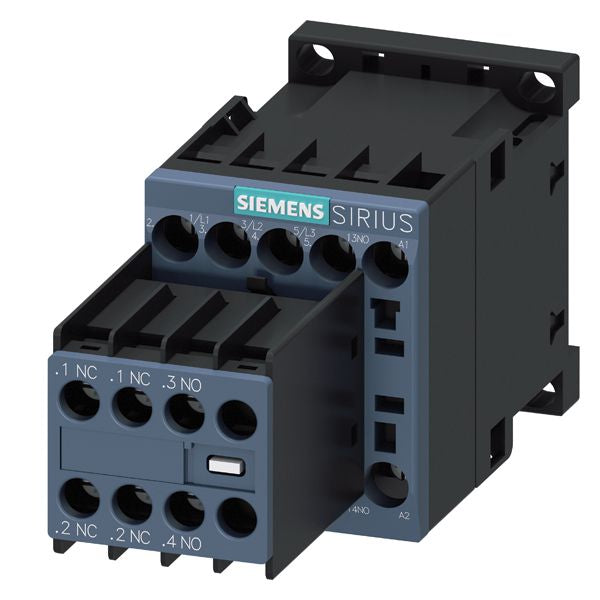

Siemens 3RT20161BB44 Contactor S00 9A 24VDC 2NO/2NC SCRW

Product Description

The SIEMENS 3RT20161BB44 is a contactor S00 with a 9A contact current rating and a 24VDC coil. It features 2NO+2NC contacts and screw terminals. This 3-phase standard power contactor is suitable for DIN rail mounting and AC switching applications. It is designed for use in various industrial and commercial settings.

• RoHS Compliant
• Maximum Load Current: 9 A
• Terminal Type: Screw

Product Highlights

The SIEMENS 3RT20161BB44 contactor is a reliable and efficient solution for power switching applications, offering robust performance and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20161BB44
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Contact Current Rating: 9 A
• Manufacturer Part Number: 3RT20161BB44
• Mounting Type: Chassis Mount, DIN Rail
• Type: General Purpose Contactors
• Alternate Catalog Number: 3RT2016-1BB44
• Catalog Number: 3RT20161BB44
• Country of Origin: Germany
• Height: 4.7300 in
• Length: 2.4500 in
• Manufacturer: Siemens
• Replaced Catalog Number: 3RT10161BB44
• Width: 1.9700 in
• Coil Power Rating: 4 kW at 400 V 3-Phase
• Contact Configuration: 3NO
• Contact Rating: A600/Q600
• Enclosure Type: IP20
• Number of Auxiliary Contacts: 2NO-2NC
• Number of Poles: 3
• Operating Cycles: 10000000
• Operating Temperature: -25 to 60 deg C
• Series: SIRIUS
• Size: S00
• Wattage: 4 W DC Closing/Holding
• Coil Voltage: 24 V DC
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Termination Style: Screw Terminal
• Must Operate Voltage: 19.2 VDC
• Operate Time: 100 ms
• Release Time: 13 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 4W
• Contact Rating (Current): 9 A
• Base Product Number: 3RT2016
• CONT.,AC3: 4KW 2NO+2NC DC24V
• Rated operation power at AC-3, 400 V (kW): 4
• Voltage type for actuating: DC
• Rated control supply voltage DC (V): 24 - 24
• Number of normally open contacts as main contact: 3
• Number of normally closed contacts as main contact: 0
• Number of auxiliary contacts as normally open contact: 2
• Number of auxiliary contacts as normally closed contact: 2
• Rated operation current Ie at AC-1, 400 V (A): 22
• Rated operation current Ie at AC-3, 400 V (A): 9
• Rated operation current Ie at AC-4, 400 V (A): 8.5
• Rated operation power at AC-4, 400 V (kW): 4
• Suitable for distribution board: Yes
• Type of electrical connection of main circuit: Screw connection
• Rated operation power NEMA (kW): 3.677
• Main function: Contactor
• Product series / family name: SIRIUS 3RT2
• Sub-range name: 3RT2016
• Functions: Power magnetic contactor relay with pre-assembled removable aux. cont. blck
• Type of network: 3-phase
• Rated current: 9A (400Vac; AC-3)
• Rated active power (kW): 4kW (400Vac; AC-3)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• (UL/CSA): 600 V
• Connection type: Screw-clamp term. connections
• Poles: 3 Pole(s)
• Mounting mode: DIN rail
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Normally Closed (NC) auxiliary contacts: 2 NC contacts
• Degree of protection: IP20
• Mechanical durability (at no load): 30 000 000 operations
• Application type: Direct On Line (DOL)
• Order code / Manufacturer SKU: 3RT20161BB44
• Manufacturer product status: Commercialized
• Compliant with standard(s): IEC 60947-1
• Rated operation voltage at AC-3, 400 V (A): 9
• Primary brand: Siemens
