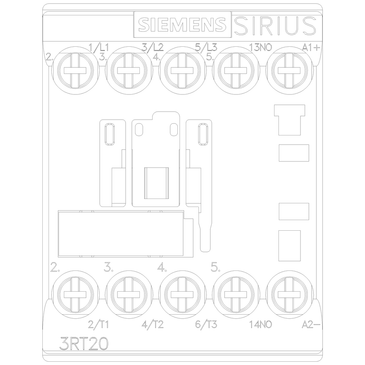

Siemens 3RT20161BB411AA0 Contactor 3PST-NO 9 A 24VDC

Product Description

The SIEMENS 3RT20161BB411AA0 is a 3PST-NO contactor with a 24VDC coil. This electromechanical contactor is designed for chassis or DIN rail mounting. It is suitable for various applications requiring reliable switching. The contactor features screw terminals for secure connections.

• Auxiliary Contacts
• Screw Terminal
• DIN Rail or Chassis Mount

Product Highlights

The SIEMENS 3RT20161BB411AA0 contactor offers reliable switching with easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20161BB411AA0

Technical Specifications

• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Switching Voltage: 690VAC - Max
• Manufacturer: Siemens
• Features: Auxiliary Contacts
• Series: SIRIUS
• Termination Style: Screw Terminal
• Operating Temperature: -25 C ~ 60 C
• Part Status: Active
• Must Operate Voltage: 19.2 VDC
• Mounting Type: Chassis Mount, DIN Rail
• Operate Time: 100 ms
• Coil Voltage: 24VDC
• Release Time: 13 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 4W
• Contact Rating (Current): 9 A
• Base Product Number: 3RT2016
• Brand: SIEMENS
• Manufacturer Part Number: 3RT20161BB411AA0
• Type: General Purpose Contactors
• Height: 3.05 IN
• Length: 2.42 IN
• Modular version: TRUE
• Number of auxiliary contacts as normally open contact: 1
• Number of main contacts as normally open contact: 3
• Rated control supply voltage Us at DC: 24 V
• Rated operation current Ie at AC-1; 400 V: 22 A
• Rated operation current Ie at AC-3; 400 V: 0.375
• Rated operation current Ie at AC-4; 400 V: 8.5 A
• Rated operation power at AC-3; 400 V: 4 kW
• Rated operation power NEMA: 3.68 kW
• Type of electrical connection of main circuit: Screw connection
• Voltage type for actuating: DC
• Width: 1.97 IN
• Weight: 0.65 LB
