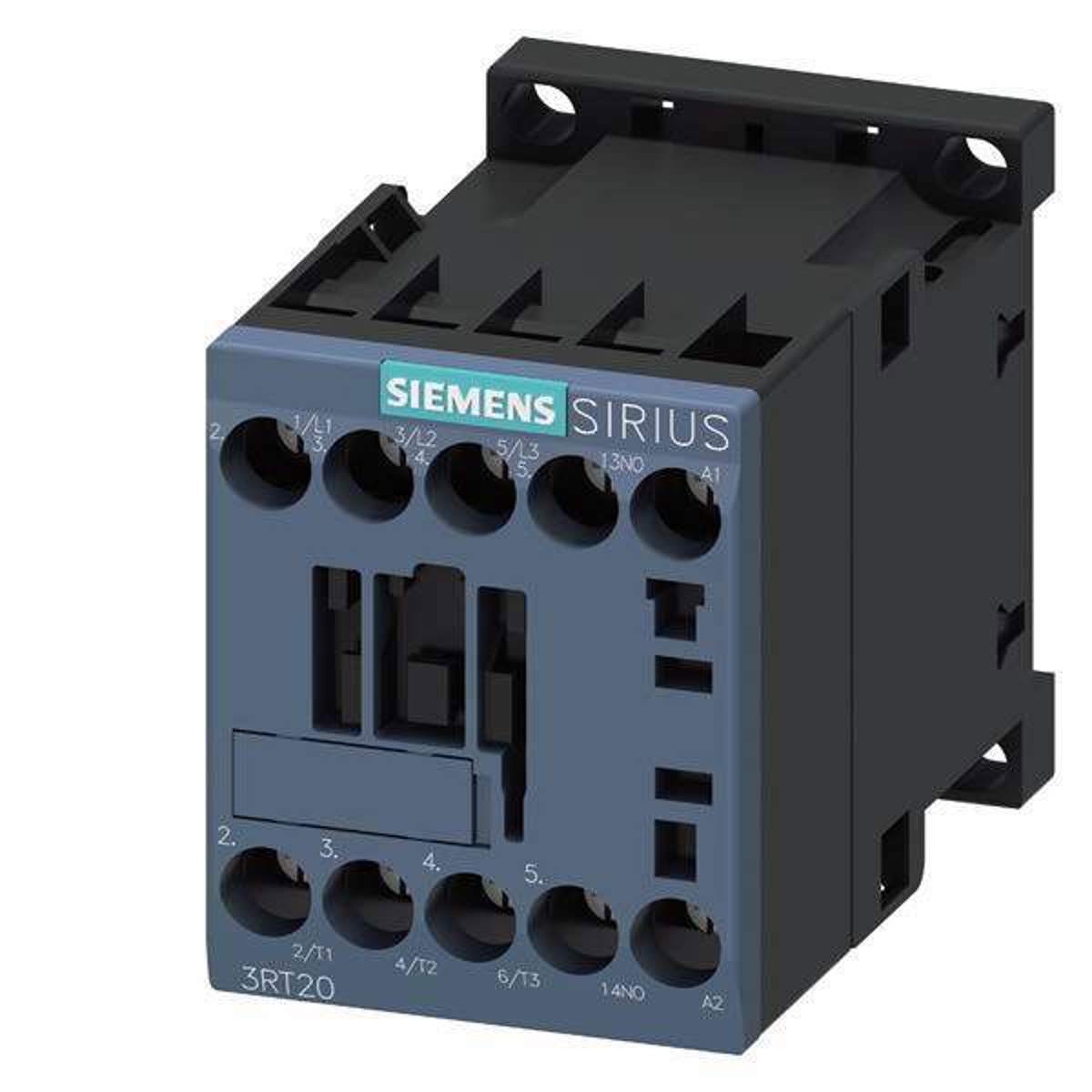

Siemens 3RT20161AF01 Contactor, AC-3, 4KW/400V, 1NO, AC110V, 50/60 HZ, 3-pole, sz s00 screw terminal

Product Description

The SIEMENS 3RT20161AF01 is a contactor, AC-3, 4KW/400V, 1NO, AC110V, 50/60 HZ, 3-pole, sz s00 with screw terminals. This 3-pole contactor is climate-proof and suitable for worldwide use. It features auxiliary contacts and is designed for chassis or DIN rail mounting. The contactor has a switching voltage of 690VAC max and a rated current of 9A.

• Auxiliary Contacts
• Chassis Mount, DIN Rail
• Climate-proof

Product Highlights

The SIEMENS 3RT20161AF01 contactor is ideal for various industrial applications requiring reliable switching and control.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20161AF01
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT20161AF01
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• UPC: 662643907629
• GTIN: 00662643907629
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Series: 3RT2
• Part Status: Active
• Mounting Type: Chassis Mount, DIN Rail
• Coil Voltage: 110VAC
• Contact Form: 3PST-NO (3 Form A)
• Contact Rating (Current): 9 A
• Switching Voltage: 690VAC - Max
• Features: Auxiliary Contacts
• Termination Style: Screw Terminal
• Operating Temperature: -25°C ~ 60°C
• Must Operate Voltage: 93.5 VAC
• Must Release Voltage: -
• Contact Material: -
• Operate Time: 35 ms
• Release Time: 14 ms
• Coil Power: 27VA
• Coil Resistance: -
• Base Product Number: 3RT2016
• UNSPSC Code: 39120000
• Number of Poles: 3
• Type: General Purpose Contactors
• Control Voltage: 110 V
• Contact Current Rating: 9 A
• Overview: Contactors - 3RT2 Range
• Full Load Current - Inductive: 9 A
• Full Load Current - Resistive: 22 A
• Reversing Capability: Non-Reversing
• Overall Height: 1.95 in
• Overall Width: 2.7 in
• Terminal Connection Type: Screw Terminals
• Frame Size: S00
• Mounting Style: DIN Rail, Surface
• Number of Auxillary Contacts: 1
• Contactor Style: IEC
• MPN: 3RT20161AF01
• Model: 3RT20161AF01
• Enclosure Rating: IP20
