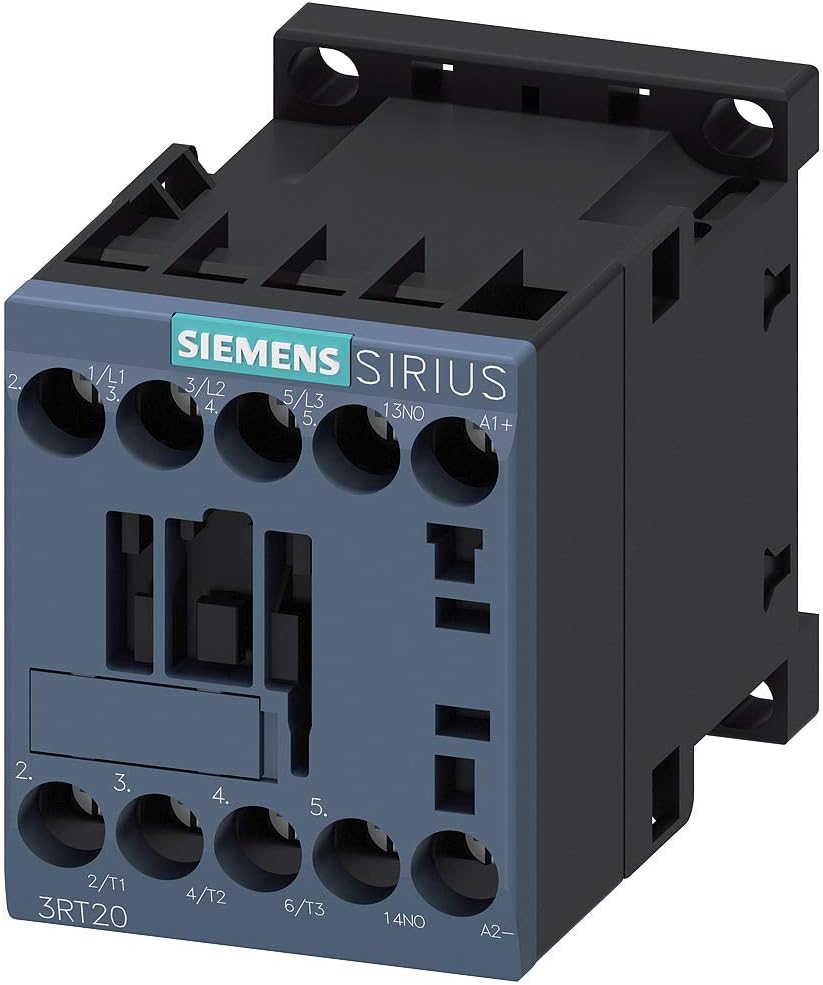

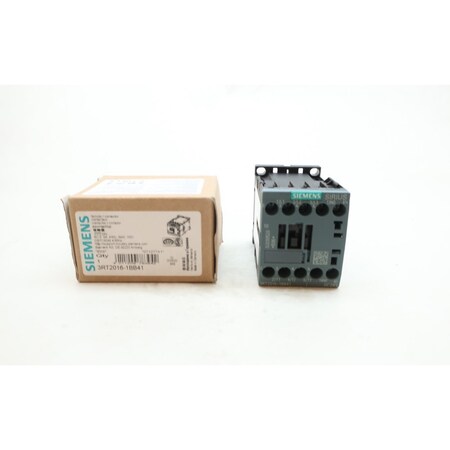

Siemens 3RT2016-1BB41 Contactor AC-3 4KW 400V 1NO DC 24V 3-Pole

Product Description

The Siemens 3RT2016-1BB41 is a dependable 3-pole contactor designed for switching motors with a 24V DC control voltage. This compact and reliable unit supports up to 4KW at 400V, making it suitable for various industrial applications.

• 24V DC coil voltage
• Supports up to 4KW power at 400V
• 3-pole design

Product Highlights

Ideal for motor control, pumps, and other heavy-duty equipment. The Siemens 3RT2016-1BB41 ensures efficient power distribution, enhanced safety, and reduced maintenance costs.

Product Information

Standard Information

• Manufacturer: Siemens
• Brand: Siemens
• Sub Brand: Sirius
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 3RT2016-1BB41
• Coil Voltage: 24V DC
• Contact Configuration: 1 NO
• Contact Rating: 9 AMP at 400V
• Operating Cycles: 30,000,000 Typical
• Phase: 3
• Special Features: Number of Poles: 3; Enclosure: S00, IP20
• Operating Temperature: -25 to 60 degrees C
• Wattage: 4 KW
• Voltage: 24 V DC
• Size: 57.5 mm Height x 45 mm Width x 73 mm Depth
• Weight: 0.67 lbs
• UPC: 662643907773
