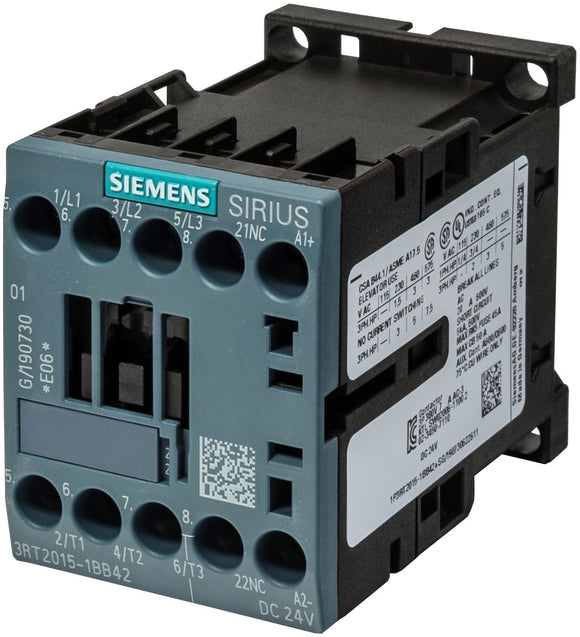

Siemens 3RT20151BB42 Contactor, AC-3, 3Kw/400V, 1NC, Dc 24V, 3-Pole, Sz S00 Screw TERMINAL

Product Description

The Siemens 3RT20151BB42 is a contactor suitable for every application, whether as single devices, as modules for load feeders, or for installation in low-voltage distribution boards/switchboards. It is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 2 HP at 230V and 3 HP at 460V.

• IEC Magnetic contactor- non-reversing
• IEC Magnetic contactor, 24Vdc coil volts, 7 full load amps-inductive, 1NC auxiliary contact form
• 7 full load amps-inductive

Product Highlights

The Siemens Sirius contactors offer high contact reliability, extremely long service life and can be used even in the most extreme ambient conditions.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20151BB42

Technical Specifications

• Manufacturer: Siemens
• Part Number: 3RT20151BB42
• Item model number: 3RT20151BB42
• Material: copper
• Voltage: 24 Volts
• Item Package Quantity: 1
• Number Of Pieces: 1
• Certification: iec
• Included Components: One 3RT20151BB42 contactor
• Batteries Included?: No
• Batteries Required?: No
• Frame Size: S00
• AC3 Amp ratings: 7
• AC1: 18
• Three phase HP ratings 230V: 2
• Three phase HP ratings 460V: 3
• Auxiliary contacts NO: 0
• Auxiliary contacts NC: 1
• Coil Voltage / DC Voltage: 24V
