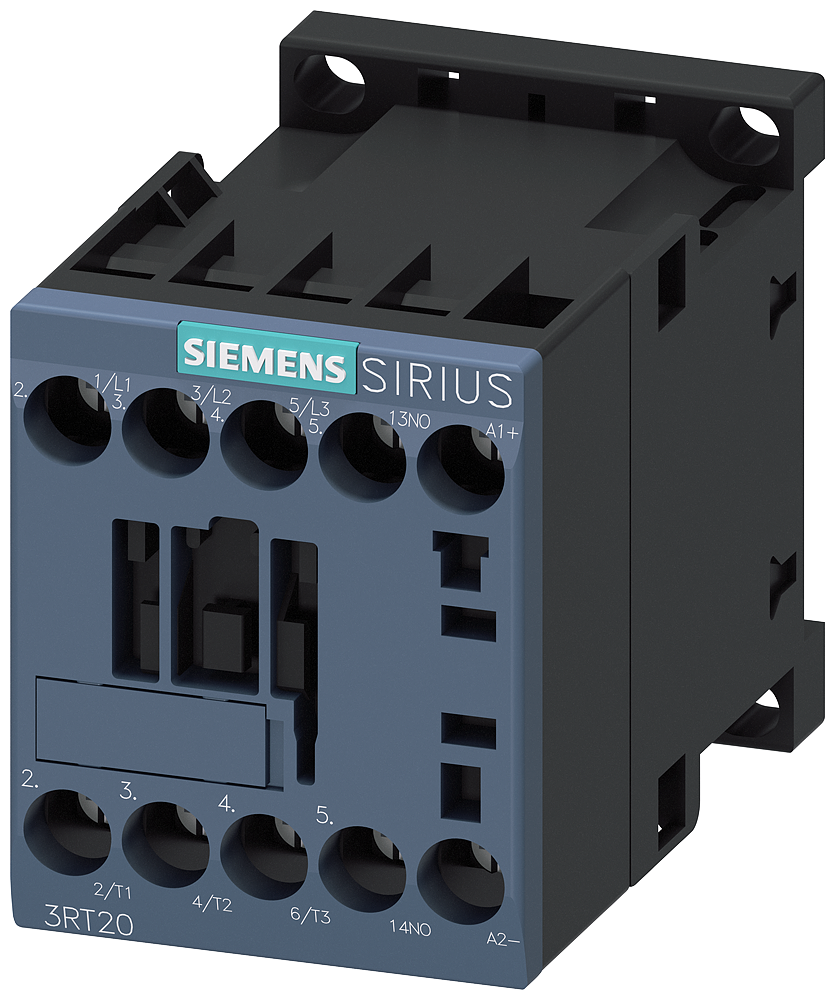

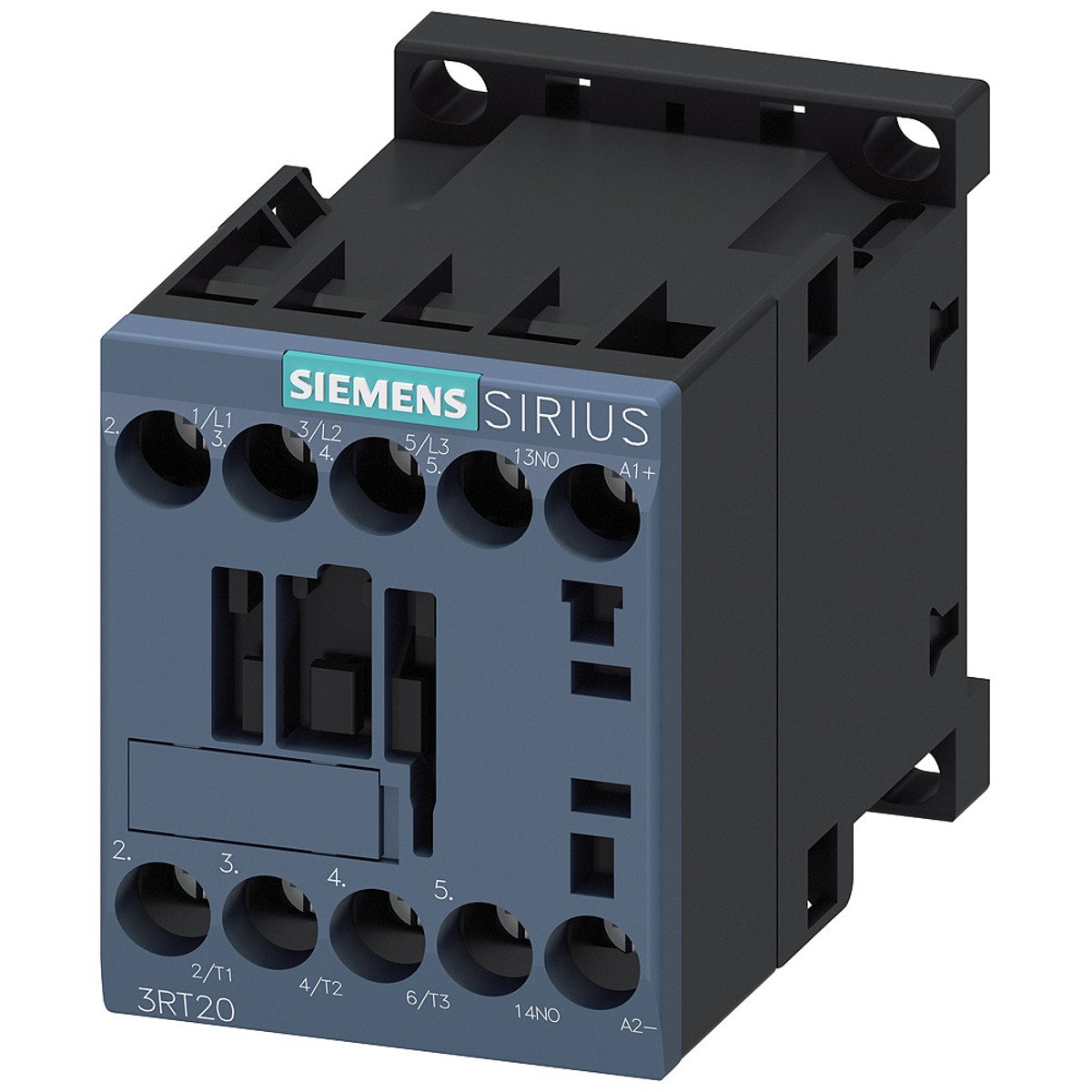

Siemens 3RT20151BB41 24 VDC 7 Amp 3-Pole 1NO Screw Terminal IEC Contactor

Product Description

The Siemens 3RT20151BB41 is a 24 VDC rated, 7 Amp, 3-pole contactor designed for motor switching applications. This product is part of the SIRIUS modular system, which pairs well with a variety of other components for effective load control. The contactor features high reliability and compact design, suitable for various environments.

• Integrated auxiliary switches for simplified design.
• Climate-resistant construction for worldwide applications.
• Utilizes screw-type terminals for a secure connection.

Product Highlights

This contactor supports applications that require reliable switching in industrial automation. It is designed with screw terminals for easy wiring and is compliant with international standards.

Product Information

Standard Information

• Catalog Number: 3RT20151BB41
• Manufacturer: Siemens

Technical Specifications

• Voltage: 24 VDC
• Wattage: 3 kW
• Amperage: 7 A at 400 V
• Coil Voltage: 24 VDC
• Number of Poles: 3 Pole
• Contact Configuration: 1 NO Auxiliary
• Operating Cycles: 30 Million
• Temperature Rating: -25 to 60 Degrees C
