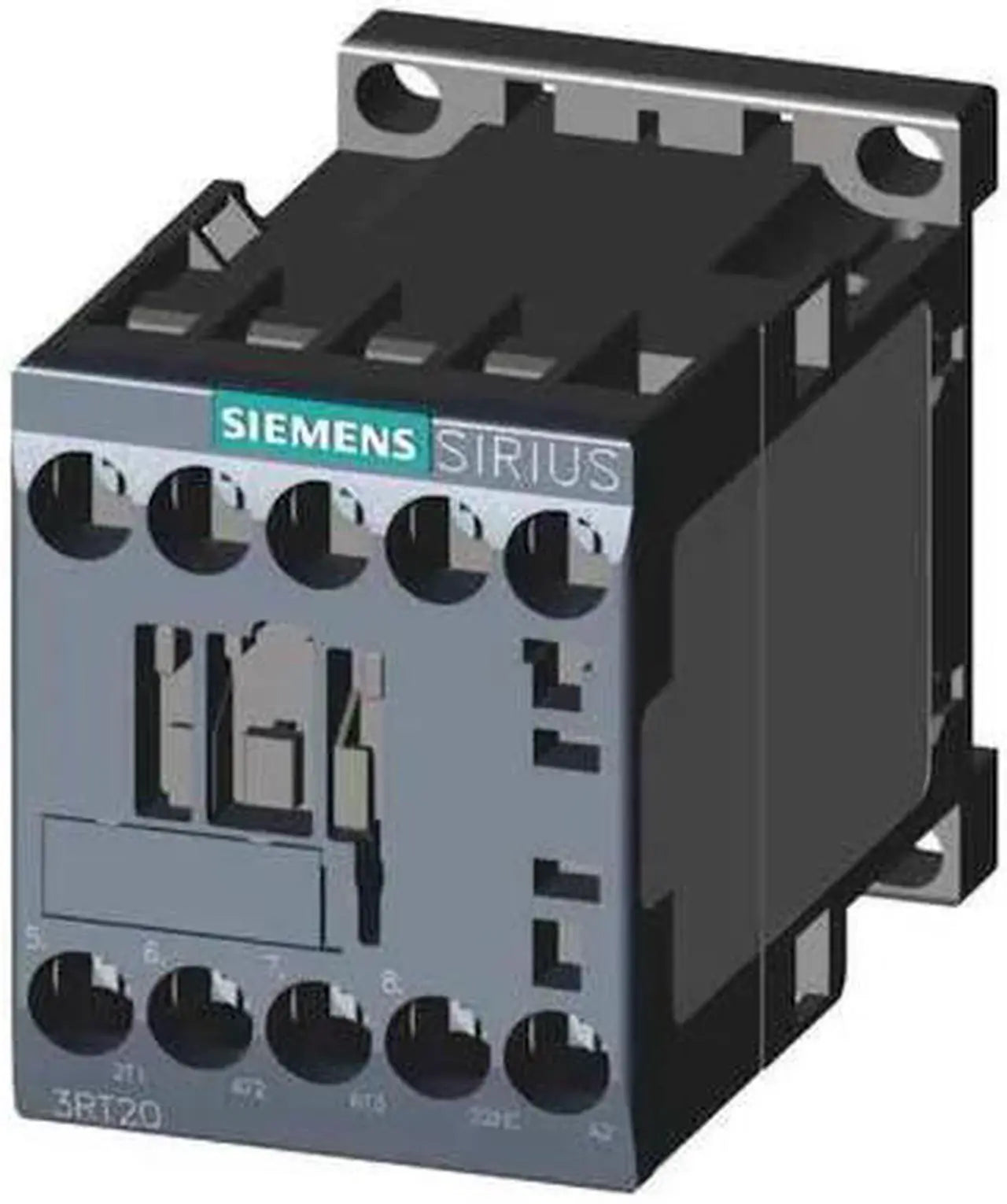

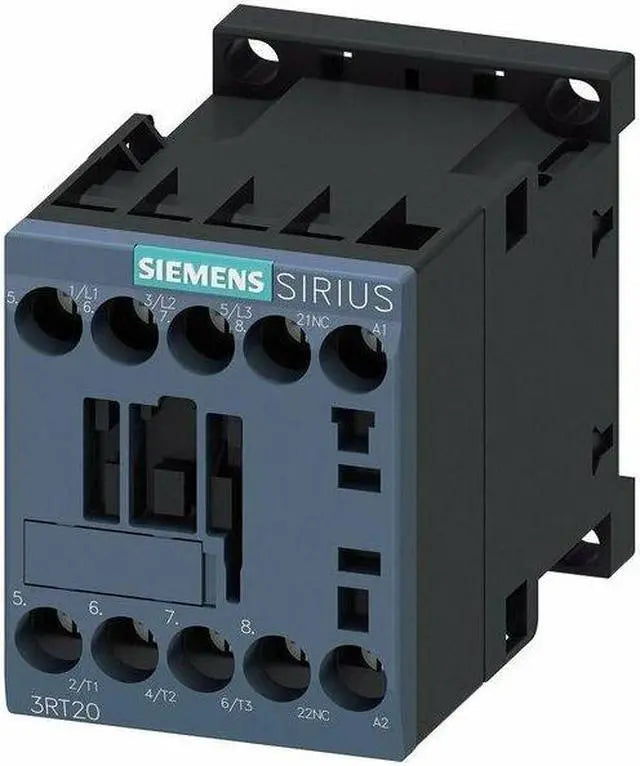

Siemens 3RT20151AB02 Contactor, AC-3, 3Kw/400V, 1NC, AC 24V, 50/60 Hz, 3-Pole, Sz S00 Screw Terminal

Product Description

The SIEMENS 3RT20151AB02 is a contactor suitable for various applications, including load feeders and installation in low-voltage distribution boards. This IEC magnetic contactor features a 24V AC coil and one NC auxiliary contact. It is designed for switching motors and provides reliable contact and a long service life, even in extreme ambient conditions.

• IEC Magnetic contactor- non-reversing
• 7 full load amps-inductive
• 1NC auxiliary contact

Product Highlights

The SIEMENS 3RT20151AB02 contactor ensures high contact reliability and long service life, even in extreme conditions.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT20151AB02
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Number Of Poles: 3
• Number of Items: 1
• Voltage: 24 Volts
• Category: Relays
• Contactors (Electromechanical): Contactors (Electromechanical)
• Switching Voltage: 690VAC - Max
• Manufacturer: Siemens
• Features: Auxiliary Contacts
• Series: SIRIUS
• Termination Style: Screw Terminal
• Operating Temperature: -25 C ~ 60 C
• Part Status: Active
• Must Operate Voltage: 20.4 VAC
• Operate Time: 35 ms
• Coil Voltage: 24VAC
• Release Time: 14 ms
• Contact Form: 3PST-NO (3 Form A)
• Coil Power: 27VA
• Contact Rating (Current): 7 A
• Base Product Number: 3RT2015
• Maximum Operating Temperature: 140
• Minimum Operating Temperature: -13
• Temperature Operating Range: -25 to 60 C
• Voltage Rating: 24 V
• Terminal Type: Screw Terminal
• Power Rating: 3 kW W
• Primary Type: IEC Contactor
• Type: General Purpose Contactors
• Size: S00 in
• Standards: REACH Art 33; WEEE (2012/19/EU)
• Termination: screw
• Horsepower Rating: 25 hp
• Control Voltage: 24 V
• Contact Current Rating: 7 A
• Poles/contacts: 3 poles; 3 normally open main contacts
• Auxiliary contact: 1 NC (Includes auxiliary contacts: Yes)
• Reversing: Non-Reversing
• Frame/Series: SIRIUS 3RT20; Frame Size: S00
• Mounting: DIN Rail, Surface; Mounting Position: Vertical
• Electrical connection: Screws
• Enclosure/IP: IP20; No Enclosure
• Maximum voltage: 690V AC; Frequency: 50/60 Hz
• Operating temperature: -13 F to 140 F
• Phase: Three
• Manufacturer Part Number: 3RT20151AB02
• Contactor Style: IEC
• Reversing Capability: Non-Reversing
• Main Power Pole Contact Form: 3NO
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NC
• Full Load Current - Inductive: 7
• Full Load Current - Resistive: 18
• Nominal Coil Voltage @ 60Hz: 24V
• Integrated Surge Suppression: No
• NEMA Enclosure Rating: No
• Overall Height: 2.4
• Overall Width: 1.95
• Overall Depth: 3.25
• Mounting Postion: Vertical
• Mechanical Operating Durability: 30,000,000
