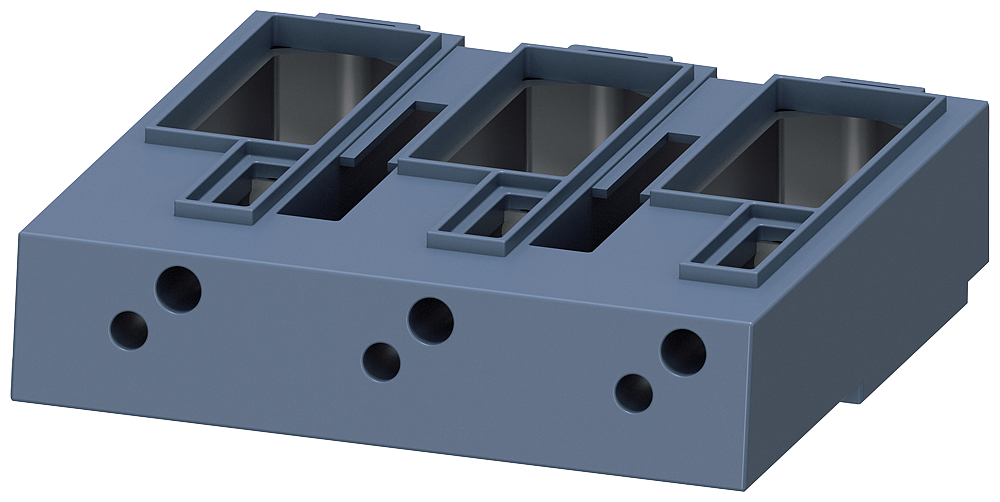

Siemens 3RT1966-4G Box Terminal Block For Use With Size S10/S12 3RT106/3RT107 Contactors, 3RB106 Overload Relays

Product Description

The SIEMENS 3RT1966-4G is a box terminal block designed for use with Size S10/S12 3RT106/3RT107 contactors and 3RB106 overload relays. It provides a 240 sq-mm connection and is suitable for round and ribbon cables. The terminal block is RoHS compliant and has an enclosure rating of NEMA 4/5/6.

• Up to 240 sq-mm (with auxiliary conductor connection)
• RoHS Compliant
• NEMA 4/5/6

Product Highlights

Terminal block for use with contactors and overload relays, providing a secure and compliant connection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1966-4G
• Country of Origin: DE

Technical Specifications

• Alternate Catalog Number: 3RT1966-4G
• Brand: Siemens
• Catalog Number: 3RT1966-4G
• Country of Origin: DE
• EU RoHS Indicator: C
• Harmonization Tariff Schedule Code: 8536904000
• Specifications: 240 sq-mm Connection
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA CertifiedEAC CertifiedABS/GL/RMRS ApprovedUL Listed
• Suitable For Use With: Size S10/S12 3RT106/3RT107 Contactors, 3RB106 Overload Relays
• UNSPSC: 39121521
• UPC 11: 75455476678
• UPC 12: 754554766782
• Used On: S10/S12 IEC Contactor, 3RB2966 Overload Relay
• Wire Size: 2/0 AWG to 600KCMIL
• Application: Round and Ribbon Cable
• Features: RoHS Compliant
• Accessory Type: Box Terminal Block
• Series: SIRIUS 3RT1
• For Use With/Related Products: 3RB2, 3RT1 Contactors
• Packaging: Bulk
• Base Product Number: 3RT1966
• Manufacturer Part Number: 3RT1966-4G
• Primary Type: Terminal Block
• 3RT Series: Terminal Block
• Part Number: 3RT1966-4G
