Siemens 3RT1955-4G Contactor Box Terminal Block

Product Description

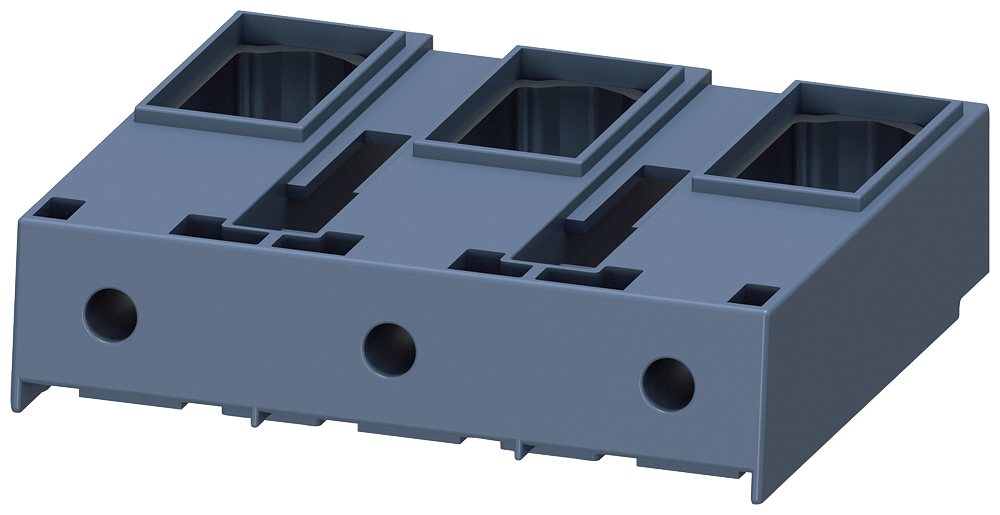

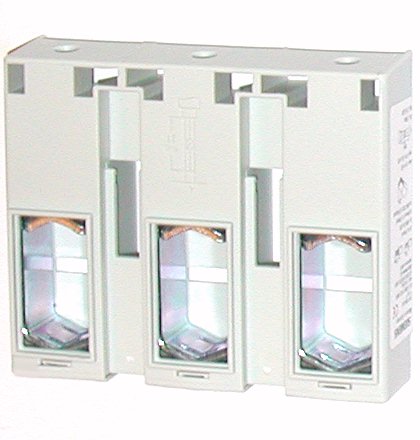

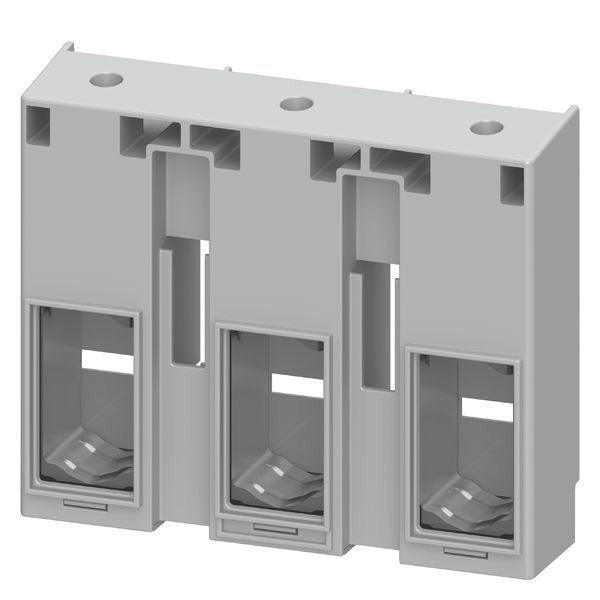

The SIEMENS 3RT1955-4G is a box terminal block designed for contactors 3RT1054 and 3RT1055, size S6. It allows for a maximum connection of approximately 70 mm2 and is also suitable for use with 3RB105 overload relays. This terminal block facilitates secure and efficient electrical connections.

• Suitable for use with size S6 3RT1054 contactors and 3RB105 overload relays
• Maximum connection size of approximately 70 mm2
• Designed for use with contactors 3RT1054 & 3RT1055

Product Highlights

The SIEMENS 3RT1955-4G box terminal block ensures reliable connections for contactors and overload relays, enhancing electrical system performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1955-4G
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Width: 3.350 in
• Height: 1.11 Inch
• Length: 4.02 Inch
• Accessory Type: Terminal Block
• For Use With: 3RT1054 Contactor
• Manufacturer Part Number: 3RT1955-4G
• Primary Type: Terminal Block
• Series: 3RT Series
• Size: S6 in
• Type: Terminal Block
• UPC Code: 040892568097
• Catalog ID: SIE3RT19554G
• Specifications: 70 sq-mm Connection
• Suitable For Use With: Size S6 3RT1054 Contactors, 3RB105 Overload Relay
• Standard & Approvals: CE Certified, EAC Certified, ABS/GL/RMRS Approved, UL Listed
