Siemens 3RT1456-6AP36 Contactor Res S6 275A 220-240Vuc 3P Bar

Product Description

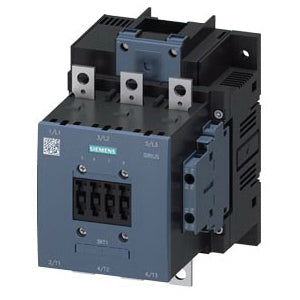

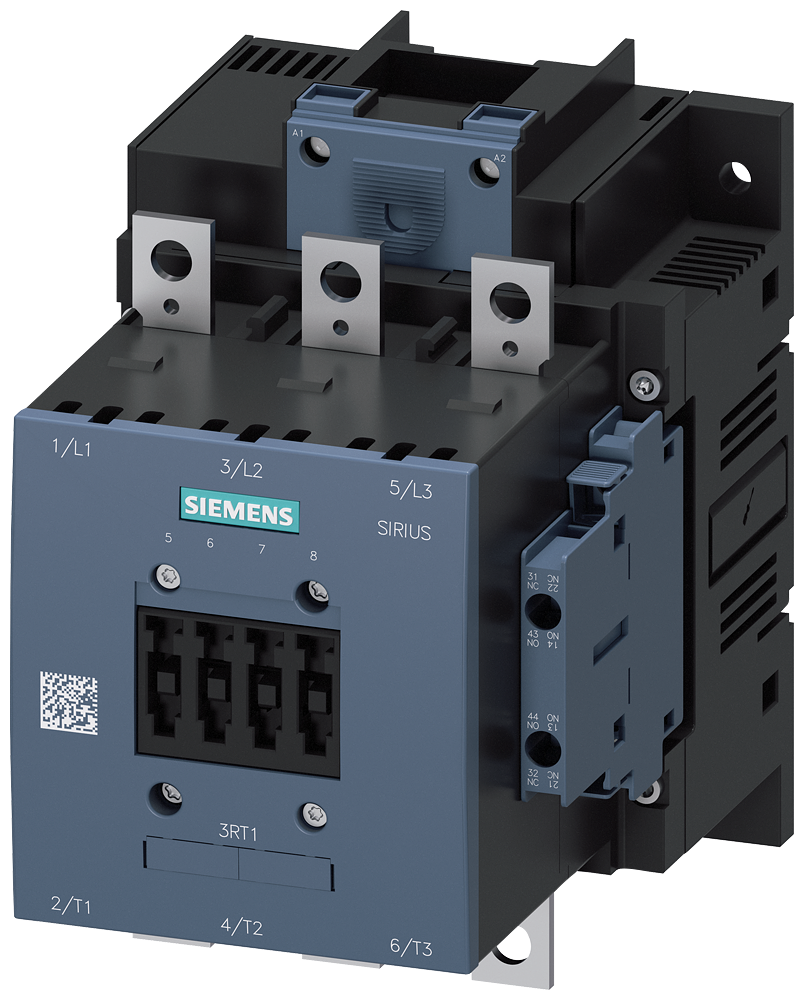

The SIEMENS 3RT1456-6AP36 is a Sirius 3 Pole Resistive contactor. This 3-pole, non-reversing contactor features a 220 - 240 AC/DC coil and a frame size of S6. It includes 2 NO and 2 NC auxiliaries and is designed for panel mounting. Lugs are not included.

• Switches resistive loads AC-1 applications
• Magnet coil at AC: 300 VA at 50 Hz (pick-up), 5.8 VA at 50 Hz (holding)
• Power factor: 0.9 at 50 Hz (closing), 0.8 at 50 Hz (holding)

Product Highlights

The SIEMENS 3RT1456-6AP36 contactor is ideal for various industrial applications requiring reliable switching of resistive loads.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RT1456-6AP36
• Country of Origin: China

Technical Specifications

• Alternate Mfr Part Number: 3RT1456-6AP36
• Brand: SIEMENS
• Contact Current Rating: 275 A
• Control Voltage: 220-240 V
• Manufacturer Part Number: 3RT1456-6AP36
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Series: 3RT Series
• Type: General Purpose Contactors
• Part Number: 3RT1456-6AP36
• Coil Power Rating: 5.8/300 VA, 5.2/360 W
• Coil Voltage: 110 to 127 V AC/DC, 220 to 240 V AC/DC
• Maximum Load Current: 275 A
• Frequency: 50/60 Hz
• Contact Configuration: 2NO-2NC
• Auxiliary Contacts: 4
• Power Factor: 0.8/0.9
• Size: S6
• Terminal Type: Busbar Terminal
• Enclosure: IP00/IP20
• Operating Cycles: 10000000
• Operating Temperature: -25 to 60 deg C
• Mounting: Threaded Mounting
• Alternate Catalog Number: 3RT1456-6AP36
• Frequency Rating: 50/60 Hz
• Height: 7.1300 in
• Length: 5.0800 in
• Manufacturer: Siemens
• Number of Auxiliary Contacts: 4
• Number Of Poles: 3
• Standards: RoHS CompliantREACH Article 33CCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedRMRS ApprovedDNV-GL Approved
• Width: 7.4900 in
