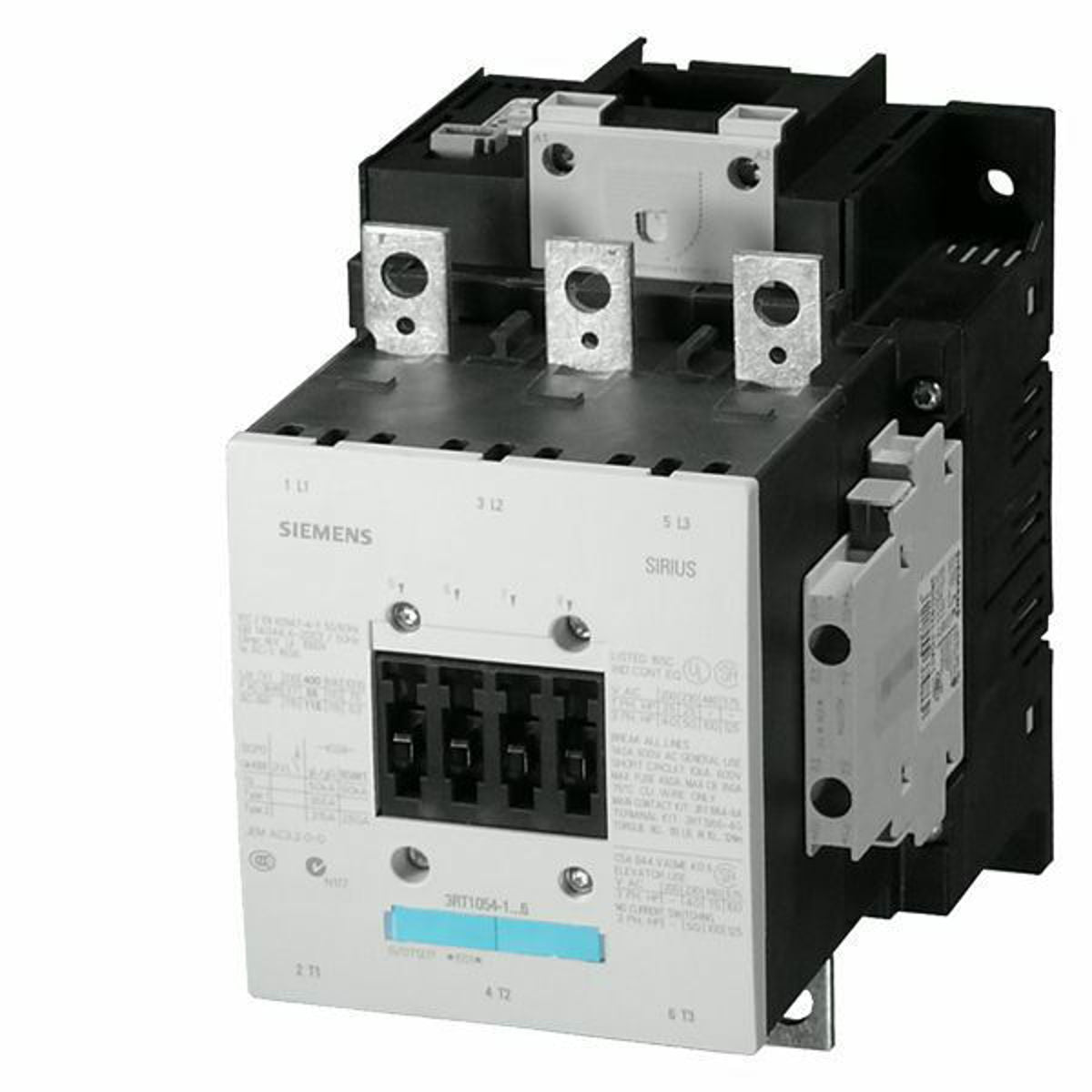

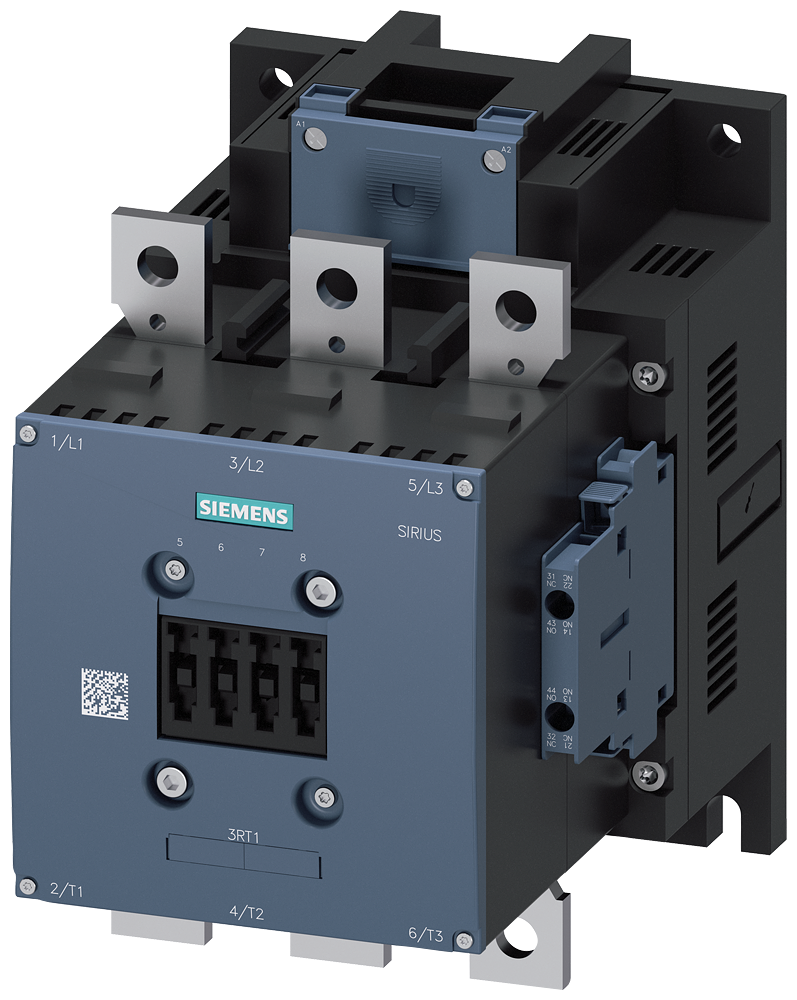

Siemens 3RT1064-6AF36 110 to 127 Volt 225 Amp 3-Phase 3-Pole Contactor

Product Description

The Siemens 3RT1064-6AF36 is an industrial contactor designed for high-performance tasks. Operating at 110 to 127 volts with a capacity of 225 amps, this 3-phase, 3-pole contactor is ideal for switching motors in demanding applications.

• 225 Amp capacity for heavy-duty loads
• Operational voltage range of 110 to 127 volts
• Robust construction for reliable performance

Product Highlights

This contactor features a S10 frame size and is suitable for panel mounting. It does not include suppression lugs and operates with screw-type terminals for secure connections.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens
• UPC: 754554771090
• Country of Origin: Germany
• Sub Brand: SIRIUS

Technical Specifications

• Catalog Number: 3RT1064-6AF36
• Type: 3RT10 power contactor
• Width: 7.800 inches
• Height: 9.5 inches
• Length: 10.85 inches
• Weight: 14.295 pounds
• Application: Contactors for switching motors
• Power Rating: 110.324 kW
• Connection Type: Screw-type terminals
• Contact Rating: A600 / Q600
• Number of Phases: 3
• Operating Temperature: 60 to -25 degrees C
• Mounting: Screw
• Special Features: Spring loaded or screw terminals
